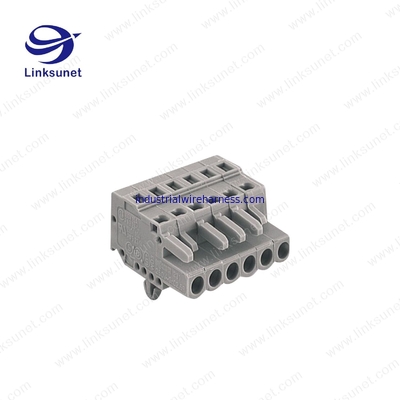

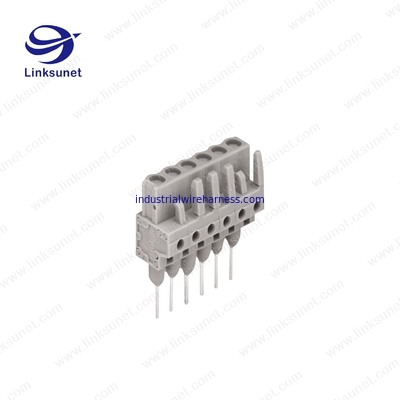

TYCO/AMP/TE Universal MATE-N-LOK Series Engine Wiring Harness For Industrial driving / MATIEL PA
Item no . |
231 - 123 / 037 - 000 |
GTIN / EAN |
4044918343169 |
Content |
1 piece |
Order unit |
piece |
Order quantity |
piece |
Increase in order quantity |
( 10 , 20 , 30 , 40 , . . . ) |
Customer item no. |
|
Customs Tariff no . |
85366990990 |
Customs duty for the country of origin |
DE |
Available |
- |
List price |
On request |
Net price |
On request |
Availability |
On request |
Description | |||

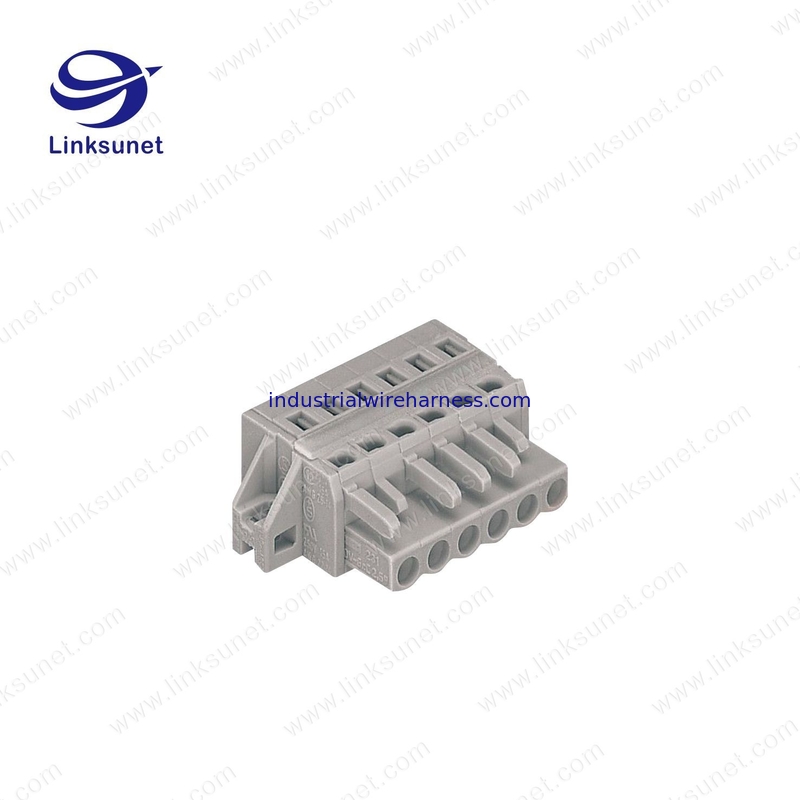

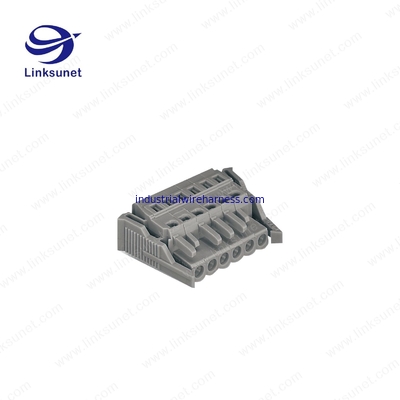

Female connector ; with locking levers ; 23 - pole ; Pin spacing 5 mm / 0.197 in ; codable ; with 2 locking latches ; with coding finger ; with latch | |||
Remarks | |||
Item description : Universal connection for all conductor types Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP® actuation Integrated test ports Coding option available |
Item properties | ||
Miscellaneous | ||
Name | Value | Unit |
Packaging type | BOX | |
Ratings per | IEC/EN 60664 - 1 | |
Rated voltage ( III / 3 ) [ V ] | 320 | V |
Rated impulse voltage ( III / 3 ) [ kV ] | 4 | kV |
Rated voltage ( III / 2 ) [ V ] | 320 | V |
Rated impulse voltage ( III / 2 ) [ kV ] | 4 | kV |
Rated voltage ( II / 2 ) [ V ] | 630 | V |
Rated impulse voltage ( II / 2 ) [ kV ] | 4 | kV |
Rated current [ A ] | 16 | A |
Legend ( ratings ) | ( III / 2 ) ≙Overvoltage category III / Pollution degree 2 | |
Approvals per | UL 1059 | |
Rated voltage UL ( Use Group B ) [ V ] | 300 | V |
Rated current UL ( Use Group B ) [ A ] | 15 | A |
Rated voltage UL ( Use Group D ) [ V ] | 300 | V |
Rated current UL ( Use Group D ) [ A ] | 10 | A |
Rated voltage CSA ( Use Group B ) [ V ] | 300 | V |
Rated current CSA ( Use Group B ) [ A ] | 15 | A |
Rated voltage CSA ( Use Group D ) [ V ] | 300 | V |
Rated current CSA ( Use Group D ) [ A ] | 10 | A |
No . of poles | 23 | |
Total number of connection points | 23 | |
Total number of potentials | 23 | |
Number of connection types | 1 | |
Number of levels | 1 | |
Connection technology | CAGE CLAMP ® | |
Number of connection points ( connection type ) | 1 | |
Actuation type | Operating tool | |
Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG | |
Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG | |
Fine-stranded conductor with ferrule with plastic collar | 0.25 … 1.5 mm² / … | |
Fine-stranded conductor with ferrule without plastic collar | 0.25 … 2.5 mm² / … | |
Strip length | 8 … 9 mm / 0.31 … 0.35 Inch | |
Pin spacing | 5 mm ( 0.197 in ) | |
Width | 131.6 mm / 5.181 Inch | |
Height | 14.3 mm / 0.563 Inch | |
Depth | 29.6 mm / 1.165 Inch | |
Contact type ( pluggable connector ) | Female connector / socket | |
Connector connection type | for conductors | |
Mismating protection | nein | |
Locking of plug - in connection | locking lever | |
Color | gray | |
Material group | I | |
Insulating material | Polyamide 66 ( PA 66 ) | |
Flammability class per UL94 | V0 | |
Clamping spring material | Chrome nickel spring steel ( CrNi ) | |
Contact material | Copper alloy | |
Contact plating | tin - plated | |
Fire load [ MJ ] | 0.605 | MJ |
Weight [ g ] | 41.687 | g |
Limit temperature range | - 60 … 85 °C |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
