| Place of Origin: | CHINA |
| Brand Name: | Customized |
| Certification: | UL/ROHS |
| Model Number: | Cha |
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | USD30-1000/PCS |
| Packaging Details: | CARTON OR WOOD BOX |
| Supply Ability: | 1000PCS/D |
| Material: | PVC | COLOR: | BK |
|---|---|---|---|
| Length: | Customized | Housing: | JST -XH-10 |
| Highlight: | soldering automotive wire,9 pin wiring harness |
||

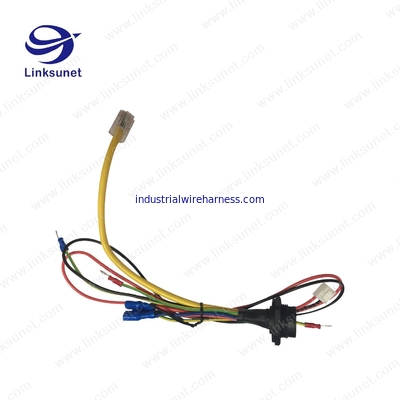

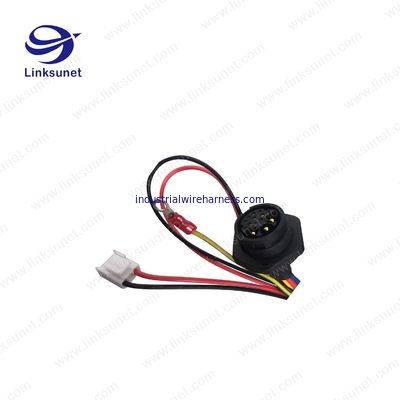

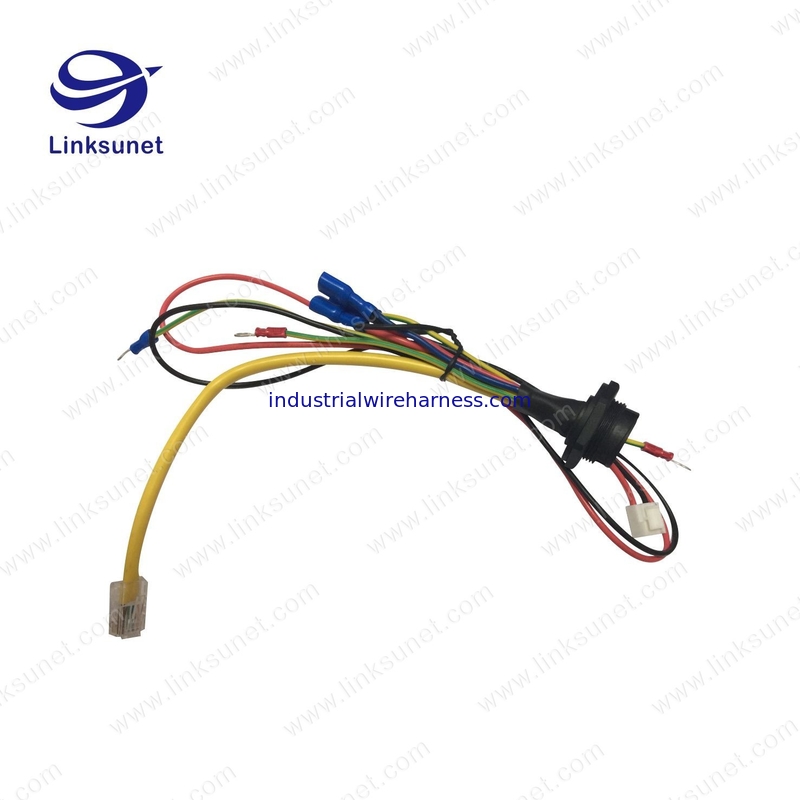

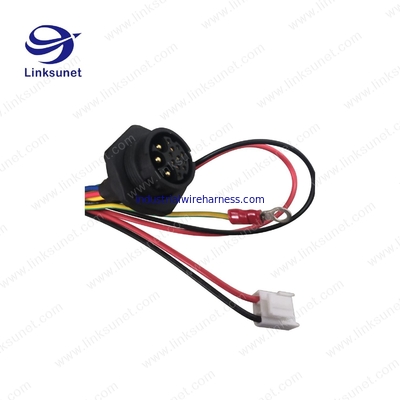

LED Connector Front Panel Mount lock bayonet type , solder add JST VHR-8N Soldering Wiring Harness / PVC / BK
Specifictations
| Number of Contacts | 2 | 3 | 3 | 9 | 18 | 24 | 3+9 | 3+11 |
| Wire Gauge | 4.0mm 2 ( 12AWG ) | 8.4mm2 ( 8AWG ) | 0.75mm2 ( 18AWG ) |
0.3mm2 ( 22AWG ) |
2.5mm2 + 0.2mm2 ( 12AWG + 24AWG ) | |||
| Panel Thickness | Max . 5.0mm | Max . 2.2mm | ||||||
| Environmental Protection | IP67 | |||||||
| Mechanical Life | 500 mating cycles | |||||||
| Operating Temperature | - 45 ℃ ~ 105 ℃ | |||||||
| Voltage Rating | 300V | 300V | 300V | 125V | 125V | 300V | 300V | |
| Rated Current ( 40 ℃ ) | 20A | 20A | 50A | 5A | 5A | 20A + 5A | 20A + 5A | |
TVR / VF
Ring Terminals
Electrolytic copper
Tin plated
Easy entry
P.V.C.insulation
NO:E185793(N)Series VF1.25 VF5.5
| PART NO | TYPE | WIRE RANGE | Ø D | H | F | B | Ø d2 | L | COLOR | Maximum current | Crimping Tools | |
| AWG / MCM | mm2 | |||||||||||
| 00101 | 0.75 - 3 | 22 - 16 | 0.2 - 1.0 | 3.5 | 9.6 | 4.3 | 5.5 | 3.2 | 16.5 | RED | 10A | YYT - 1 YYT - 7 2026NJ |
| 00102 | 0.75 - 4 | 6.6 | 8 | 4.3 | 20.2 | |||||||
| 00103 | 0.75 - 5 | 6.6 | 8 | 5.3 | 20 | |||||||
| 00104 | 1.25 - 3S | 22 - 16 | 0.5 - 1.6 | 4 | 10.6 | 4.3 | 5.5 | 3.2 | 17.7 | 19A | ||
| 00105 | 1.25 - 3 | 4.3 | 5.5 | 3.7 | 17.7 | |||||||
| 00106 | 1.25 - 3M1 | 6.6 | 6.6 | 3.2 | 20.5 | |||||||
| 00107 | 1.25 - 3M | 6.6 | 6.6 | 3.7 | 20.5 | |||||||
| 00108 | 1.25 - 4 | 7.3 | 8 | 4.3 | 21.9 | |||||||
| 00109 | 1.25 - 4M | 6.6 | 6.6 | 4.3 | 20.5 | |||||||
| 00110 | 1.25 - 5 | 7.3 | 8 | 5.3 | 21.9 | |||||||
| 00111 | 1.25 - 6 | 11.4 | 11.6 | 6.4 | 27.8 | |||||||
| 00112 | 1.25 - 8 | 11.4 | 11.6 | 8.4 | 27.8 | BLUE | 27A | |||||
| 00113 | 2 - 3 | 16 - 14 | 1.0 - 2.6 | 4.7 | 10.7 | 7.7 | 8.5 | 3.2 | 22.7 | |||
| 00114 | 2 - 3M | 6.3 | 6.6 | 3.7 | 20.3 | |||||||
| 00115 | 2 - 4 | 7.7 | 8.5 | 4.3 | 22.7 | |||||||
| 00116 | 2 - 4M | 6.3 | 6.6 | 4.3 | 20.3 | |||||||
| 00117 | 2 - 5 | 7.2 | 9.5 | 5.3 | 22.7 | |||||||
| 00118 | 2 - 6 | 11 | 12 | 6.4 | 27.7 | |||||||
| 00119 | 2 - 8 | 11 | 12 | 8.4 | 27.7 | |||||||
| 00120 | 2 - 10 | 13.9 | 13.6 | 10.5 | 31.4 | |||||||
| 00121 | 3.5 - 4 | 12 - 10 | 2.6 - 4.6 | 5.8 | 13.5 | 8.2 | 9.5 | 4.3 | 26.5 | YELLOW | 37A | |
| 00122 | 3.5 - 5 | 8.2 | 9.5 | 5.3 | 26.5 | |||||||
| 00123 | 3.5 - 6 | 8.5 | 12 | 6.4 | 28 | |||||||
| 00124 | 5.5 - 3 | 12 - 10 | 4.6 - 6.6 | 6.2 | 13.6 | 8.2 | 9.5 | 3.7 | 26.6 | 48A | ||
| 00125 | 5.5 - 4 | 8.2 | 9.5 | 4.3 | 26.6 | |||||||
| 00126 | 5.5 - 5 | 8.2 | 9.5 | 5.3 | 26.6 | |||||||
| 00127 | 5.5 - 6 | 13 | 12 | 6.4 | 32.6 | |||||||
| 00128 | 5.5 - 8 | 13.7 | 15 | 8.4 | 34.8 | |||||||
| 00129 | 5.5 - 10 | 13.7 | 15 | 10.5 | 34.8 |
|||||||
JST XAP
| Image | Manufacturer Part Number | Description | Connector Type | Contact Type | Number of Positions | Pitch | RoHS |
 |
XAP - 02V - 1 | CONN HOUSING XA 2POS 2.5MM | Receptacle | Female Socket | 2 | 0.098 " ( 2.50mm ) | |
|
XAP - 03V - 1 | CONN XA HOUSING 3 POS 2.5MM | Receptacle | Female Socket | 3 | 0.098 " ( 2.50mm ) | |
|
XAP - 05V - 1 | CONN XA HOUSING 5 POS 2.5MM | Receptacle | Female Socket | 5 | 0.098 " ( 2.50mm ) | |
|
XAP - 04V - 1 | XA CONN DISCON CRIMP STYLE 4POS | Receptacle | Female Socket | 4 | 0.098 " ( 2.50mm ) | |
|
XAP - 07V - 1 | CONN XA HOUSING 7 POS 2.5MM | Receptacle | Female Socket | 7 | 0.098 " ( 2.50mm ) | |
|
XAP - 08V - 1 | CONN XA HOUSING 8 POS 2.5MM | Receptacle | Female Socket | 8 | 0.098 " ( 2.50mm) | |
|
XAP - 09V - 1 | CONN XA HOUSING 9 POS 2.5MM | Receptacle | Female Socket | 9 | 0.098 " ( 2.50mm ) | |
|
XAP - 10V - 1 | CONN XA HOUSING 10 POS 2.5MM | Receptacle | Female Socket | 10 | 0.098 " ( 2.50mm ) | |
|
XAP - 12V - 1 | CONN XA HOUSING 12 POS 2.5MM | Receptacle | Female Socket | 12 | 0.098 " ( 2.50mm ) | |
|
XAP - 13V - 1 | CONN XA HOUSING 13 POS 2.5MM | Receptacle | Female Socket | 13 | 0.098 " ( 2.50mm ) | |
|
XAP - 11V - 1 | CONN XA HOUSING 11 POS 2.5MM | Receptacle | Female Socket | 11 | 0.098 " ( 2.50mm ) | |
|
XAP - 06V - 1 | CONN XA HOUSING 6 POS 2.5MM | Receptacle | Female Socket | 6 | 0.098 " ( 2.50mm ) | |
|
XAP - 14V - 1 | CONN XA HOUSING 14 POS 2.5MM | Receptacle | Female Socket | 14 | 0.098 " ( 2.50mm ) | |
UL standard internal wiring
UL1007 Hook-up Wire
UL1015 Hook-up Wire
UL1061 Hook-up Wire
UL1185 Single Conductor Shielded Cable
UL1316 Reinforced Hook-up Wire
UL1330 FEP Insulated Wire
UL1430 Crosslinked PVC Insulated Wire
UL1452 Reinforced Hook-up Wire
UL1533 Single Conductor Shielded Cable
UL1569 Hook-up Wire
UL1571 Hook-up Wire
UL1672 Reinforced Hook-up Wire
UL10064 FEP Insulated Wire
UL10086 High Temperature Resistant Hook-up Wire
UL10097 Crosslinked PVC Insulated Wire
UL10272 Hook-up Wire
UL10308 High Temperature Resistant Hook-up Wire
UL2464 Multi-Conductor Shielded Cable
UL2468 Flat Ribbon Wire
UL2509 Multi-Conductor Cable
UL2517 Multi-Conductor Shielded Cable
UL2547 Multi-Conductor Shielded Cable
UL2552 Multi-Conductor Shielded Cable
UL2576 Multi-Conductor Cable
UL2586 Multi-Conductor Cable
UL2651 Flat Ribbon Wire
UL2725 Multi-Conductor Shielded Cable
UL2835 Multi-Conductor Shielded Cable
UL2854 Multi-Conductor Shielded Cable
UL2919 Low Voltage Multi-Conductor Shielded Cable
UL20276 Multi-Conductor Shielded Cable
UL20379 Multi-Conductor Shielded Cable
UL21149 Multi-Conductor Shielded Cable
UL21520 Multi-Conductor Cable
UL3443 Hook-up Wire
UL halogen-free wire
UL11027 Hook-up Wire
UL10983 Single Conductor Shielded Cable
UL10982 Hook-up Wire
UL10981 Hook-up Wire
UL10984 Reinforced Hook-up Wire
UL10986 Single Conductor Shielded Cable
UL10987 Hook-up Wire
UL11025 Hook-up Wire
UL11028 Hook-up Wire
UL11029 Hook-up Wire
UL11045 Reinforced Hook-up Wire
UL11047 Reinforced Hook-up Wire
UL21451 Double Shielded Cable
UL21452 Double Shielded Cable
UL21455 Multi-Conductor Shielded Cable
UL21456 Multi-Conductor Shielded Cable
UL21457 Multi-Conductor Shielded Cable
UL21458 Flat Ribbon Wire
UL21461 Multi-Conductor Shielded Cable
UL21474 Multi-Conductor Shielded Cable
UL21476 Multi-Conductor Shielded Cable
UL21515 Flat Ribbon Wire
UL21517 Multi-Conductor Shielded Flat Ribbon Wiree
Industrial electric wire
Flexible Single Core Cable
Flexible Multi-core Torsion Cable
Flexible Multi-core Shielded/Non-Shielded Control Cable
VDE standard wire
LifY Single Core,extra fine wires with highest flexibility
LIYY-Command Cable (Style 2464/300 V, (80°C)
LIYY-TP-Command Cable-Twisted (Style 2464/300 V, (80°C)
LIYCY-Shielding Command Cable (Style 2464/300 V, (80°C)
LIYCY-TP-Shielding Command Cable-Twisted (Style 2464/300 V, (80°C)
Automotive wire
FLRY-A Automotive Wire Series
FLRY-B Automotive Wire Series
FLRYW Automotive Wire Series
TWP Automotive Wire Series
TXL Automotive Wire Series
GXL Automotive Wire Series
AVS Automotive Wire Series
AVSS Automotive Wire Series
Export cartons
(406mm*306mm*250mm)
|
|
|
|
|
|
