| Place of Origin: | CHINA |
| Brand Name: | LINKSUNET |
| Certification: | UL |
| Model Number: | CHA |
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | BOX |
| Delivery Time: | 2D |
| Supply Ability: | 1000000 PCS/D |
| COLOR: | BK | LEGHT: | Customizable |
|---|---|---|---|
| Material: | Polyester | ||
| High Light: | usb connector housing,heat shrink cable sleeve |
||

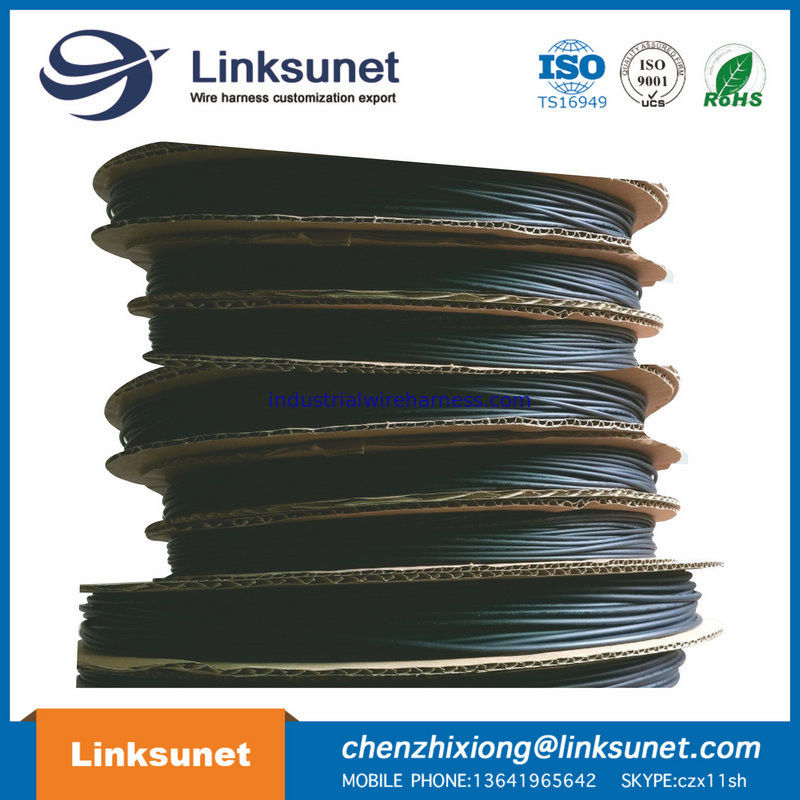

Black Polyolefin heat shrinkable sleeve 6mm--180mm length Customizable Plastic Injection Molding / Material Polyolefin
| Casing diameter : | 6mm--180mm |
| Color : | Black |
| Casing type : | heat shrinkable |
| Lined with adhesive : | Yes |
| Contraction ratio : | 2:1 |
| Casing length : | 1.2 m |
| Material : | Polyolefin |
| Minimum operating temperature : |
- 30℃ |
|
Maximum operating temperature : |
+ 80 ℃ |
| Flame retardant : | Yes |
| Dielectric strength : | 12kV/mm |
| 2 : 1 Metric specification for shrink sleeve | |||
| Specifications | Before contraction( mm ) | Scope of application | |
| internal diameter ( d ) | wall thickness ( t ) | ( mm ) | |
| Φ 0.6 | 0.9 ± 0.2 | 0.16 ± 0.08 | 0.50 ~ 0.7 |
| Φ 0.8 | 1.0 ± 0.2 | 0.18 ± 0.08 | 0.60 ~ 0.8 |
| Φ 1.0 / 45 | 1.2 ± 0.2 | 0.20 ± 0.05 | 0.50 ~ 1.0 |
| Φ 1.0 / 60 | 1.3 ± 0.2 | 0.20 ± 0.05 | 0.50 ~ 1.0 |
| Φ 1.2 | 1.5 ± 0.2 | 0.22 ± 0.05 | 0.50 ~ 1.1 |
| Φ 1.5 | 2.0 ± 0.3 | 0.20 ± 0.08 | 0.95 ~ 1.4 |
| Φ 2.0 | 2.5 ± 0.3 | 0.22 ± 0.08 | 1.1 ~ 1.8 |
| Φ 2.5 | 3.0 ± 0.2 | 0.22 ± 0.08 | 1.4 ~ 2.3 |
| Φ 3.0 | 3.5 ± .04 | 0.25 ± 0.10 | 1.6 ~ 2.7 |
| Φ 3.5 | 4.0 ± 0.4 | 0.25 ± 0.10 | 1.9 ~ 3.2 |
| Φ 4.0 | 4.5 ± 0.4 | 0.25 ± 0.10 | 2.1 ~ 3.6 |
| Φ 4.5 | 5.0 ± 0.4 | 0.25 ± 0.10 | 2.4 ~ 4.0 |
| Φ 5.0 | 5.5 ± 0.4 | 0.25 ± 0.10 | 2.6 ~ 4.5 |
| Φ 6.0 | 6.5 ± 0.4 | 0.28 ± 0.12 | 2.85 ~ 5.0 |
| Φ 7.0 | 7.5 ± 0.4 | 0.30 ± 0.12 | 3.7 ~ 6.3 |
| Φ 8.0 | 8.5 ± 0.5 | 0.30 ± 0.12 | 4.2 ~ 7.2 |
| Φ 9.0 | 9.5 ± 0.5 | 0.30 ± 0.12 | 4.7 ~ 8.0 |
| Φ 10 | 10.5 ± 0.5 | 0.30 ± 0.12 | 5.2 ~ 9.0 |
| Φ 11 | 11.5 ± 0.5 | 0.30 ± 0.12 | 5.7 ~ 10 |
| Φ 12 | 12.5 ± 0.5 | 0.30 ± 0.12 | 6.2 ~ 11 |
| Φ 13 | 13.5 ± 0.5 | 0.36 ± 0.12 | 6.7 ~ 12 |
| Φ 14 | 14.5 ± 0.5 | 0.36 ± 0.12 | 7.3 ~ 13 |
| Φ 15 | 15.5 ± 0.5 | 0.36 ± 0.12 | 7.8 ~ 14 |
| Φ 16 | 16.5 ± 0.5 | 0.36 ± 0.12 | 8.3 ~ 15 |
| Φ 17 | 17.5 ± 0.5 | 0.36 ± 0.12 | 8.8 ~ 16 |
| Φ 18 | 19.0 ± 0.7 | 0.40 ± 0.15 | 9.3 ~ 17 |
| Φ 20 | 21.5 ± 0.7 | 0.40 ± 0.15 | 10.4 ~ 19 |
| Φ 22 | 23.5 ± 0.7 | 0.40 ± 0.15 | 11.4 ~ 21 |
| Φ 25 | 26.5 ± 0.7 | 0.40 ± 0.15 | 12.9 ~ 24 |
| Φ 28 | 29.0 ± 0.7 | 0.45 ± 0.20 | 14.4 ~ 27 |
| Φ 30 | 31.0 ± 0.7 | 0.45 ± 0.20 | 16.0 ~ 29 |
| Φ 35 | 31.0 ± 1.0 | 0.50 ± 0.22 | 18.0 ~ 34 |
| Φ 40 | 41.0 ± 1.0 | 0.55 ± 0.25 | 21.0 ~ 39 |
| Φ 45 | 46.0 ± 1.0 | 0.55 ± 0.25 | 23.5 ~ 44 |
| Φ 50 | 51.5 ± 1.0 | 0.60 ± 0.25 | 26.0 ~ 49 |
| Φ 60 | ≥ 60 | 0.60 ± 0.25 | 35.0 ~ 55 |
| Φ 70 | ≥ 70 | 0.70 ± 0.30 | 40.0 ~ 65 |
| Φ 80 | ≥ 80 | 0.70 ± 0.30 | 45.0 ~ 75 |
| Φ 90 | 90 | 0.70 ± 0.31 | 50.0 ~ 85 |
| Φ 100 | 100 | 0.70 ± 0.32 | 55.0 ~ 95 |
| Φ 120 | 120 | 0.70 ± 0.33 | 65.0 ~ 115 |
| Φ 150 | 150 | 0.90 ± 0.20 | 80.0 ~ 145 |
| Φ 180 | 180 | 0.95 ± 0.20 | 95.0 ~ 176 |
We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know
Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 3-7 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 3000pcs.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Product standards
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
