MOLEX Male Female Wire Connectors 70543 - 0004 SL Header , Single Row , Vertical , 2.54mm Pitch
Part Number : 70543-0004
2.54mm Pitch SL™ Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 5 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating

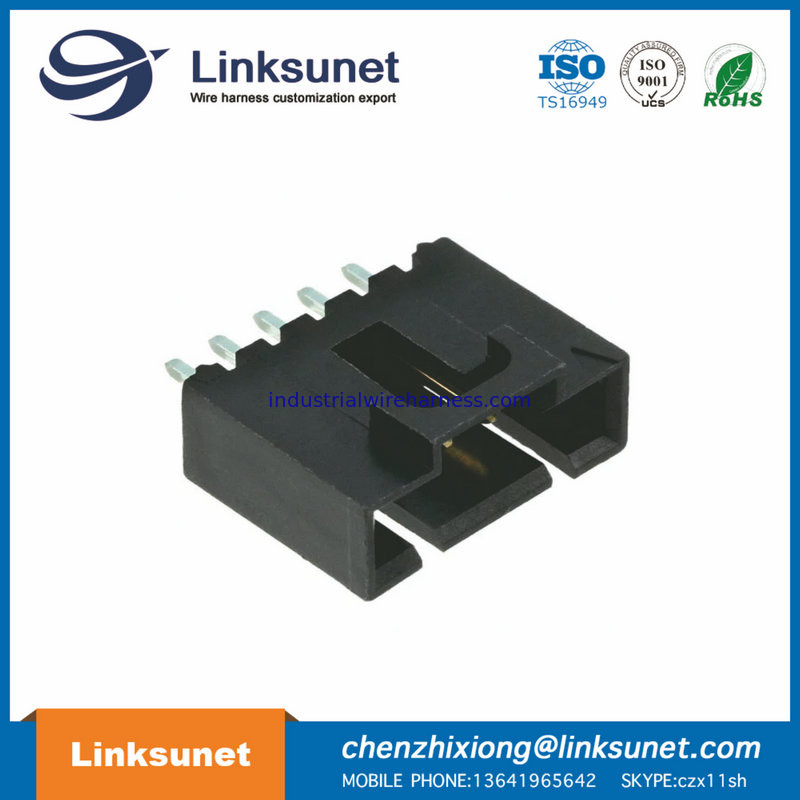

Series image - Reference only
Status : Active
Series : 70543
Category : PCB Headers
Overview : SL™ Modular Connectors
Engineering / Old PN : A - 70543 - 0004
Part Detail
General
|
Status |
Active |
|---|---|
|
Category |
PCB Headers |
|
Series |
70543 |
|
Application |
Signal , Wire - to - Board |
|
Overview |
SL™ Modular Connectors |
|
Product Name |
SL™ |
|
UPC |
800753597914 |
Physical
|
Breakaway |
No |
|---|---|
|
Circuits ( Loaded ) |
5 |
|
Circuits ( maximum ) |
5 |
|
Color - Resin |
Black |
|
Durability ( mating cycles max ) |
50 |
|
First Mate / Last Break |
No |
|
Flammability |
94V - 0 |
|
Glow - Wire Compliant |
No |
|
Guide to Mating Part |
No |
|
Keying to Mating Part |
None |
|
Lock to Mating Part |
Yes |
|
Material - Metal |
Brass , Phosphor Bronze |
|
Material - Plating Mating |
Gold |
|
Material - Plating Termination |
Tin |
|
Material - Resin |
High Temperature Thermoplastic |
|
Net Weight |
0.948 / g |
|
Number of Rows |
1 |
|
Orientation |
Vertical |
|
PC Tail Length |
3.30mm |
|
PCB Locator |
No |
|
PCB Retention |
None |
|
PCB Thickness - Recommended |
1.60mm |
|
Packaging Type |
Tube |
|
Pitch - Mating Interface |
2.54mm |
|
Pitch - Termination Interface |
2.54mm |
|
Plating min - Mating |
0.381µm |
|
Plating min - Termination |
1.905µm |
|
Polarized to Mating Part |
Yes |
|
Shrouded |
Fully |
|
Stackable |
No |
|
Surface Mount Compatible ( SMC ) |
No |
|
Temperature Range - Operating |
- 40 °C to + 105 °C |
|
Termination Interface : Style |
Through Hole |
Electrical
|
(Please review the Product Specification for specific details.) |
|
|---|---|
|
Current - Maximum per Contact |
3.0A |
|
Voltage - Maximum |
250V |
Agency Certification
|
Please find UL Certificates by searching the UL Database using the Molex Series Number . Click here to visit the UL Database |
|
|---|---|
|
CSA |
LR19980 |
|
UL |
E29179 |
Solder Process Data
|
Solderability Shelf Life Statement |
|
|---|---|
|
Duration at Max . Process Temperature ( seconds ) |
003 |
|
Lead-freeProcess Capability |
WAVE |
|
Max . Cycles at Max . Process Temperature |
001 |
|
Process Temperature max . C |
260 |
Material Info
|
Engineering Number |
A - 70543 - 0004 |
|---|
Reference - Drawing Numbers
|
Packaging Specification |
PK - 70873 - 0014 |
|---|---|
|
Product Specification |
PS - 70400 - 001 , PS - 70541 - 001 , TS - 70541 - 100 - 001 |
|
Sales Drawing |
SDA - 70543 - * * * * |
