MOLEX 09 - 93 - 0200 Crimp Terminal Housing , 3.96mm Pitch Male Female Wire Connectors

MOLEX 09 - 93 - 0200 Crimp Terminal Housing , 3.96mm Pitch Male Female Wire Connectors

MOLEX 09 - 93 - 0200 Crimp Terminal Housing , 3.96mm Pitch Male Female Wire Connectors

Product Details:

Place of Origin: JAPAN
Brand Name: MOLEX
Certification: ROHS
Model Number: 09 - 93 - 0200

Payment & Shipping Terms:

Minimum Order Quantity: 100set
Price: Negotiable
Packaging Details: Carton or Wood Box
Delivery Time: 3-15D
Payment Terms: T/T, MoneyGram, Western Union
Supply Ability: 50000SET/D
Contact Now
Detailed Product Description
Overview: KK® Interconnect System - Molex Color: Black
Category: Crimp Housings Application: Power, Wire - To - Board
Pitch: 3.96mm UL: E29179
High Light:

male and female connectors


male and female wire connectors

MOLEX 09 - 93 - 0200 Crimp Terminal Housing , 3.96mm Pitch Male Female Wire Connectors


Part Number: 09-93-0200

KK® 3.96mm Crimp Terminal Housing, Friction Ramp, 2 Circuits, Glow Wire Compatible

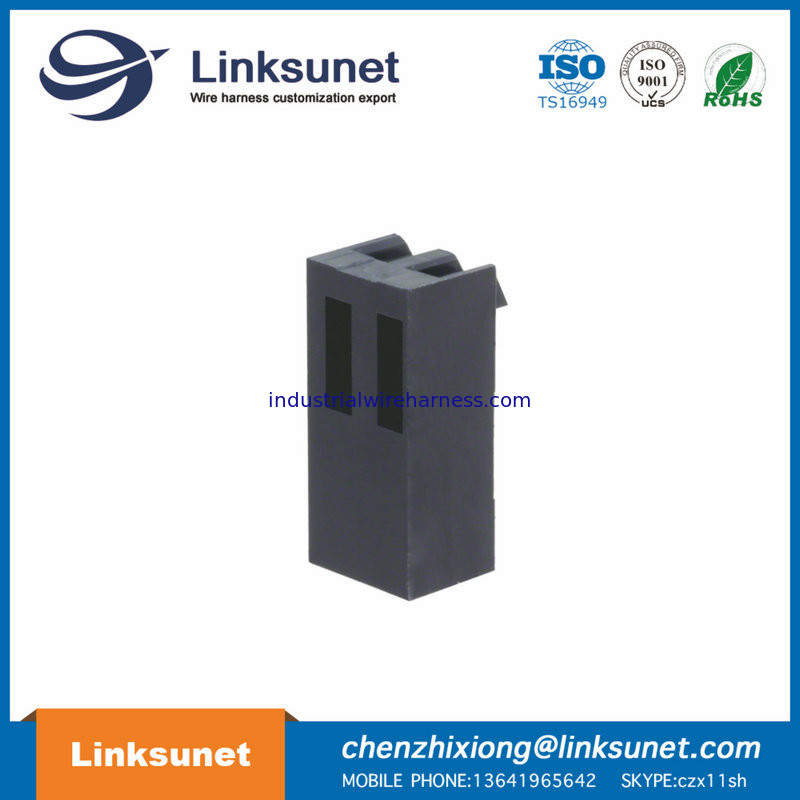

MOLEX 09 - 93 - 0200 Crimp Terminal Housing , 3.96mm Pitch Male Female Wire Connectors  Series image - Reference only


Status : Active


Series : 3069


Category : Crimp Housings


Overview : KK® Interconnect System - Molex


Engineering/Old PN : 3069-G02


Part Detail







Crimp Housings




Power , Wire - to - Board


This Molex product is manufactured from material that has the following ratings , tested by independent agencies :
a ) A Glow Wire Ignition Temperature ( GWIT ) of at least 775 deg C per IEC 60695 - 2 - 13 .
b ) A Glow Wire Flammability Index ( GWFI ) above 850 deg C per IEC 60695 - 2 - 12 . and hence complies with the requirements set out in the International Standard IEC 60335 - 1 5th edition - household and similar electrical appliances - safety ; section 30 Resistance to heat and fire .

The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end - product glow - wire flammability test standard IEC 60695 - 2 - 11 and any applicable product end-use standard ( s ) .

If it is determined during the customer ’ s evaluation of suitability , that higher performance is required , please contact Molex for possible product options .


KK ® Interconnect System - Molex

Product Name

KK ® 396






Circuits ( maximum )


Circuits Detail


Color - Resin



94V - 2



Glow - Wire Compliant


Lock to Mating Part


Material - Resin


Net Weight

0.561 / g

Number of Rows


Packaging Type


Panel Mount


Pitch - Mating Interface


Temperature Range - Operating

See Product Specification


Agency Certification


Please find UL Certificates by searching the UL Database using the Molex Series Number. Click here to visit the UL Database




Material Info


Engineering Number

3069 - G02


Reference - Drawing Numbers


Packaging Specification

PK - 3069 - 001 - 001

Product Specification

PS - 99020 - 0087 - 001

Sales Drawing

SD - 3069 - GN * * *


We can provide the service.
1: Quick response
2: Professional services
C:Harness molding-(PVC/PE/TPE/TPU and so on )
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know


Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.

Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
