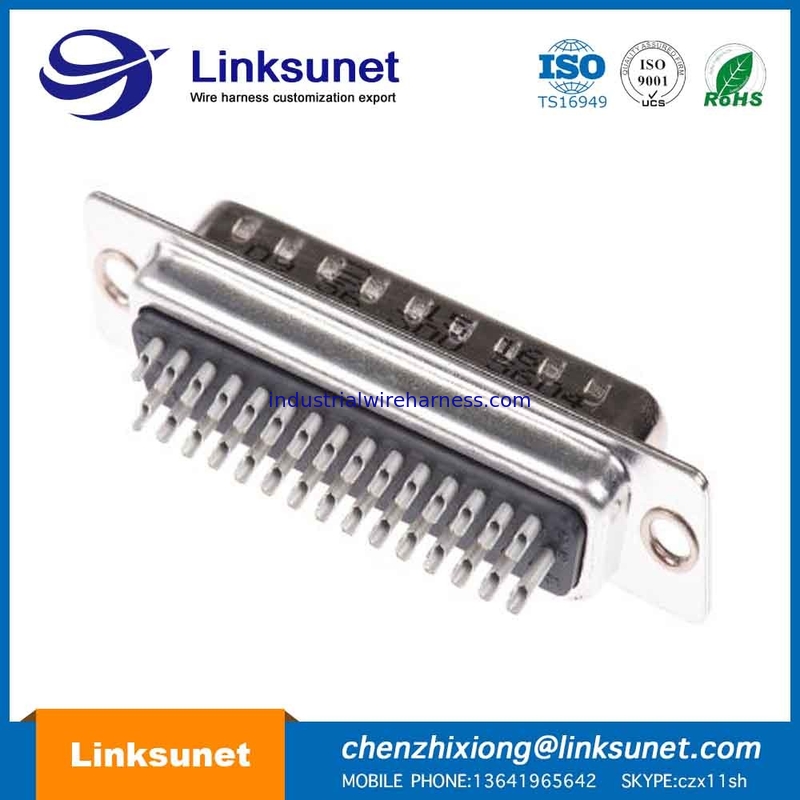

TE solding D-SUB connector wire harness 5-747912-2 / LIYCY PVC cable Custom customization
Documents & Media
cable use LIYY/LIYCY/UL2464/2517/2586,,,,,,
cable Jacket use PVC/PU/TPE/PUR
| Plug | RECEPTACLE | |
| 747904 - ( ) | 747905 - ( ) | 9 |
| 747908 - ( ) | 747907 - ( ) | 15 |
| 747912 - ( ) | 747913 - ( ) | 25 |
| 757916 - ( ) | 747917 - ( ) | 37 |
|
Datasheets |
747912 |
|
Product Training Modules |
AMPLIMITE D - Sub Connectors |
|
RoHS Information |
5 - 747912 - 2 Statement of Compliance |
|
RoHS 2 Statement |
|
|
Featured Product |
AMPLIMITE D - Subminiature Connectors |
|
Mfg CAD Models |
5 - 747912 - 2 . pdf |
|
PCN Design / Specification |
Amplimite Solder Cup Connectors 17 / Feb / 2014 |
|
Multiple Drawings Metric Conversion Correction 08 / Jul / 2015 |
|
|
Online Catalog |
AMPLIMITE HD - 20 Series |
|
Product Attributes |
Select All |
|
Categories |
Connectors , Interconnects |
|
D - Sub Connectors |
|
|
Manufacturer |
TE Connectivity AMP Connectors |
|
Series |
AMPLIMITE HD - 20 |
|
Packaging |
Tray |
|
Part Status |
Active |
|
Connector Style |
D - Sub |
|
Connector Type |
Plug , Male Pins |
|
Number of Positions |
25 |
|
Number of Rows |
2 |
| Shell Size , Connector Layout | 3 ( DB , B ) |
|
Contact Type |
Signal |
|
Mounting Type |
Free Hanging ( In - Line ) |
|
Flange Feature |
Housing / Shell ( Unthreaded ) |
|
Termination |
Solder Cup |
|
Features |
Grounding Indents |
|
Shell Material , Finish |
Steel , Tin Plated |
|
Contact Finish |
Gold |
|
Contact Finish Thickness |
8µin ( 0 . 20µin ) |
|
Ingress Protection |
- |
|
Material Flammability Rating |
UL94 V - 0 |
|
Operating Temperature |
- 55 °C ~ 105 °C |
|
Voltage Rating |
250V |
|
Current Rating |
3A |
|
Color |
Black |
|
Contact Form |
- |
|
Housing Material |
Polybutylene Terephthalate ( PBT ) , Glass Filled |
|
Wire Gauge |
- |
|
Contact Material |
Brass |
|
Backset Spacing |
- |
