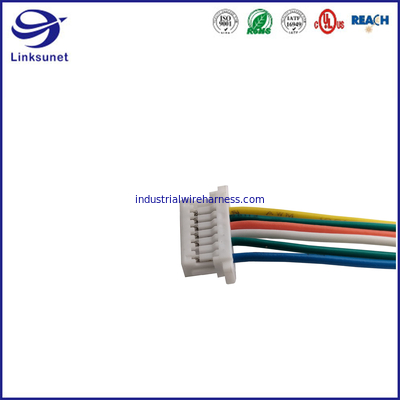

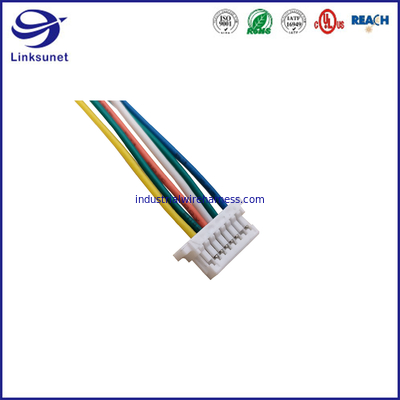

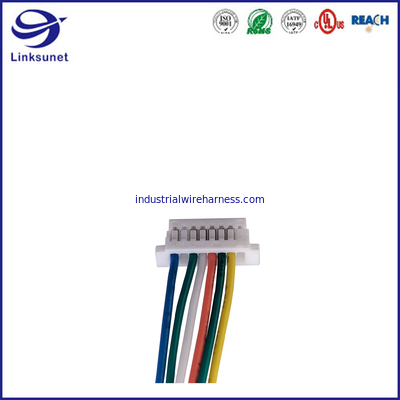

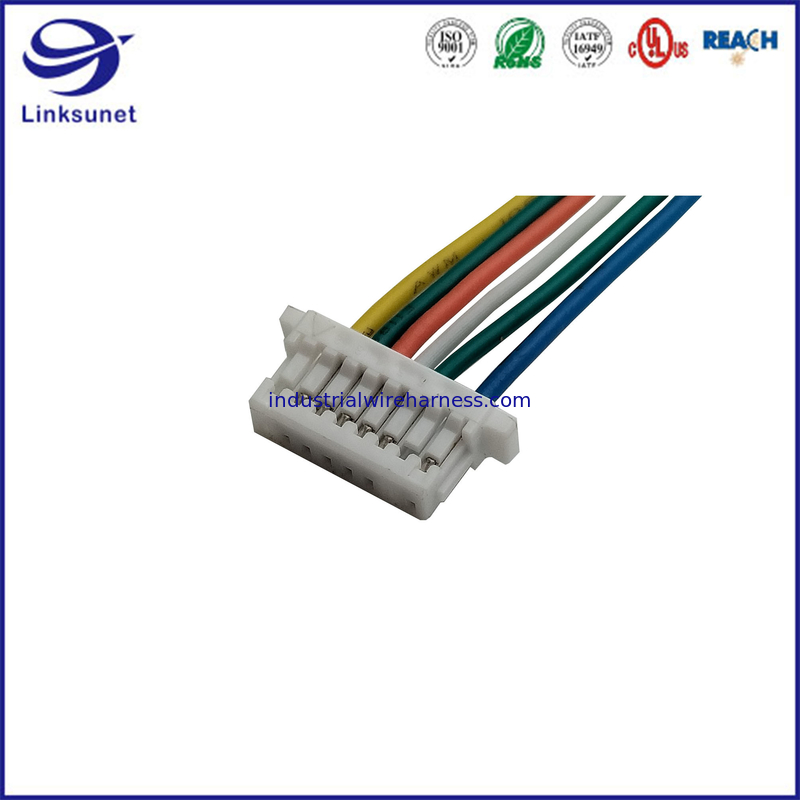

Compact and Low Profile design SH series 1.0mm Wire-to-Board Connectors for Wire Harness

Compact and Low Profile design SH series 1.0mm Wire-to-Board Connectors for Wire Harness

    • Compact and Low Profile design SH series  1.0mm Wire-to-Board Connectors for Wire Harness
    • Compact and Low Profile design SH series  1.0mm Wire-to-Board Connectors for Wire Harness
    • Compact and Low Profile design SH series  1.0mm Wire-to-Board Connectors for Wire Harness
    • Compact and Low Profile design SH series  1.0mm Wire-to-Board Connectors for Wire Harness
  • Compact and Low Profile design SH series  1.0mm Wire-to-Board Connectors for Wire Harness

    Product Details:

    Place of Origin: CHINA
    Brand Name: JST
    Certification: ROHS
    Model Number: SHR-08V-S-B

    Payment & Shipping Terms:

    Minimum Order Quantity: -
    Price: Negotiable
    Delivery Time: 2-3week
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: Negotiable
    Contact Now
    Detailed Product Description
    Series: SH Connector Category: Wire-to-Board Type
    Type: Crimp Style, Compact Type Disconnectable Type Pitch: 1.0 Mm
    Current Rating: 1.0A (AWG#28) Voltage Rating: 50V
    Temperature Range: -25℃ To + 85℃ Color: Natural

    Compact and Low profile design SH series 1.0mm Wire-to-Board Connectors for Wire Harness


    Features



        *Compact, low profile design
        *Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely      effect vacuum gripping equipment.
        *The receptacle has protrusions on both ends for an operator to disengage the receptacle from the header without holding the wires.



    Specifications

    • Current rating: 1.0 A AC/DC (AWG #28)
    • Voltage rating: 50 V AC/DC
    • Contact resistance: Initial value/ 20 mΩ max. After environmental tests/ 40 mΩ max.
    • Insulation resistance: 100 MΩ min.
    • Withstanding voltage: 500 VAC/minute.
    • Applicable wire: Conductor size/AWG #32 to #28 Insulation O.D./ 0.4 to 0.8 mm
    • In using the products, refer to "Handing Precautions for Terminals and Connectors" described on our website.
    • RoHS2 compliance
    • Dimensional unit:mm
    • Contact JST for details.





    Connector Details



    TYPE DESCRIPTION
    Category Connectors, Interconnects
    Rectangular Connectors - Housings
    Mfr JST Sales America Inc.
    Series SH
    Package Bulk
    Part Status Active
    Connector Type Receptacle
    Contact Type Female Socket
    Number of Positions 8
    Pitch 0.039" (1.00mm)
    Number of Rows 1
    Mouting Type Free Hanging (In-Line)
    Contact Termination Crimp
    Color Natural
    Note Contacts Not Included
    Base Product Number SHR-08V



    Compact and Low Profile design SH series  1.0mm Wire-to-Board Connectors for Wire HarnessCompact and Low Profile design SH series  1.0mm Wire-to-Board Connectors for Wire Harness

    Compact and Low Profile design SH series  1.0mm Wire-to-Board Connectors for Wire HarnessCompact and Low Profile design SH series  1.0mm Wire-to-Board Connectors for Wire Harness





    Product Specification




    No.of
    circuits
    Model No. Dimensions(mm) Q'ty/box
    A B
    With flange Without flange With flange Without flange
    2 SHR-02V-S-B SHR-02V-S 1.0 5.0 3.0 2,000
    3 SHR-03V-S-B SHR-03V-S 2.0 6.0 4.0 2,000
    4 SHR-04V-S-B SHR-04V-S 3.0 7.0 5.0 2,000
    5 SHR-05V-S-B SHR-05V-S 4.0 8.0 6.0 2,000
    6 SHR-06V-S-B SHR-06V-S 5.0 9.0 7.0 2,000
    7 SHR-07V-S-B SHR-07V-S 6.0 10.0 8.0 2,000
    8 SHR-08V-S-B SHR-08V-S 7.0 11.0 9.0 2,000
    9 SHR-09V-S-B SHR-09V-S 8.0 12.0 10.0 2,000
    10 SHR-10V-S-B SHR-10V-S 9.0 13.0 11.0 2,000
    11 SHR-11V-S-B SHR-11V-S 10.0 14.0 12.0 2,000
    12 SHR-12V-S-B SHR-12V-S 11.0 15.0 13.0 2,000
    13 SHR-13V-S-B SHR-13V-S 12.0 16.0 14.0 2,000
    14 SHR-14V-S-B SHR-14V-S 13.0 17.0 15.0 2,000
    15 SHR-15V-S-B SHR-15V-S 14.0 18.0 16.0 2,000
    20 SHR-20V-S-B   19.0 23.0 21.0 1,000



    Wire &cable Information

    German standard
    FLRY-B 0.35/0.5/0.75/1.5/2.5/4.0
    Japanese standard
    TXL 22AWG/20AWG/18AWG/16AWG/14AWG
    GXL 22AWG/20AWG/18AWG/16AWG/14AWG
    UL
    UL1007 UL1061 UL1015
    UL1569 UL3239 UL1430
    UL
    UL2464 UL20276 UL2586
    UL2733
    Jacket material
    PVC PE TPU
    PU TPE XLPE
    PUR PTFE Silicon rubber

    External protective materials
    PA flexible bellows
    PP bellows
    TPE Nylon Braided reticulated tube
    Electrical tape
    High temperature resistant flannel tape
    PVC sleeve
    Heat shrinkable tube





    Compact and Low Profile design SH series  1.0mm Wire-to-Board Connectors for Wire Harness

    FAQ
    MOQ 5-100000PCS
    LEAD TIME Production 2-3week
    Transportation FEDEX.UPS.DHL.SF.transportation line
    Payment method T/T,PAYPAL,ALIPAY,ALIBABA
    Production standard IPC/WHMA-A-620
    Product certification ROHS2.0/3.0,UL
    Factory related certification ISO9001/ITFA16949/ISO13485
