| Series: | NSH Connector | Category: | Wire-to-Board Type |
|---|---|---|---|
| Contact Type: | Female Socket | Pitch: | 1.0 Mm |
| Current Rating: | 1.0A (AWG#28) | Voltage Rating: | 50V |
| Temperature Range: | -25℃ To + 85℃ | Color: | Natural |

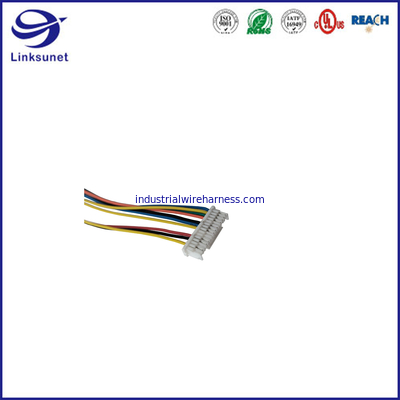

NSH Series 1.0mm 15 Pin With Secure Locking Device Crimp Style Wire-to-Board Connectors for Wire Harness
1.0mm pitch secure lock type connector. This low insertion force type connector realizes easier mating operation. The basic concept of the contact part of this connector is equivalent to the performance proven SHL connector.
Feathers
Specifications
Connector Details
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects Rectangular Connectors - Housings |
| Mfr | JST Sales America Inc. |
| Series | NSH |
| Package | Bulk |
| Part Status | Active |
| Connector Type | Receptacle |
| Connector Style | Female Socket |
| Number of Positions | 15 |
| Pitch | 0.039" (1.00mm) |
| Number of Rows | 1 |
| Mouting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Color | Natural |
| Note | Contacts Not Included |
| Base Product Number | NSHR-15V |
Specifications
Product Specification
| No. of circuits |
Model No. | Dimensions (mm) | Q'ty/ bag |
|
| A | B | |||
| 2 | NSHR-02V-S | *2.0 | *5.0 | 3,000 |
| 3 | NSHR-03V-S | 2.0 | 5.0 | 3,000 |
| 4 | NSHR-04V-S | 3.0 | 6.0 | 2,500 |
| 5 | NSHR-05V-S | 4.0 | 7.0 | 2,000 |
| 6 | NSHR-06V-S | 5.0 | 8.0 | 1,500 |
| 7 | NSHR-07V-S | 6.0 | 9.0 | 1,500 |
| 8 | NSHR-08V-S | 7.0 | 10.0 | 1,500 |
| 9 | NSHR-09V-S | 8.0 | 11.0 | 1,000 |
| 10 | NSHR-10V-S | 9.0 | 12.0 | 1,000 |
| 11 | NSHR-11V-S | 10.0 | 13.0 | 1,000 |
| 12 | NSHR-12V-S | 11.0 | 14.0 | 1,000 |
| 13 | NSHR-13V-S | 12.0 | 15.0 | 1,000 |
| 14 | NSHR-14V-S | 13.0 | 16.0 | 1,000 |
| 15 | NSHR-15V-S | 14.0 | 17.0 | 1,000 |
