| Place of Origin: | CHINA |
| Brand Name: | JST |
| Certification: | ROHS |
| Model Number: | PHDR-14VS |
| Minimum Order Quantity: | - |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 2-3week |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | Negotiable |
| Series: | PHD | Connector Type: | Socket |
|---|---|---|---|
| Pitch: | 0.079" (2.00mm) | Rated Voltage: | 250.0 V |
| Rated Current: | 3.0 A | Number Of Rows: | 2 |
| Housing Color: | Natural | Number Of Positions: | 14 |

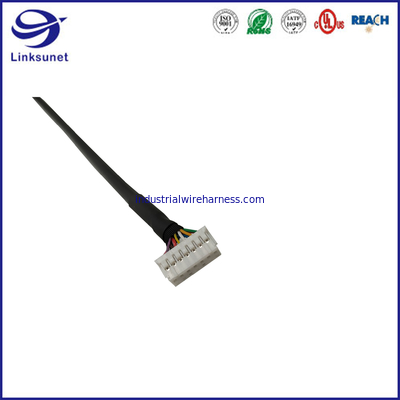

2.0mm PHDR Series 14 Rectangular Stable Crimp Style Dual-row Wire-to-board Connectors with Wire Harness
Developed for business equipment such as copy machines, printers and so on.
Features
Connector Details
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects Rectangular Connectors - Housings |
| Mfr | JST Sales America Inc. |
| Series | PHD |
| Package | Bulk |
| Part Status | Active |
| Connector Type | Receptacle |
| Connector Style | Female Socket |
| Number of Positions | 14 |
| Pitch | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Mouting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Color | Natural |
| Note | Contacts Not Included |
| Base Product Number | PHDR-14V |
Product Specification
| No. of circuits |
Model No. | Dimension(mm) | Q'ty/ bag |
|
| A | B | |||
| 8 | PHDR-08VS | 6.0 | 9.9 | 1,000 |
| 10 | PHDR-10VS | 8.0 | 11.9 | 1,000 |
| 12 | PHDR-12VS | 10.0 | 13.9 | 1,000 |
| 14 | PHDR-14VS | 12.0 | 15.9 | 1,000 |
| 16 | PHDR-16VS | 14.0 | 17.9 | 1,000 |
| 18 | PHDR-18VS | 16.0 | 19.9 | 1,000 |
| 20 | PHDR-20VS | 18.0 | 21.9 | 1,000 |
| 22 | PHDR-22VS | 20.0 | 23.9 | 1,000 |
| 24 | PHDR-24VS | 22.0 | 25.9 | 1,000 |
| 26 | PHDR-26VS | 24.0 | 27.9 | 1,000 |
| 28 | PHDR-28VS | 26.0 | 29.9 | 1,000 |
| 30 | PHDR-30VS | 28.0 | 31.9 | 1,000 |
| 32 | PHDR-32VS | 30.0 | 33.9 | 1,000 |
| 34 | PHDR-34VS | 32.0 | 35.9 | 1,000 |
Wire &cable Information
| German standard | ||
| FLRY-B | 0.35/0.5/0.75/1.5/2.5/4.0 | |
| Japanese standard | ||
| TXL | 22AWG/20AWG/18AWG/16AWG/14AWG | |
| GXL | 22AWG/20AWG/18AWG/16AWG/14AWG | |
| UL | ||
| UL1007 | UL1061 | UL1015 |
| UL1569 | UL3239 | UL1430 |
| UL | ||
| UL2464 | UL20276 | UL2586 |
| UL2733 | ||
| Jacket material | ||
| PVC | PE | TPU |
| PU | TPE | XLPE |
| PUR | PTFE | Silicon rubber |
| External protective materials | ||
| PA flexible bellows | ||
| PP bellows | ||
| TPE Nylon Braided reticulated tube | ||
| Electrical tape | ||
| High temperature resistant flannel tape | ||
| PVC sleeve | ||
| Heat shrinkable tube | ||
| FAQ | |
| MOQ | 5-100000PCS |
| LEAD TIME | Production 2-3week |
| Transportation | FEDEX.UPS.DHL.SF.transportation line |
| Payment method | T/T,PAYPAL,ALIPAY,ALIBABA |
| Production standard | IPC/WHMA-A-620 |
| Product certification | ROHS2.0/3.0,UL |
| Factory related certification | ISO9001/ITFA16949/ISO13485 |
