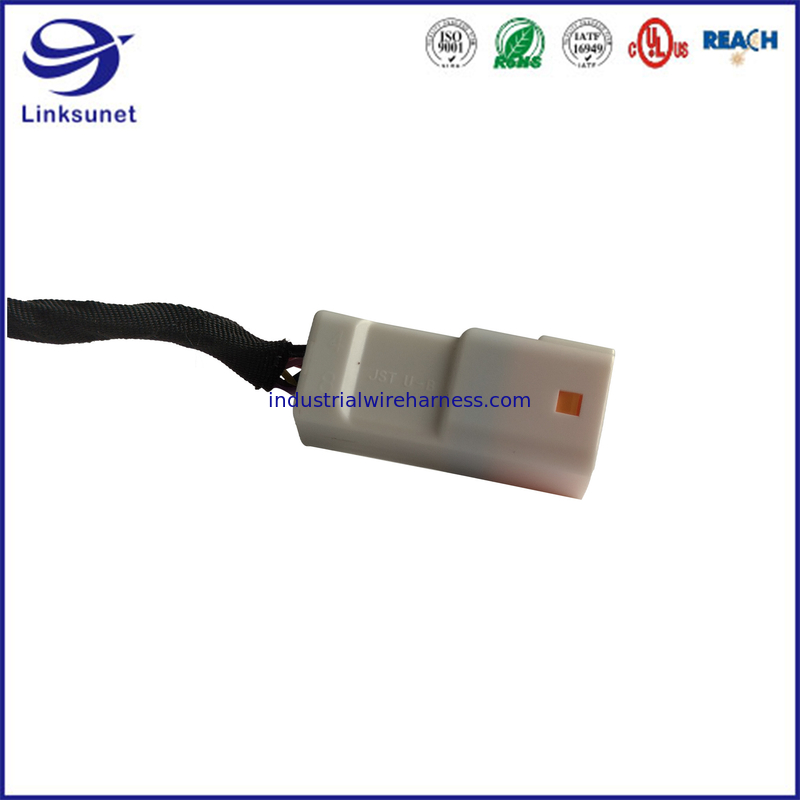

Inner-housing Secure Lock 2.00mm JWPF Series Waterproof Connectors with Seal Ring for Wire Harness

Inner-housing Secure Lock 2.00mm JWPF Series Waterproof Connectors with Seal Ring for Wire Harness

    • Inner-housing Secure Lock 2.00mm JWPF Series Waterproof Connectors with Seal Ring for Wire Harness
    • Inner-housing Secure Lock 2.00mm JWPF Series Waterproof Connectors with Seal Ring for Wire Harness
    • Inner-housing Secure Lock 2.00mm JWPF Series Waterproof Connectors with Seal Ring for Wire Harness
    • Inner-housing Secure Lock 2.00mm JWPF Series Waterproof Connectors with Seal Ring for Wire Harness
  • Inner-housing Secure Lock 2.00mm JWPF Series Waterproof Connectors with Seal Ring for Wire Harness

    Product Details:

    Place of Origin: CHINA
    Brand Name: JST
    Certification: ROHS
    Model Number: XT-JWPF-VSLE-S/D

    Payment & Shipping Terms:

    Minimum Order Quantity: -
    Price: Negotiable
    Delivery Time: 2-3week
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: Negotiable
    Contact Now
    Detailed Product Description
    Series: JWPF Pin: 2/3/4/6/8
    Pitch: 0.079" (2.00mm) ConnectorType: Plug
    Contact Type: Male Pin Rated Current: 3A
    Rated Voltage: 100V Color: Natural





    Inner-housing Secure Lock 2.00mm JWPF Series Waterproof Connectors with Seal Ring for Wire Harness



    •  This JWPF connector can be used for the place of which espically waterproof is required.
    •  This is the wire-wire connector that is grade 7 ingress protection of JIS C 0920(IPX7 of IEC 60529)




    Features



    1.  Waterproof performance
    2.  Contained seal ring
    3.  Solid rubber seal
    4.  Double-spring construction
    5.  Housing-to-terminal locks
    6.  Inner-housing lock





    Specifications

    • Current rating: 3 A AC/DC (AWG #22)
    • Voltage rating: 100 V AC/DC
    • Temperature range: -55°C to +85°C (including temperature rise in applying electrical current)
    • Contact resistance: Initial value/10 mΩ max. after environmental tests/15 mΩ max.




    • Insulation resistance: 1,000 MΩmin.
    • Withstanding voltage: 1,000 VAC/minute
    • Applicable wire: AWG #26 to #22, 0.13 mm2 to 33 mm2, insulation O.D./1.4 mm to 1.7 mm
    • Waterproof grade: Grade 7 ingress protection of JIS C 0920 (IPX7 of IEC 60529)





    Connector Details



    TYPE DESCRIPTION
    Category Connectors, Interconnects
    Rectangular Connectors - Housings
    Mfr JST Sales America Inc.
    Series JWPF
    Package Bulk
    Part Status Active
    Connector Type Plug
    Contact Type Male Pin
    Number of Positions 2/3/4/6/8
    Pitch 0.079" (2.00mm)
    Row spacing -
    Mounting Type   Free Hanging(In-line)
    Contact Termination  Crimp
    Fastening Type Latch Holder
    Color            Natural
    Features JIS C 0920 Grade Level 7
    Note Contacts Not Included





    Inner-housing Secure Lock 2.00mm JWPF Series Waterproof Connectors with Seal Ring for Wire Harness





    Product Specification



    Inner-housing Secure Lock 2.00mm JWPF Series Waterproof Connectors with Seal Ring
    Single row Double row
    02T-JWPF-VSLE-S 06T-JWPF-VSLE-D
    03T-JWPF-VSLE-S 08T-JWPF-VSLE-D
    04T-JWPF-VSLE-S



    Wire &cable Information



    German standard
    FLRY-B 0.35/0.5/0.75/1.5/2.5/4.0
    Japanese standard
    TXL 22AWG/20AWG/18AWG/16AWG/14AWG
    GXL 22AWG/20AWG/18AWG/16AWG/14AWG
    UL
    UL1007 UL1061 UL1015
    UL1569 UL3239 UL1430
    UL
    UL2464 UL20276 UL2586
    UL2733
    Jacket material
    PVC PE TPU
    PU TPE XLPE
    PUR PTFE Silicon rubber

    External protective materials
    PA flexible bellows
    PP bellows
    TPE Nylon Braided reticulated tube
    Electrical tape
    High temperature resistant flannel tape
    PVC sleeve
    Heat shrinkable tube





    Inner-housing Secure Lock 2.00mm JWPF Series Waterproof Connectors with Seal Ring for Wire Harness

    FAQ
    MOQ 5-100000PCS
    LEAD TIME Production 2-3week
    Transportation FEDEX.UPS.DHL.SF.transportation line
    Payment method T/T,PAYPAL,ALIPAY,ALIBABA
    Production standard IPC/WHMA-A-620
    Product certification ROHS2.0/3.0,UL
    Factory related certification ISO9001/ITFA16949/ISO13485
