| Place of Origin: | CHINA |
| Brand Name: | MOLEX |
| Certification: | ROHS |
| Model Number: | 39014040 |
| Minimum Order Quantity: | - |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 2-3week |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | Negotiable |
| Series: | Mini-Fit Jr 5557 | Number Of Positions: | 4 |
|---|---|---|---|
| Pitch: | 0.165" (4.20mm) | Connector Type: | Receptacle |
| Contact Type: | Female Socket | Maximum Per Contact: | 13.0A |
| Color: | Natural | Temperature Range: | -40° To +105°C |

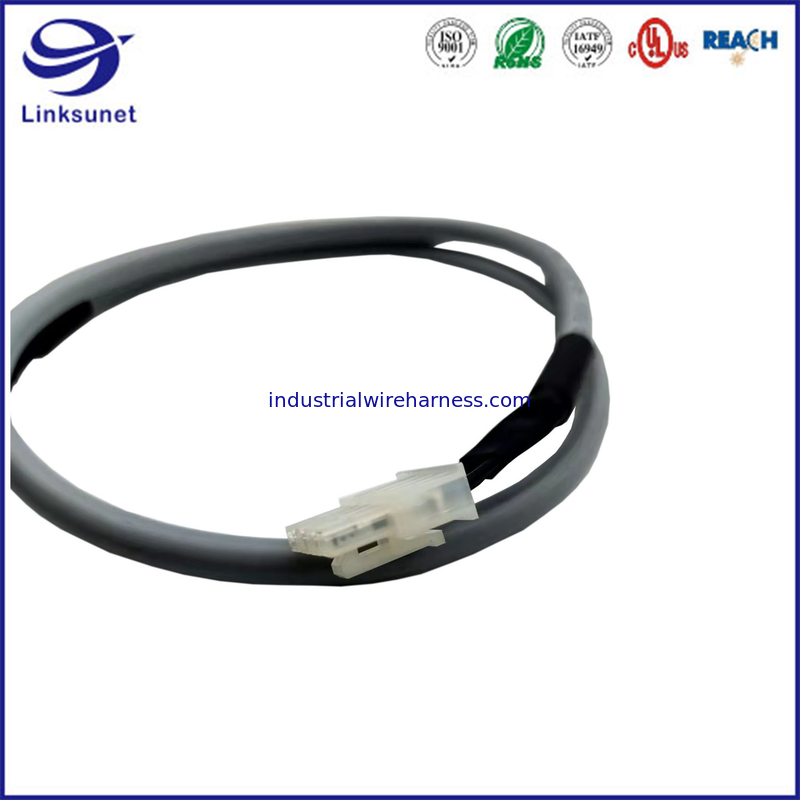

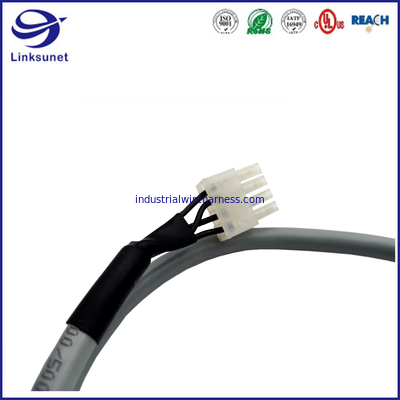

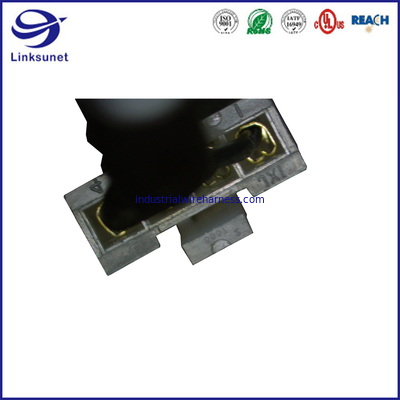

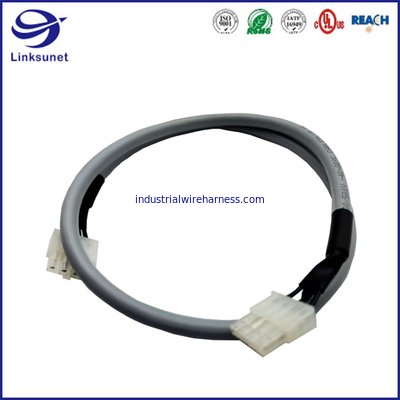

Multi-purpose Mini-Fit Jr 5557 Series 4.20mm Receptacle Housing Single Row Connectors for Custom Wiring Harness
GENERAL REQUIREMENTS
Features
Connector Details
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects Rectangular Connectors - Housings |
| Mfr | Molex |
| Series | Mini-Fit Jr 5557 |
| Package | Bulk |
| Part Status | Active |
| Connector Type | Receptacle |
| Connector Style | Female Socket |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Pitch | 0.165" (4.20mm) |
| Mouting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Color | Natural |
| Note | Contacts Not Included |
| Base Product Number | 003901 |
Product Specification
| PART NUMBER | ENG NUMBER | CKT SIZE | MATERIAL |
| 39-01-4020 | 5557-02R2 | 2 | 94V-2 |
| 39-01-4021 | 5557-02R2-210 | 2 | 94V-0 |
| 39-01-4040 | 5557-04R2 | 4 | 94V-2 |
| 39-01-4041 | 5557-04R2-210 | 4 | 94V-0 |
| 46999-0503 | 5557-04R2-400 | 4 | 94V-0 |
| 39-01-4050 | 5557-05R2 | 5 | 94V-2 |
| 39-01-4051 | 5557-05R2-210 | 5 | 94V-0 |
| 50-30-4447 | 5557-05R2-400 | 5 | 94V-0 |
| 39-01-4060 | 5557-06R2 | 6 | 94V-2 |
| 39-01-4061 | 5557-06R2-210 | 6 | 94V-0 |
Wire &cable Information
| German standard | ||
| FLRY-B | 0.35/0.5/0.75/1.5/2.5/4.0 | |
| Japanese standard | ||
| TXL | 22AWG/20AWG/18AWG/16AWG/14AWG | |
| GXL | 22AWG/20AWG/18AWG/16AWG/14AWG | |
| UL | ||
| UL1007 | UL1061 | UL1015 |
| UL1569 | UL3239 | UL1430 |
| UL | ||
| UL2464 | UL20276 | UL2586 |
| UL2733 | ||
| Jacket material | ||
| PVC | PE | TPU |
| PU | TPE | XLPE |
| PUR | PTFE | Silicon rubber |
| External protective materials | ||
| PA flexible bellows | ||
| PP bellows | ||
| TPE Nylon Braided reticulated tube | ||
| Electrical tape | ||
| High temperature resistant flannel tape | ||
| PVC sleeve | ||
| Heat shrinkable tube | ||
| FAQ | |
| MOQ | 5-100000PCS |
| LEAD TIME | Production 2-3week |
| Transportation | FEDEX.UPS.DHL.SF.transportation line |
| Payment method | T/T,PAYPAL,ALIPAY,ALIBABA |
| Production standard | IPC/WHMA-A-620 |
| Product certification | ROHS2.0/3.0,UL |
| Factory related certification | ISO9001/ITFA16949/ISO13485 |
