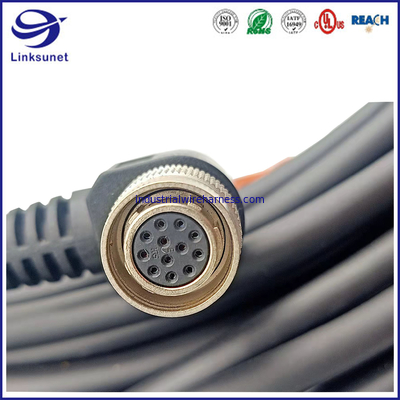

HR10A Series Push-Pull Coupling Type High Density Connectors with Custom Wiring Harness for Internal Power Supply

Product Details:

Place of Origin:	CHINA
Brand Name:	Hirose Electric Co Ltd
Certification:	ROHS
Model Number:	HR10A-10X-12X

Payment & Shipping Terms:

Minimum Order Quantity:	-
Price:	Negotiable
Delivery Time:	2-3week
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	Negotiable

Contact Now

Detailed Product Description

Series:	HR10A	Number Of Positions:	12
Fastening Type:	Push-Pull	ConnectorType:	Jack, Male Pins
Voltage Rating:	100VAC, 140VDC	Rated Current:	2.0 A
Shell Size - Insert:	10	Operating Temperature:	-25°C ~ 85°C

HR10A Series Push-Pull Coupling Type High Density Connectors with Custom Wiring Harness for Internal Power Supply

Features
[EnerBee™]
15A 3.96mm pitch Wire-to-Board Connectors for Internal Power Supply
(UL, C-UL and TÜV Listed)

1“A LITTLE GIANT”
The most compact HR10 series is as slender as a cigarette but it fits every application with well-balanced,simplified layout in limited space.
2 EASY "PUSH-PULL" OPERATION
One touch "push-pull" coupling mechanism assures easy and quick connecting and disconnecting. You can couple it accurately just by pushing any part of the connector housing.
3 POLARIZATION
Five-key system permits only one way of coupling so that you can find right position to connect even when blind mating.
4 PROTECTION OF CONNECTION PIN
A connector pin is located to avoid any damage which may be caused when blind mating.
5 HIGH DENSITY
The space-saving "push-pull" mechanism facilitates multi-installation of connectors.
6 EASY WIRING AND MOUNTING
No use of screws makes wiring and mounting easier.
7 SIMPLE AND REFINED APPEARANCE
Simple and well designed connectors with matte finish enhance he appearance of the equipment.

Application

[EnerBee™]15A 3.96mm Pitch Wire-to-Board Connectors for Internal Power Supply (UL, C-UL, TÜV, Listed)

Connector Details

TYPE	DESCRIPTION
Category	Connectors, Interconnects Circular Connectors
Mfr	Hirose Electric Co Ltd
Series	HR10A
Package	Bulk
Part Status	Obsolete
Connector Type	Jack, Male Pins
Number of Positions	12
Shell Size - Insert	10
Mouting Type	Free Hanging (In-Line)
Fastening Type	Push-Pull
Orientation	Keyed
Shielding	Unshielded
Current Rating (Amps)	2A
Voltage Rating	100VAC, 140VDC
Operating Temperature-25°C ~ 85°C	Contacts Not Included

HR10A Series Push-Pull Coupling Type High Density Connectors with Custom Wiring Harness for Internal Power Supply

Product Specification

HRS No.	Part No.	No. of pins	A	øB	øC	D	wight
110-0027-2	HR-7J-4S	4	28.5	11	8.85	5.2	7g
110-0028-5	HR-7J-4P	4	28.5	11	8.85	5.2	7g
110-0029-8	HR-7J-6S	6	28.5	11	8.85	5.2	7g
110-0030-7	HR-7J-6P	6	28.5	11	8.85	5.2	7g
110-0037-6	HR-10J-12S	12	32.5	14	11.9	7.2	14g
110-0038-9	HR-10J-12P	12	32.5	14	11.9	7.2	14g

Wire &cable Information

German standard
FLRY-B	0.35/0.5/0.75/1.5/2.5/4.0
Japanese standard
TXL	22AWG/20AWG/18AWG/16AWG/14AWG
GXL	22AWG/20AWG/18AWG/16AWG/14AWG
UL
UL1007	UL1061	UL1015
UL1569	UL3239	UL1430
UL
UL2464	UL20276	UL2586
UL2733
Jacket material
PVC	PE	TPU
PU	TPE	XLPE
PUR	PTFE	Silicon rubber

External protective materials
PA flexible bellows
PP bellows
TPE Nylon Braided reticulated tube
Electrical tape
High temperature resistant flannel tape
PVC sleeve
Heat shrinkable tube

FAQ
MOQ	5-100000PCS
LEAD TIME	Production 2-3week
Transportation	FEDEX.UPS.DHL.SF.transportation line
Payment method	T/T,PAYPAL,ALIPAY,ALIBABA
Production standard	IPC/WHMA-A-620
Product certification	ROHS2.0/3.0,UL
Factory related certification	ISO9001/ITFA16949/ISO13485
