| Place of Origin: | CHINA |
| Brand Name: | MOLEX |
| Certification: | ROHS |
| Model Number: | 39-01-3XX3 |
| Minimum Order Quantity: | - |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 2-3week |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | Negotiable |
| Series: | 5559 | Pin: | 2-24 |
|---|---|---|---|
| Pitch: | 0.165" (4.20mm) | ConnectorType: | Plug |
| ContactType: | Male Pin | ContactTermination: | Crimp |
| Color: | Natural | ApplicableWire: | 24-16AWG |

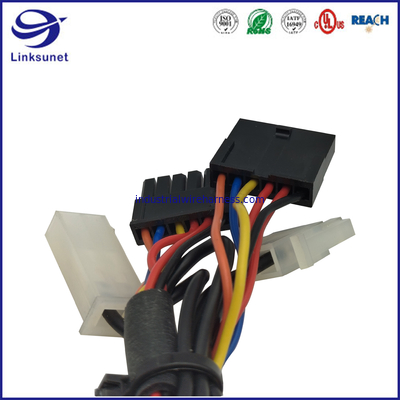

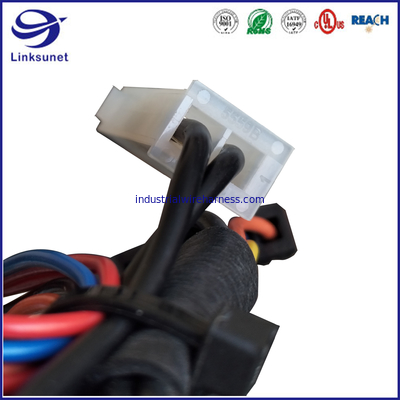

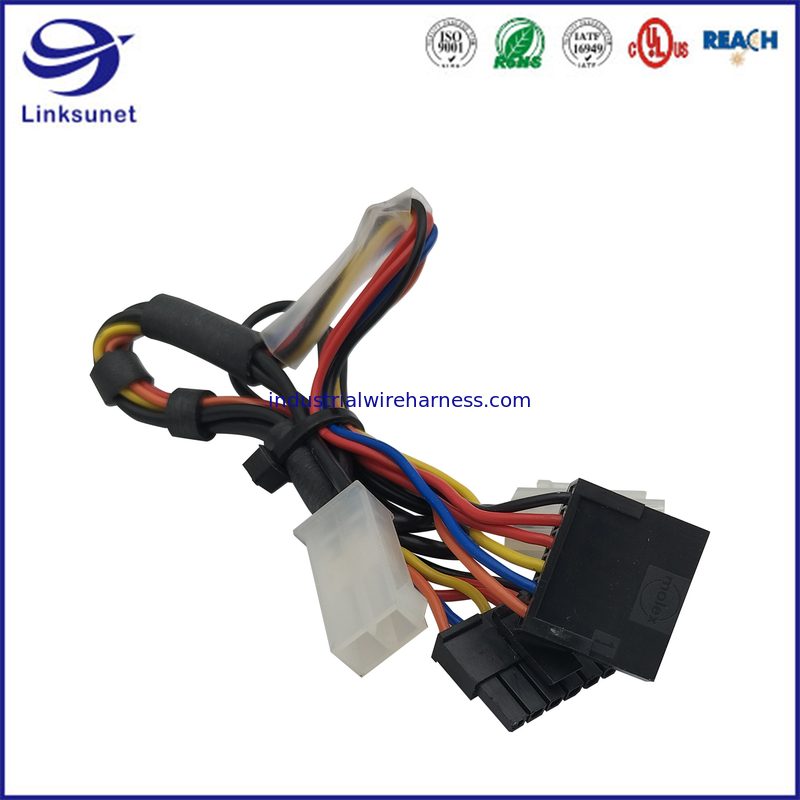

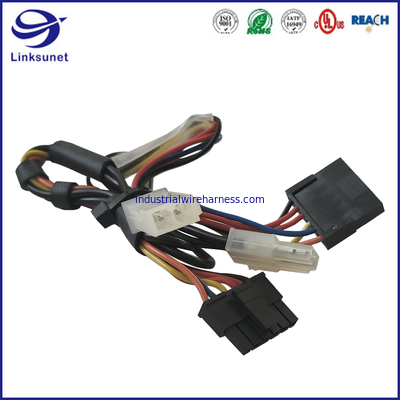

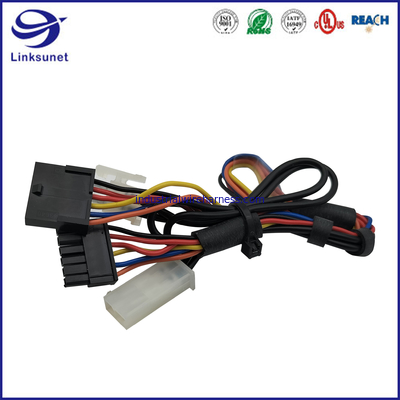

The Molex Mini-Fit Jr. series is designed for high current/high density applications that require the design flexibility of wire-to-wire and wire-to-board configurations in the interconnection system.
The Mini-Fit Jr. is appropriate for both power and signal applications as it can carry currents of up to 9.0 A per circuit and has a 10 mΩ contact resistance.
The Mini-Fit product family accepts the same terminals and application tooling, further reducing your design and qualification effort.
Features
Application
Connector Details
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects Rectangular Connectors - Housings |
| Mfr | Molex |
| Series | Mini-Fit Jr 5559 |
| Package | Bulk |
| Part Status | Active |
| Connector Type | Plug |
| Contact Type | Male pin |
| Number of Positions | 2-24 |
| Pitch | - |
| Number of Rows | 2 |
| Row spacing | 0.165" (4.20mm) |
| Mounting Type | Free Hanging(In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Locking Ramp |
| Color | Natural |
| Features | - |
| Note | Contacts Not Included |
Product Specification
| Circuit Size | Part number |
| 2 | 39-01-3023 |
| 4 | 39-01-3043 |
| 6 | 39-01-3063 |
| 8 | 39-01-3083 |
| 10 | 39-01-3103 |
|
12 |
39-01-3123 |
| 14 | 39-01-3143 |
| 16 | 39-01-3163 |
| 18 | 39-01-3183 |
| 20 | 39-01-3203 |
| 22 | 39-01-3223 |
| 24 | 39-01-3243 |
Wire &cable Information
| German standard | ||
| FLRY-B | 0.35/0.5/0.75/1.5/2.5/4.0 | |
| Japanese standard | ||
| TXL | 22AWG/20AWG/18AWG/16AWG/14AWG | |
| GXL | 22AWG/20AWG/18AWG/16AWG/14AWG | |
| UL | ||
| UL1007 | UL1061 | UL1015 |
| UL1569 | UL3239 | UL1430 |
| UL | ||
| UL2464 | UL20276 | UL2586 |
| UL2733 | ||
| Jacket material | ||
| PVC | PE | TPU |
| PU | TPE | XLPE |
| PUR | PTFE | Silicon rubber |
| External protective materials | ||
| PA flexible bellows | ||
| PP bellows | ||
| TPE Nylon Braided reticulated tube | ||
| Electrical tape | ||
| High temperature resistant flannel tape | ||
| PVC sleeve | ||
| Heat shrinkable tube | ||
| FAQ | |
| MOQ | 5-100000PCS |
| LEAD TIME | Production 2-3week |
| Transportation | FEDEX.UPS.DHL.SF.transportation line |
| Payment method | T/T,PAYPAL,ALIPAY,ALIBABA |
| Production standard | IPC/WHMA-A-620 |
| Product certification | ROHS2.0/3.0,UL |
| Factory related certification | ISO9001/ITFA16949/ISO13485 |
Contact Us
| Mail: chenzhixiong @ linksunet.com | Phone : + 86-13641965642 |
| Tel : 021-58320567 / 58322073 | WeChat : 13641965642 |
