| Place of Origin: | CHINA |
| Brand Name: | MOLEX |
| Certification: | ROHS |
| Model Number: | 505151-0800 |
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 2-3week |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | Negotiable |
| Series: | 505151 | Pins: | 8 |
|---|---|---|---|
| Pitch: | 0.079" (2.00mm) | ConnectorType: | Receptacle |
| ContactType: | Female Socket | Rated Current: | 3.0A |
| OperatingTemperature: | -40°C To +125°C | Color: | Black |

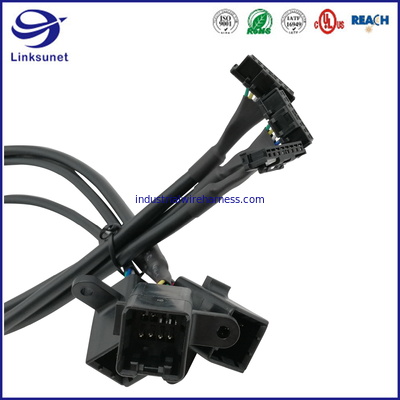

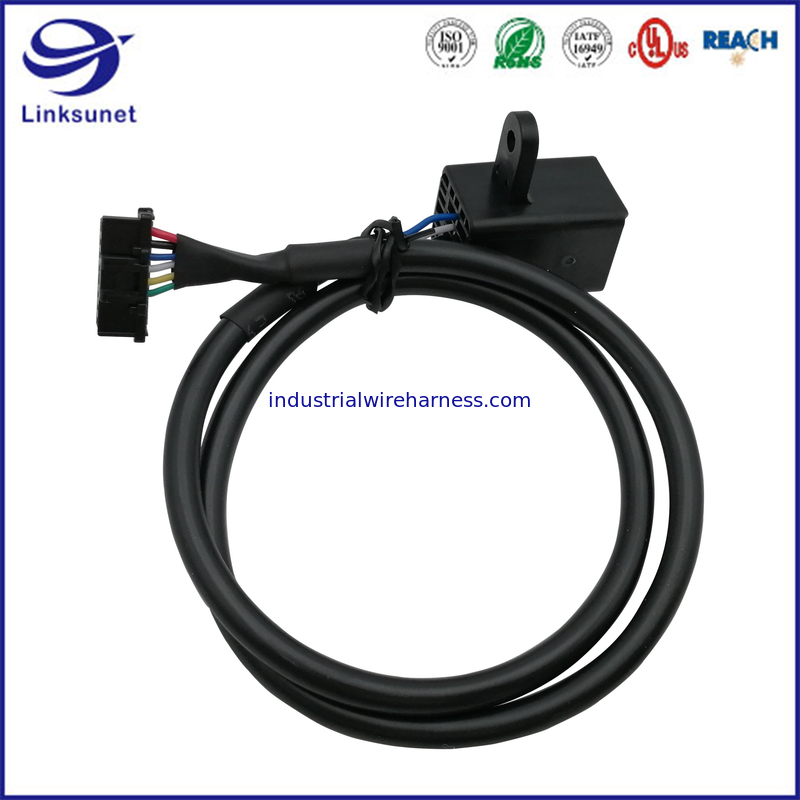

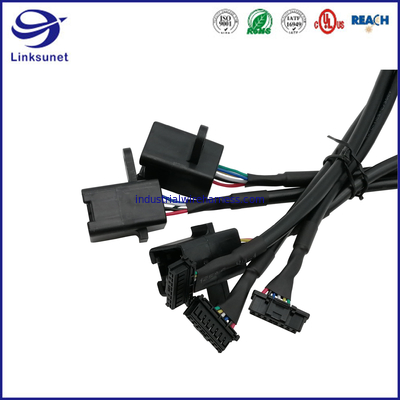

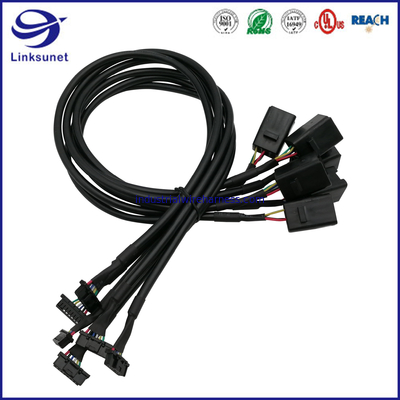

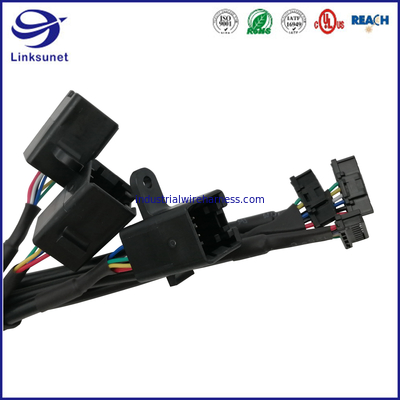

Automobile Radar line Original Brand 368191-2 505151 8 PIN 2.00mm pitch Receptacle Connectors with Wiring Harness
Features
Application
Gearshift
Steering switch
Meter system
Door module
Car navigation system
Inner rear-view mirror
Headlight
Seat adjuster
Rear combination lamp
Battery Management
System (BMS)
Inverter fastener component
Tractor
Crane
Industrial machinery
Telematics module
Head-up display
LED lighting
IH cooking heater
Connector Details
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects Rectangular Connectors - Housings |
| Mfr | Molex |
| Series | DuraClik 505151 |
| Package | Bulk |
| Part Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 2-15 |
| Pitch | 0.079" (3.00mm) |
| Number of Rows | 1 |
| Row spacing | - |
| Mounting Type | Free Hanging*(In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Holder |
| Color | Black |
| Features | - |
| Note | Contacts Not Included |
Product Specification
| No. of circuits | Model No. | Dimensions(mm) | |
| A | B | ||
| 2 | 505151-0200 | 8.00 | 6.10 |
| 3 | 505151-0300 | 9.80 | 8.10 |
| 4 | 505151-0400 | 11.80 | 10.10 |
| 5 | 505151-0500 | 13.80 | 12.10 |
| 6 | 505151-0600 | 15.80 | 14.10 |
| 7 | 505151-0700 | 17.80 | 16.10 |
| 8 | 505151-0800 | 19.80 | 18.10 |
| 9 | 505151-0900 | 21.80 | 20.10 |
| 10 | 505151-1000 | 23.80 | 22.10 |
| 11 | 505151-1100 | 25.80 | 24.10 |
| 12 | 505151-1200 | 27.80 | 26.10 |
| 13 | 505151-1300 | 29.80 | 28.10 |
| 14 | 505151-1400 | 31.80 | 30.10 |
| 15 | 505151-1500 | 33.80 | 32.10 |
Wire &cable Information
| German standard | ||
| FLRY-B | 0.35/0.5/0.75/1.5/2.5/4.0 | |
| Japanese standard | ||
| TXL | 22AWG/20AWG/18AWG/16AWG/14AWG | |
| GXL | 22AWG/20AWG/18AWG/16AWG/14AWG | |
| UL | ||
| UL1007 | UL1061 | UL1015 |
| UL1569 | UL3239 | UL1430 |
| UL | ||
| UL2464 | UL20276 | UL2586 |
| UL2733 | ||
| Jacket material | ||
| PVC | PE | TPU |
| PU | TPE | XLPE |
| PUR | PTFE | Silicon rubber |
| External protective materials | ||
| PA flexible bellows | ||
| PP bellows | ||
| TPE Nylon Braided reticulated tube | ||
| Electrical tape | ||
| High temperature resistant flannel tape | ||
| PVC sleeve | ||
| Heat shrinkable tube | ||
| FAQ | |
| MOQ | 5-100000PCS |
| LEAD TIME | Production 2-3week |
| Transportation | FEDEX.UPS.DHL.SF.transportation line |
| Payment method | T/T,PAYPAL,ALIPAY,ALIBABA |
| Production standard | IPC/WHMA-A-620 |
| Product certification | ROHS2.0/3.0,UL |
| Factory related certification | ISO9001/ITFA16949/ISO13485 |
