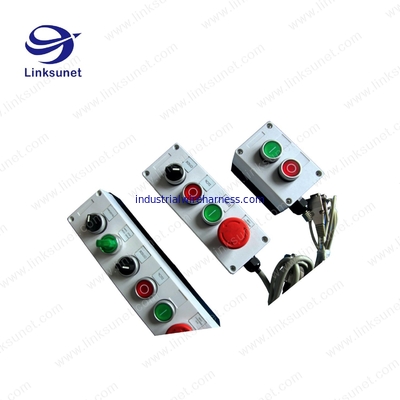

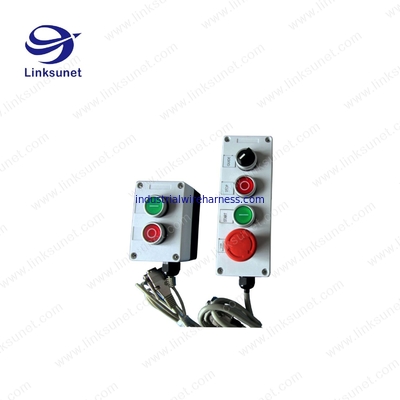

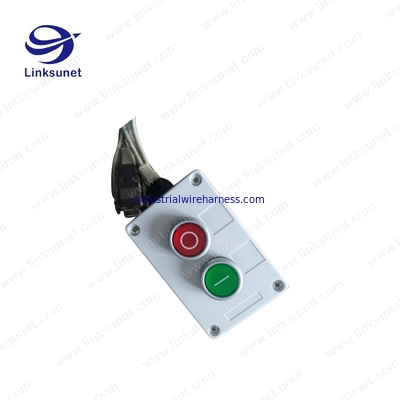

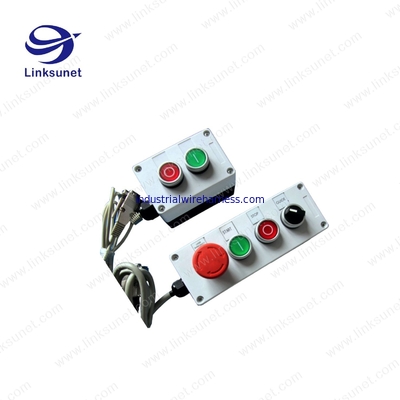

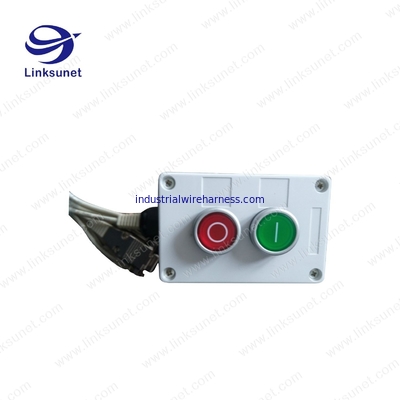

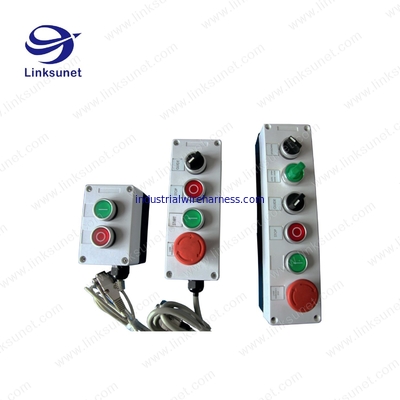

2P - 6P PA6/aluminum white Button Box with Custom Wiring Harness

2P - 6P PA6/aluminum white Button Box with Custom Wiring Harness

    • 2P - 6P PA6/aluminum white Button Box  with Custom Wiring Harness
    • 2P - 6P PA6/aluminum white Button Box  with Custom Wiring Harness
    • 2P - 6P PA6/aluminum white Button Box  with Custom Wiring Harness
    • 2P - 6P PA6/aluminum white Button Box  with Custom Wiring Harness
    • 2P - 6P PA6/aluminum white Button Box  with Custom Wiring Harness
    • 2P - 6P PA6/aluminum white Button Box  with Custom Wiring Harness
  • 2P - 6P PA6/aluminum white Button Box  with Custom Wiring Harness

    Product Details:

    Place of Origin: china
    Brand Name: Linksuet
    Certification: UL/CE/ROHS
    Model Number: 2/3/4/5/6P

    Payment & Shipping Terms:

    Minimum Order Quantity: 30set
    Price: Usd20/set
    Packaging Details: carton or wood box
    Delivery Time: 2d
    Supply Ability: 500SET/D
    Contact Now
    Detailed Product Description
    Name: Control Box Pos: 2/3/4/5/6p
    Switch: C/O Color: WT/silvery
    Material: PA6/aluminum Waterproof Grade: IP67
    Highlight:

    custom made wiring harness

    ,

    custom cable harness

    2 - 6P control button box custom processing wire harness for Medical equipment



    Product Description

    2 - 6P control button box custom processing wire harness for Medical equipment
    Name Button box
    Texture of material ABS
    performance waterproof
    Marking contact Always open
    Colour Gray
    Open hole 22MM
    Number 2-6P
    Waterproof grade IP65





    2P / 3P / 4P / 5P / 6P control button box(Normally open, normally closed ) Custom Wiring Harness  processing



    Machine equipment control switch



    CONTROL BOX, cable LIYY 4*0.25mm²,



    leght =1500MM, 4C,WT/BR/GE/YE,Jacket PVC



    TWO ANALOG OUTPUTS



    Normally open, normally closed,Emergency stop,



    Name Wire and cable harness assembly
    Linksunet 2P
    Product name DC Power Cable
    Color Optional
    Length Customised
    Service Custom Service
    Connector Molex
    Certificate UL94 - V0
    Type ( Crimping + assembly )



    GTOUP



    UNITRONIC®LiYY



    Technical Data



    Classification ETIM 5 , Class - ID : , EC000104
    ETIM 5 Type Description : Control cable
    Core identification code DIN 47100 without colour repetition , refere to Appendix T9
    Mutual capacitance Approx 120 nF / km
    Peak operating voltage ( not for power applications )
    at 0 . 14 - mm2 : 350 V
    at ≥ 0.25 mm2 - 500 V .
    Inductance Approx . 0.65 mH / km
    Conductor stranding Stranded , fine - wire
    0.34mm2 : 7 - wire
    Minimum bending radius Occasional flexing : 10 x outer diameter
    Fixed installation : 4 x outer diameter
    Test voltage At 0.14 - mm2 : 1200 V
    Temperature range Occasional flexing : -5 ℃ to + 70 ℃
    Fixed installation : -40 ℃ to + 80 ℃



    Material number



    28202 2 x 0 . 14 3 . 2 2 . 7 13 . 2
    28203 3 x 0 . 14 3 . 4 4 . 05 16
    28204 4 x 0 . 14 3 . 6 5 . 4 18 . 9
    28205 5 x 0 . 14 3 . 9 6 . 72 22 . 2
    28207 7 x 0 . 14 4 . 2 9 . 45 28 . 4
    28208 8 x 0 . 14 4 . 9 10 . 2 35 . 2
    28210 10 x 0 . 14 5 . 2 13 . 5 41 . 2
    28212 12 x 0 . 14 5 . 6 16 . 2 48 . 4
    28214 14 x 0 . 14 5 . 8 18 . 9 52 . 9
    28216 16 x 0 . 14 6 . 1 21 . 6 59 . 1
    28220 20 x 0 . 14 7 27 70 . 8
    28225 25 x 0 . 14 7 . 8 33 . 6 87 . 2
    28236 36 x 0 . 14 8 . 6 48 . 6 126 . 8
    28237 37 x 0 . 14 8 . 9 49 . 7 118
    28240 40 x 0 . 14 9 . 3 54 139 . 1
    28250 50 x 0 . 14 10 . 4 67 . 5 170 . 9
    28256 56 x 0 . 14 10 . 7 78 . 4 187
    28302 2 x 0 . 25 3 . 8 4 . 8 18
    28303 3 x 0 . 25 4 7 . 2 22
    28304 4 x 0 . 25 4 . 3 9 . 6 26 . 2
    28305 5 x 0 . 25 4 . 7 12 31
    28306 6 x 0 . 25 5 . 1 14 . 4 39
    28307 7 x 0 . 25 5 . 1 16 . 8 42
    28308 8 x 0 . 25 6 . 2 19 . 2 49 . 2
    28310 10 x 0 . 25 6 . 8 24 58
    28312 12 x 0 . 25 7 28 . 8 67
    28314 14 x 0 . 25 7 . 3 33 . 6 75 . 3
    28316 16 x 0 . 25 7 . 7 38 . 4 84 . 3
    28318 18 x 0 . 25 8 . 1 43 . 2 93
    28320 20 x 0 . 25 8 . 6 48 102




    2P - 6P PA6/aluminum white Button Box  with Custom Wiring Harness 2P - 6P PA6/aluminum white Button Box  with Custom Wiring Harness
    2P - 6P PA6/aluminum white Button Box  with Custom Wiring Harness 2P - 6P PA6/aluminum white Button Box  with Custom Wiring Harness
    2P - 6P PA6/aluminum white Button Box  with Custom Wiring Harness 2P - 6P PA6/aluminum white Button Box  with Custom Wiring Harness



    2P - 6P PA6/aluminum white Button Box  with Custom Wiring Harness



    2P - 6P PA6/aluminum white Button Box  with Custom Wiring Harness
