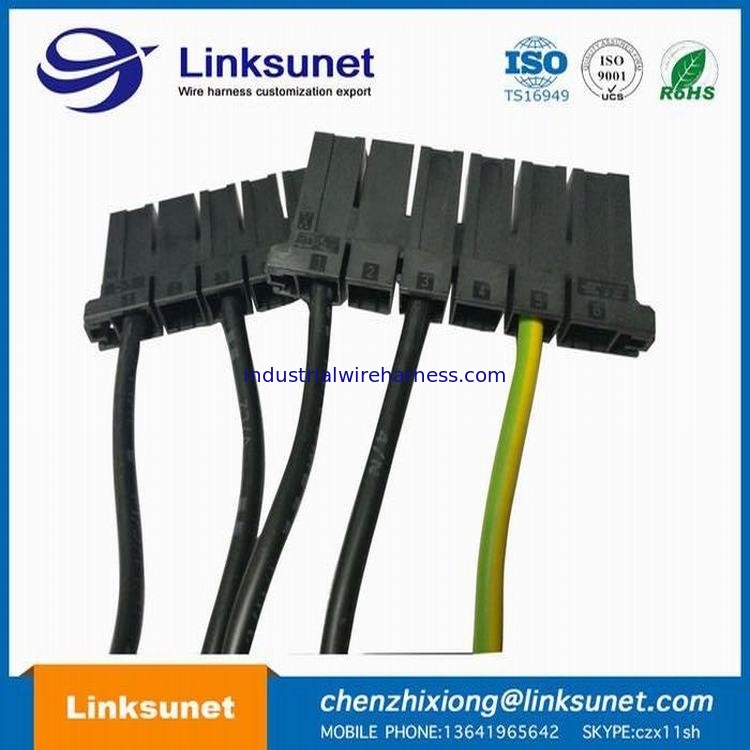

179958 - 6 Connector PUR Automotive Wiring Harness

179958 - 6 Connector PUR Automotive Wiring Harness

179958 - 6 Connector PUR Automotive Wiring Harness

Product Details:

Place of Origin: CHINA
Brand Name: TE / TYCO / AMP
Certification: UL/CE/ROHS/REACH/ISO/TS16949
Model Number: 179958 - 6

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiation
Packaging Details: Carton or Wood box
Delivery Time: 3-15DAY
Payment Terms: T/T,PAYPAL,ALIPAY
Supply Ability: 100000PCS/DAY
Contact Now
Detailed Product Description
Material: PA6 PICH: 10.0MM
COLOR: BK Cable: Customer Specified
Lenght: Customization Current: 16-30A
High Light:

vehicle wiring harness

,

auto electrical wiring harness

TE 10.0MM PICH large current 179958-6 connector / UL/CE PVC/PUR Multicore cable wire harness designated processing


Documents & Media



Cable 16AWG - 10AWG( 16A-30A )

1 1 - 179958 - 2 2P HSG
2 1 - 179958 - 3 3P HSG
3 1 - 179958 - 4 4P HSG
4 1 - 179958 - 6 6P HSG

Datasheets 179958 Drawing
D4000 , D5000 Series Catalog
Product Training Modules Dynamic Series Connector Solutions
RoHS Information 1 - 179958 - 6 Statement of Compliance
RoHS 2 Statement
Featured Product AMP Dynamic Series Connectors
Mfg CAD Models 1 - 179958 - 6.pdf
PCN Design/Specification 179958 Drawing Rev . Cancelled 30 / Jan / 2015
1 - 179958 - 6 Dimensional Tolerance 22 / Jun / 2016
( 1 , 2 ) - 179958 - ( 2 , 3 , 4 , 6 ) Product Improvement 31 / Jul / 2016
( 1 , 2 ) - 179958 - y Improved Tolerance 15 / May / 2017
Online Catalog Dynamic 5200 Series



Product Attributes Select All
Categories Connectors, Interconnects
Rectangular Connectors - Housings
Manufacturer TE Connectivity AMP Connectors
Series Dynamic D - 5200
Packaging Bulk
Part Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 6
Pitch 0 . 400"  ( 10.16mm )
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging ( In - Line )
Contact Termination Crimp
Fastening Type -
Color Black
Features Polarizing Key
Note Contacts Not Included



1-179958-2 - TE Connectivity AMP Connectors1 - 179958 - 2



TE Connectivity AMP Connectors CONN RECEPT 10 . 16 2POS KEY - X Bulk Dynamic D - 5200 Active Receptacle Female Socket 2 0 . 400 "         ( 10 . 16mm )



2-179958-4 - TE Connectivity AMP Connectors2 - 179958 - 4



TE Connectivity AMP Connectors CONN RECEPT 10 . 16 4POS KEY - Y Bulk Dynamic D - 5200 Active Receptacle Female Socket 4 0 . 400 " ( 10 . 16mm )



1-179958-4 - TE Connectivity AMP Connectors1 - 179958 - 4



TE Connectivity AMP Connectors CONN RECEPT 10 . 16 4POS       KEY - X Bulk Dynamic D - 5200 Active Receptacle Female Socket 4 0 . 400 " ( 10 . 16mm )



1-179958-6 - TE Connectivity AMP Connectors1 - 179958 - 6



TE Connectivity AMP Connectors CONN RECEPT 10 . 16 6POS KEY - X Bulk Dynamic D - 5200 Active Receptacle Female Socket 6 0 . 400 " ( 10 . 16mm )



1-179958-6 - TE Connectivity AMP Connectors2 - 179958 - 6



TE Connectivity AMP Connectors CONN RECEPT 10 . 16 6POS KEY - Y Bulk Dynamic D - 5200 Active Receptacle Female Socket 6 0 . 400 " ( 10 . 16mm )



2-179958-2 - TE Connectivity AMP Connectors2 - 179958 - 2



TE Connectivity AMP Connectors CONN RECEPT 10 . 16 2POS KEY - Y Bulk Dynamic D - 5200 Active Receptacle Female Socket 2 0 . 400 " ( 10 . 16mm )



1-179958-3 - TE Connectivity AMP Connectors1 - 179958 - 3



TE Connectivity AMP 3Connectors CONN RECEPT 10 . 16 3POS KEY - X Bulk Dynamic D - 5200 Active Receptacle Female Socket 3 0 . 400 " ( 10 . 16mm )



2-179958-3 - TE Connectivity AMP Connectors2 - 179958 - 3



TE Connectivity AMP Connectors CONN RECEPT 10 . 16 3POS KEY - Y Bulk Dynamic D - 5200 Active Receptacle Female Socket 3 0 . 400 " ( 10 . 16mm )



We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.

Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Product standards
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )



179958 - 6 Connector PUR Automotive Wiring Harness

179958 - 6 Connector PUR Automotive Wiring Harness

179958 - 6 Connector PUR Automotive Wiring Harness
