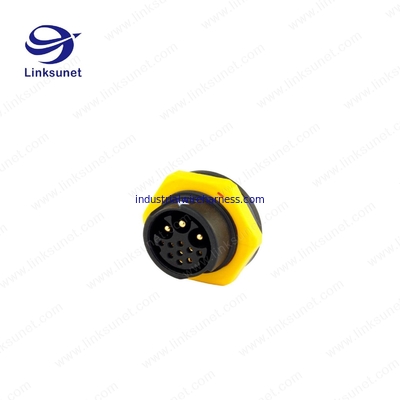

Hybrid 11 ADD 3 IP67 LED Screen Cable Assembly Female Sockets Circular Connector Bk Color

Product Details:

Place of Origin:	CHINA
Brand Name:	Chogori
Certification:	UL/CSA/ROHS/REACH/ISO9001/TS16949/IPC/WHMA-A-620
Model Number:	led large series

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiable
Packaging Details:	CARTON OR WOOD BOX
Delivery Time:	5-8 Day
Payment Terms:	L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability:	1000PCS/D

Contact Now

Detailed Product Description

Lead Free Status / RoHS Status:	Lead Free / RoHS Non-compliant	Connector Type:	Plug, Female Sockets
Number Of Positions:	11+3	Brand:	China
Color:	Bk Or Army-Green	Processing Mode:	Four Point Crimping
High Light:	19 pin circular connector , lapp liycy cable

Hight power Led wire harness/ large Hybrid IP67 Circular connector add High flexibility cable is use to Marine USE IN:

Standard 3+9/11+3 Pins Connector is a classic representative of a power-signal mixed style which is widely used in the industries of display and lighting. Advantages are reliable power supply performance, stable signal transmission guarantee long-term outdoor display performance. As the world's first case of big glass spheres grating advertising screen-- Shanghai MeiLuo spherical LED grating display screen (creative display screen) is one of the typical cases of the application for this connector.

1. Large Series, Assembly Instrucion

2. Large Series , Panel Mount & Male Pin

3. Large Series , Male Connector & Female Pin

4. Large Series , Panel Mount & Female Pin

5. Large Series , Male Connector & Male Pin

6. Large Series ,Female Connector & Male Pin

7. Large Series , Female Connector & Female Pin

8. Large Series, Metal System Push Lock Type

Number of Contacts	2	3	3	9	24	3 + 9 / 3 + 11
Wire Gauge	4 . 0mm2 (12AWG )		8 . 4mm2 ( 8AWG )	0 . 75mm2 ( 18AWG ) : 0 . 3mm2 ( 22AWG )		2 . 5mm2 + 0 . 2mm2 ( 12AWG + 24AWG )
Panel Thickness			Max . 5 . 0mm		Max . 2 . 2mm
Environmental Protection	IP67
Mechanical Life				500 mating cycles
Operating Temperature				- 45 °C - 105 °C
Voltage Rating	300V	300V	300V	125V /125V	300V	300V
Rated Current ( 40 °C )	20A	20A	50A	5A / 5A	20A + 5A	20A + 5A
