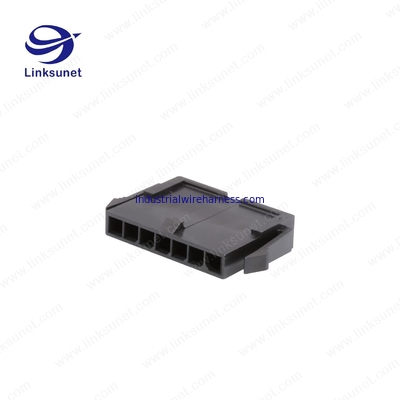

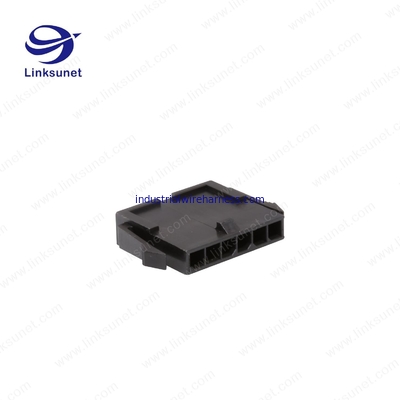

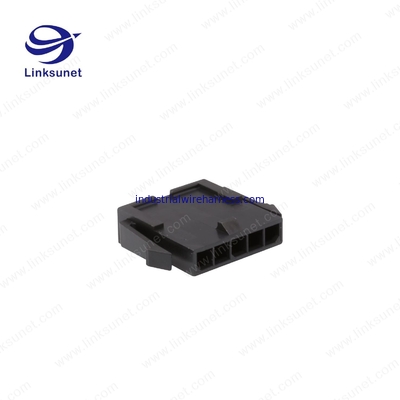

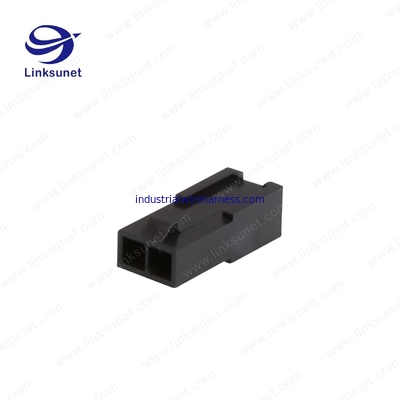

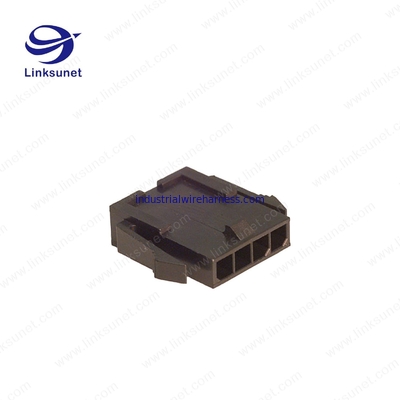

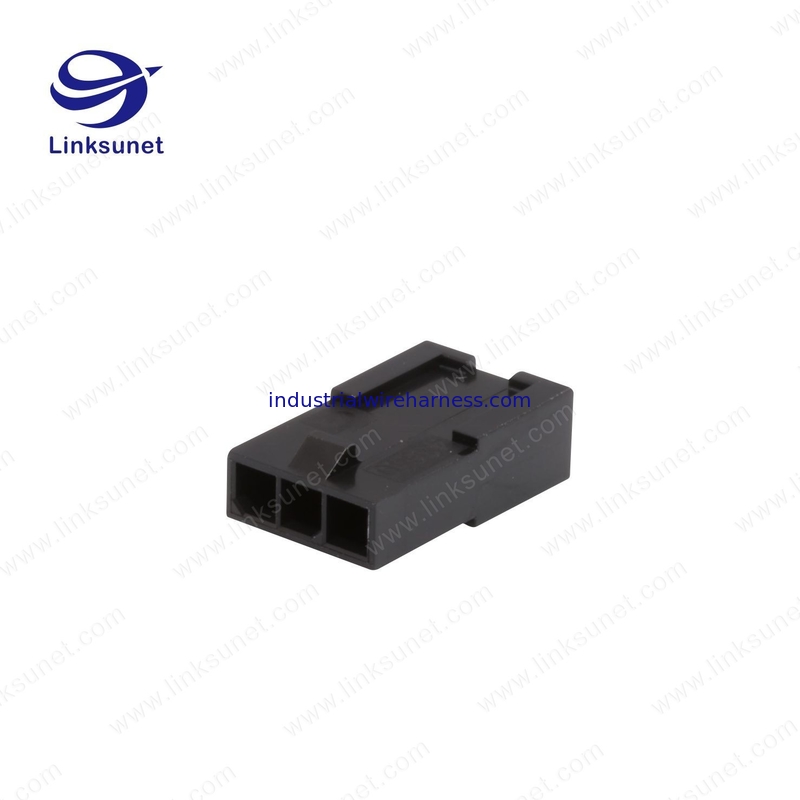

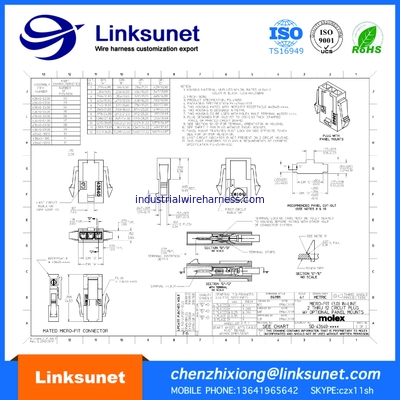

MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm

MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm

    • MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm
    • MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm
    • MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm
    • MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm
    • MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm
    • MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm
    • MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm
    • MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm
    • MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm
  • MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm

    Product Details:

    Place of Origin: JAPA
    Brand Name: MOLEX
    Certification: ROHS
    Model Number: 43640

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: Carton or Wood Box
    Delivery Time: 3-15D
    Payment Terms: T/T, MoneyGram, Western Union
    Supply Ability: 10000pcs/D
    Contact Now
    Detailed Product Description
    Overview: Micro - Fit 3.0 Connector System Product Family Color: Black
    Category: Crimp Housings Application: Power, Wire-to-Wire
    Pitch: 3.00mm UL: E29179
    High Light:

    male and female connectors

    ,

    male female cable connector

    Part Number: 43640-0300



    Micro-Fit 3.0™ Plug Housing, Single Row, 3 Circuits, UL 94V-0, Panel Mount Ears, Low-Halogen, Black



    Series image - Reference only



    Status:Active



    Series:43640



    Category:Crimp Housings



    Overview:Micro-Fit 3.0 Connector System Product Family



    Part Detail



    Category Crimp Housings
    Series 43640

    Circuits (maximum)

    3

    Color - Resin

    Black

    Flammability

    94V - 0

    Gender

    Plug

    Lock to Mating Part

    Yes

    Material - Resin

    Nylon

    Number of Rows

    1

    Panel Mount

    Yes

    Pitch - Mating Interface

    3 . 00mm

    Temperature Range - Operating

    - 40 °C to + 105 °C





    1 43640 - 0200 Single row 3.0MM , 1 * 2 , with panel mounts 2PIN connector
    2 43640 - 0300 Single row 3.0MM , 1 * 3 , with panel mounts 3PIN connector
    3 43640 - 0400 Single row 3.0MM , 1 * 4 , with panel mounts 4PIN connector
    4 43640 - 0500 Single row 3.0MM , 1 * 5 , with panel mounts 5PIN connector
    5 43640 - 0600 Single row 3.0MM , 1 * 6 , with panel mounts 6PIN connector
    6 43640 - 0700 Single row 3.0MM , 1 * 7 , with panel mounts 7PIN connector
    7 43640 - 0800 Single row 3.0MM , 1 * 8 , with panel mounts 8PIN connector
    8 43640 - 0900 Single row 3.0MM , 1 * 9 , with panel mounts 9PIN connector
    9 43640 - 1000 Single row 3.0MM , 1 * 10 , with panel mounts 10PIN connector
    10 43640 - 1100 Single row 3.0MM , 1 * 11 , with panel mounts 11PIN connector
    11 43640 - 1200 Single row 3.0MM , 1 * 12 , with panel mounts 12PIN connector



    1 43640 - 0201 Single row 3.0MM , 1 * 2 , without panel mounts 2PIN connector
    2 43640 - 0301 Single row 3.0MM , 1 * 3 , without panel mounts 3PIN connector
    3 43640 - 0401 Single row 3.0MM , 1 * 4 , without panel mounts 4PIN connector
    4 43640 - 0501 Single row 3.0MM , 1 * 5 , without panel mounts 5PIN connector
    5 43640 - 0601 Single row 3.0MM , 1 * 6 , without panel mounts 6PIN connector
    6 43640 - 0701 Single row 3.0MM , 1 * 7 , without panel mounts 7PIN connector
    7 43640 - 0801 Single row 3.0MM , 1 * 8 , without panel mounts 8PIN connector
    8 43640 - 0901 Single row 3.0MM , 1 * 9 , without panel mounts 9PIN connector
    9 43640 - 1001 Single row 3.0MM , 1 * 10 , without panel mounts 10PIN connector
    10 43640 - 1101 Single row 3.0MM , 1 * 11 , without panel mounts 11PIN connector
    11 43640 - 1201 Single row 3.0MM , 1 * 12 , without panel mounts 12PIN connector

    Male Termail+Female Termial

    1 43031 - 0001 20 - 24AWG , CHAIN TIN
    2 43031 - 0002 20 - 24AWG , CHAIN GOLD
    3 43031 - 0003 20 - 24AWG , CHAIN GOLD
    4 43031 - 0004 26 - 30AWG , CHAIN TIN
    5 43031 - 0005 26 - 30AWG , CHAIN GOLD
    6 43031 - 0006 26 - 30AWG , CHAIN GOLD
    7 43031 - 0007 20 - 24AWG , LOOSE TIN
    8 43031 - 0008 20 - 24AWG , LOOSE GOLD
    9 43031 - 0009 20 - 24AWG , LOOSE GOLD
    10 43031 - 0010 26 - 30AWG , LOOSE TIN
    11 43031 - 0011 26 - 30AWG , LOOSE GOLD
    12 43031 - 0012 26 - 30AWG , LOOSE GOLD



    1 43030 - 0001 20 - 24AWG , CHAIN TIN
    2 43030 - 0002 20 - 24AWG , CHAIN GOLD
    3 43030 - 0003 20 - 24AWG , CHAIN GOLD
    4 43030 - 0004 26 - 30AWG , CHAIN TIN
    5 43030 - 0005 26 - 30AWG , CHAIN GOLD
    6 43030 - 0006 26 - 30AWG , CHAIN GOLD
    7 43030 - 0007 20 - 24AWG , LOOSE TIN
    8 43030 - 0008 20 - 24AWG , LOOSE GOLD
    9 43030 - 0009 20 - 24AWG , LOOSE GOLD
    10 43030 - 0010 26 - 30AWG , LOOSE TIN
    11 43030 - 0011 26 - 30AWG , LOOSE GOLD
    12 43030 - 0012 26 - 30AWG , LOOSE GOLD
    13 43030 - 0038 UL1061 - 18AWG , CHAIN TIN



    UL standard internal wiring
    UL1007 Hook-up Wire
    UL1015 Hook-up Wire
    UL1061 Hook-up Wire
    UL1185 Single Conductor Shielded Cable
    UL1316 Reinforced Hook-up Wire
    UL1330 FEP Insulated Wire
    UL1430 Crosslinked PVC Insulated Wire
    UL1452 Reinforced Hook-up Wire
    UL1533 Single Conductor Shielded Cable
    UL1569 Hook-up Wire
    UL1571 Hook-up Wire
    UL1672 Reinforced Hook-up Wire
    UL10064 FEP Insulated Wire
    UL10086 High Temperature Resistant Hook-up Wire
    UL10097 Crosslinked PVC Insulated Wire
    UL10272 Hook-up Wire
    UL10308 High Temperature Resistant Hook-up Wire
    UL2464 Multi-Conductor Shielded Cable
    UL2468 Flat Ribbon Wire
    UL2509 Multi-Conductor Cable
    UL2517 Multi-Conductor Shielded Cable
    UL2547 Multi-Conductor Shielded Cable
    UL2552 Multi-Conductor Shielded Cable
    UL2576 Multi-Conductor Cable
    UL2586 Multi-Conductor Cable
    UL2651 Flat Ribbon Wire
    UL2725 Multi-Conductor Shielded Cable
    UL2835 Multi-Conductor Shielded Cable
    UL2854 Multi-Conductor Shielded Cable
    UL2919 Low Voltage Multi-Conductor Shielded Cable
    UL20276 Multi-Conductor Shielded Cable
    UL20379 Multi-Conductor Shielded Cable
    UL21149 Multi-Conductor Shielded Cable
    UL21520 Multi-Conductor Cable
    UL3443 Hook-up Wire

    UL halogen-free wire
    UL11027 Hook-up Wire
    UL10983 Single Conductor Shielded Cable
    UL10982 Hook-up Wire
    UL10981 Hook-up Wire
    UL10984 Reinforced Hook-up Wire
    UL10986 Single Conductor Shielded Cable
    UL10987 Hook-up Wire
    UL11025 Hook-up Wire
    UL11028 Hook-up Wire
    UL11029 Hook-up Wire
    UL11045 Reinforced Hook-up Wire
    UL11047 Reinforced Hook-up Wire
    UL21451 Double Shielded Cable
    UL21452 Double Shielded Cable
    UL21455 Multi-Conductor Shielded Cable
    UL21456 Multi-Conductor Shielded Cable
    UL21457 Multi-Conductor Shielded Cable
    UL21458 Flat Ribbon Wire
    UL21461 Multi-Conductor Shielded Cable
    UL21474 Multi-Conductor Shielded Cable
    UL21476 Multi-Conductor Shielded Cable
    UL21515 Flat Ribbon Wire
    UL21517 Multi-Conductor Shielded Flat Ribbon Wiree

    Industrial electric wire

    Flexible Single Core Cable
    Flexible Multi-core Torsion Cable
    Flexible Multi-core Shielded/Non-Shielded Control Cable

    VDE standard wire

    LifY Single Core,extra fine wires with highest flexibility
    LIYY-Command Cable (Style 2464/300 V, (80°C)
    LIYY-TP-Command Cable-Twisted (Style 2464/300 V, (80°C)
    LIYCY-Shielding Command Cable (Style 2464/300 V, (80°C)
    LIYCY-TP-Shielding Command Cable-Twisted (Style 2464/300 V, (80°C)

    Automotive wire

    FLRY-A Automotive Wire Series
    FLRY-B Automotive Wire Series
    FLRYW Automotive Wire Series

    TWP Automotive Wire Series
    TXL Automotive Wire Series
    GXL Automotive Wire Series
    AVS Automotive Wire Series
    AVSS Automotive Wire Series

    Packaging & Shipping

    Export cartons
    (406mm*306mm*250mm)



    MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm
    MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm
    MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm



    MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm



    MOLEX 43640 - 0300 Male Female Electrical Connectors Single Row With Panel Mount Ears / Pitch 3.00mm
