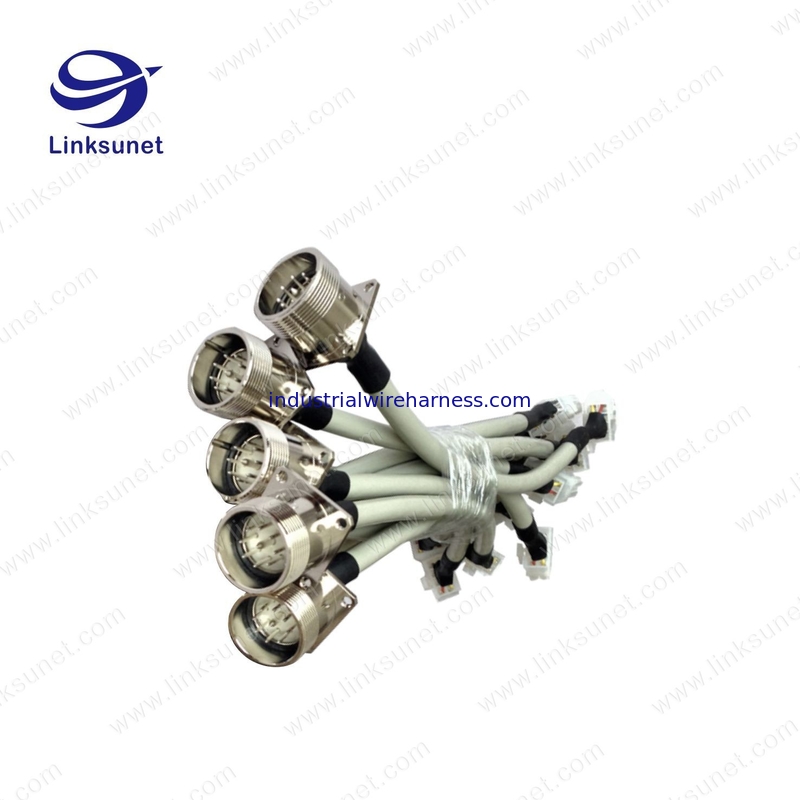

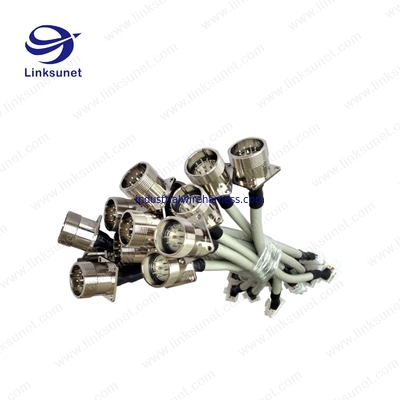

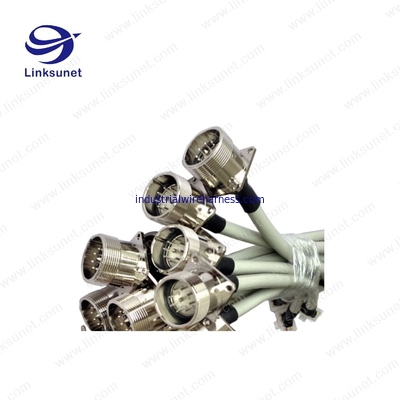

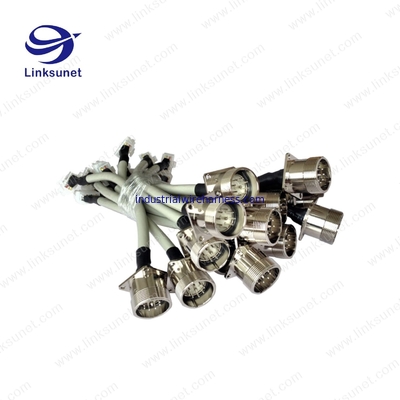

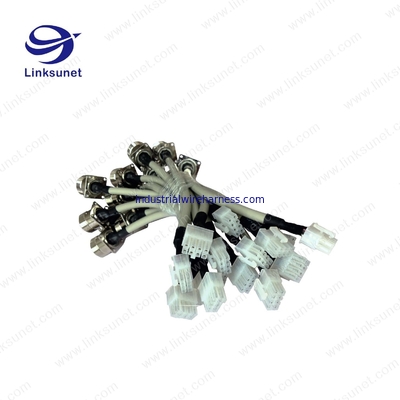

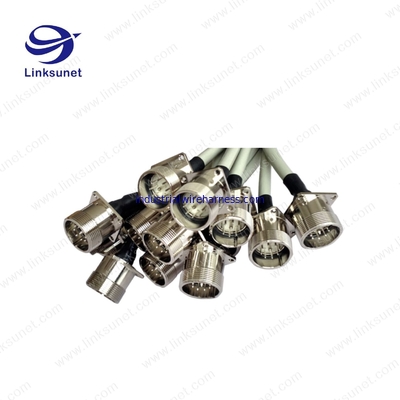

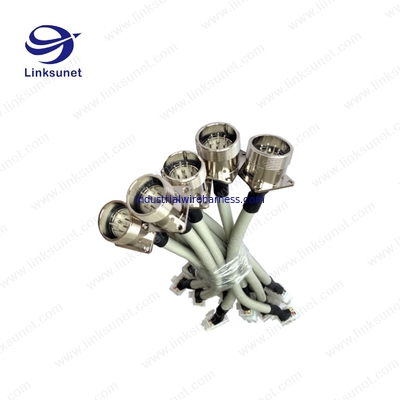

9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness

9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness

    •  9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness
    •  9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness
    •  9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness
    •  9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness
    •  9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness
    •  9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness
    •  9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness
  •  9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness

    Product Details:

    Place of Origin: CHINA
    Certification: UL/CAS/ROHS/RECHA/ISO9001/TS16949/IPC/WHMA-A-620
    Model Number: 00008764

    Payment & Shipping Terms:

    Minimum Order Quantity: 200PCS
    Price: Negotiable
    Packaging Details: CARTON OR WOOD BOX
    Payment Terms: Western Union, MoneyGram, L/C, T/T
    Supply Ability: 100000PCS/D
    Contact Now
    Detailed Product Description
    MATIEL: PA6 Pin: 9
    Leght: Customer Request Cable: LIYCY
    Color: GREEN/YE Termial Type: Soldering
    Highlight:

    liycy cable

    ,

    electric vehicle connector

    9pin connector add LIYCY wiring harness for Analysis instrument



    Product Description


      9pin connector add LIYCY wiring harness for Analysis instrumentent

      Contact rated current    7.5A
      Voltage protection    1500V
      Insulation resistance   ≥108MΩ
      Contact resistance   ≤2.5mΩ
      Wire size   26-18 awg
      Connector material   Nickel plated copper alloy
      Insulator material   Glass filled thermoplastic resin
      Contact material   Silver plated copper alloy
      temperature range   - 40 °C + 125°C
      Environmental seal   IP65 ~ DIN40050



    UL standard internal wiring
    UL1007 Hook-up Wire
    UL1015 Hook-up Wire
    UL1061 Hook-up Wire
    UL1185 Single Conductor Shielded Cable
    UL1316 Reinforced Hook-up Wire
    UL1330 FEP Insulated Wire
    UL1430 Crosslinked PVC Insulated Wire
    UL1452 Reinforced Hook-up Wire
    UL1533 Single Conductor Shielded Cable
    UL1569 Hook-up Wire
    UL1571 Hook-up Wire
    UL1672 Reinforced Hook-up Wire
    UL10064 FEP Insulated Wire
    UL10086 High Temperature Resistant Hook-up Wire
    UL10097 Crosslinked PVC Insulated Wire
    UL10272 Hook-up Wire
    UL10308 High Temperature Resistant Hook-up Wire
    UL2464 Multi-Conductor Shielded Cable
    UL2468 Flat Ribbon Wire
    UL2509 Multi-Conductor Cable
    UL2517 Multi-Conductor Shielded Cable
    UL2547 Multi-Conductor Shielded Cable
    UL2552 Multi-Conductor Shielded Cable
    UL2576 Multi-Conductor Cable
    UL2586 Multi-Conductor Cable
    UL2651 Flat Ribbon Wire
    UL2725 Multi-Conductor Shielded Cable
    UL2835 Multi-Conductor Shielded Cable
    UL2854 Multi-Conductor Shielded Cable
    UL2919 Low Voltage Multi-Conductor Shielded Cable
    UL20276 Multi-Conductor Shielded Cable
    UL20379 Multi-Conductor Shielded Cable
    UL21149 Multi-Conductor Shielded Cable
    UL21520 Multi-Conductor Cable
    UL3443 Hook-up Wire

    UL halogen-free wire
    UL11027 Hook-up Wire
    UL10983 Single Conductor Shielded Cable
    UL10982 Hook-up Wire
    UL10981 Hook-up Wire
    UL10984 Reinforced Hook-up Wire
    UL10986 Single Conductor Shielded Cable
    UL10987 Hook-up Wire
    UL11025 Hook-up Wire
    UL11028 Hook-up Wire
    UL11029 Hook-up Wire
    UL11045 Reinforced Hook-up Wire
    UL11047 Reinforced Hook-up Wire
    UL21451 Double Shielded Cable
    UL21452 Double Shielded Cable
    UL21455 Multi-Conductor Shielded Cable
    UL21456 Multi-Conductor Shielded Cable
    UL21457 Multi-Conductor Shielded Cable
    UL21458 Flat Ribbon Wire
    UL21461 Multi-Conductor Shielded Cable
    UL21474 Multi-Conductor Shielded Cable
    UL21476 Multi-Conductor Shielded Cable
    UL21515 Flat Ribbon Wire
    UL21517 Multi-Conductor Shielded Flat Ribbon Wiree

    Industrial electric wire

    Flexible Single Core Cable
    Flexible Multi-core Torsion Cable
    Flexible Multi-core Shielded/Non-Shielded Control Cable

    VDE standard wire

    LifY Single Core,extra fine wires with highest flexibility
    LIYY-Command Cable (Style 2464/300 V, (80°C)
    LIYY-TP-Command Cable-Twisted (Style 2464/300 V, (80°C)
    LIYCY-Shielding Command Cable (Style 2464/300 V, (80°C)
    LIYCY-TP-Shielding Command Cable-Twisted (Style 2464/300 V, (80°C)

    Automotive wire

    FLRY-A Automotive Wire Series
    FLRY-B Automotive Wire Series
    FLRYW Automotive Wire Series

    TWP Automotive Wire Series
    TXL Automotive Wire Series
    GXL Automotive Wire Series
    AVS Automotive Wire Series
    AVSS Automotive Wire Series

    Packaging & Shipping

    Export cartons
    (406mm*306mm*250mm)



     9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness  9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness
     9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness  9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness
     9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness  9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness



     9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness



     9pin Silver plated copper alloy connector add LIYCY 26-18 awg wiring harness
