Place of Origin: | Germany |
Brand Name: | GROUP |
Certification: | ROHS |
Model Number: | 1120232 |
Minimum Order Quantity: | 100set |
---|---|
Price: | Negotiable |
Packaging Details: | Carton or Wood Box |
Delivery Time: | 3-15D |
Payment Terms: | T/T, MoneyGram, Western Union |
Supply Ability: | 50000SET/D |
Material: | PVC | Color: | Black |
---|---|---|---|
Cable Structure: | Fine-wire Strand Made Of Bare Copper Wires | Temperature: | -5°C To + 70°C |
Application: | Electronics Of Computer Systems, Electronic Control Equipment, Office Machines | REEL: | 100M |
Highlight: | cables and wires,oil resistant cable |

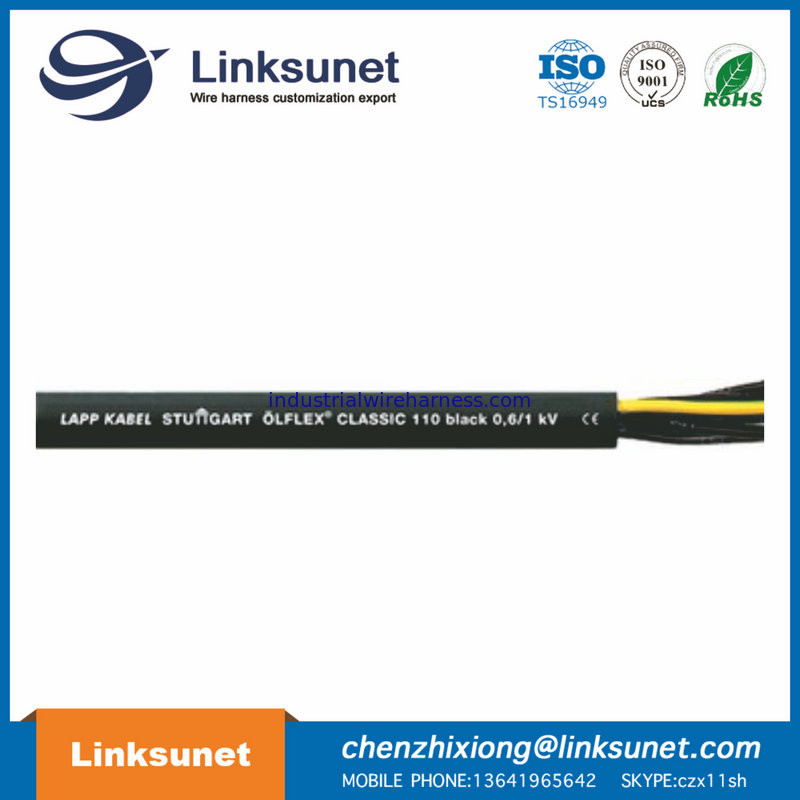

GROUP OLFLEX CLASSIC 110 BLACK / 1120232 / 2G , 0.75 / Material PVC
ÖLFLEX® CLASSIC 110 BLACK 0,6/1kV: power and control cable for various applications, PVC, conductor class 5, black cores, number coded, outdoors, direct burial
Product Description
Application range
Plant engineering
Industrial machinery
Heating and air-conditioning systems
Power stations
Stage applications
For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
Each dimension with nominal/ minimum average wall thickness of the outer sheath of at least 1.8 mm: For applications where a strengthened outer sheath may turn out to be advantageous
Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Product features
Flame-retardant according IEC 60332-1-2
UV and weather-resistant according to ISO 4892-2
Ozone-resistant according to EN 50396
Norm references / Approvals
Based on VDE 0250-1 and HD 627-1 S1
Product Make-up
Fine-wire strand made of bare copper wires
PVC insulation P8/1
PVC outer sheath, black (RAL 9005)
Technical Data
Classification |
ETIM 5 . 0 Class - ID : EC000104 |
ETIM 5 . 0 Class - Description : Control cable |
Core identification code |
Black with white numbers acc. to VDE 0293 -1 |
Mutual capacitance |
Fine wire according to VDE 0295 , |
class 5/IEC 60228 class 5 |
Torsion movement in WTG |
TW-0 & TW-1, refer to Appendix T0 |
Minimum bending radius |
Static/Occ. moved: 4/15xOD* |
Nominal voltage |
U0 / U : 600 / 1000 V |
Test voltage |
4000 V |
Protective conductor |
G = with GN-YE protective conductor |
X = without protective conductor |
Temperature range |
Occasional flexing : - 5 °C to + 70 °C |
Fixed installation : - 40 °C to + 80 °C |
We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know
Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
