| Place of Origin: | CHINA |
| Brand Name: | Amphenol |
| Certification: | UL / VDE / CE |
| Model Number: | LCC17-A3W3SM-2N0 |
| Minimum Order Quantity: | 100 / PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CARTON OR WOOD BOX |
| Delivery Time: | 5-15 WORK DAYS |
| COLOR: | BK | Material: | PA |
|---|---|---|---|
| PIN: | 3 | Lenght: | Customer Request |
| Connectro Type: | Soldering | Color Code: | DIN47100 |
| Highlight: | soldering automotive wire,tyco wiring harness |
||

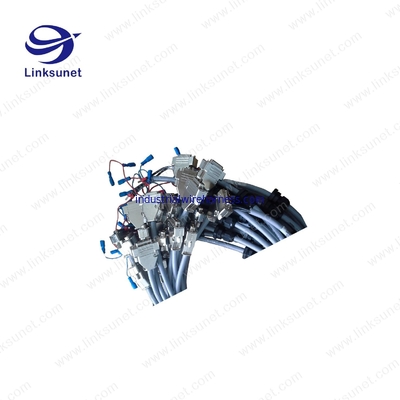

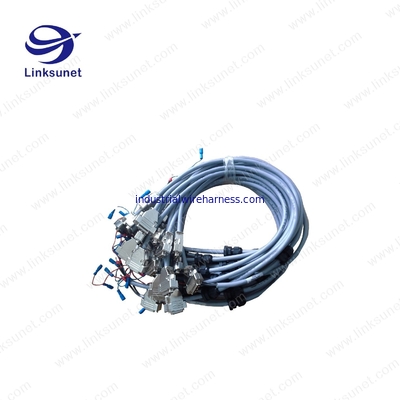

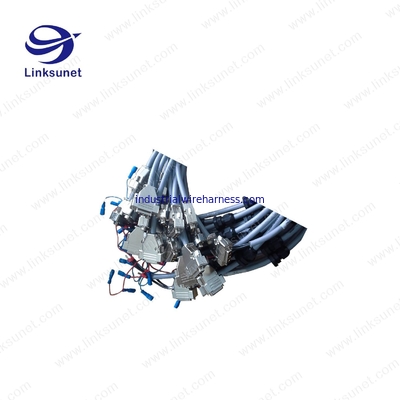

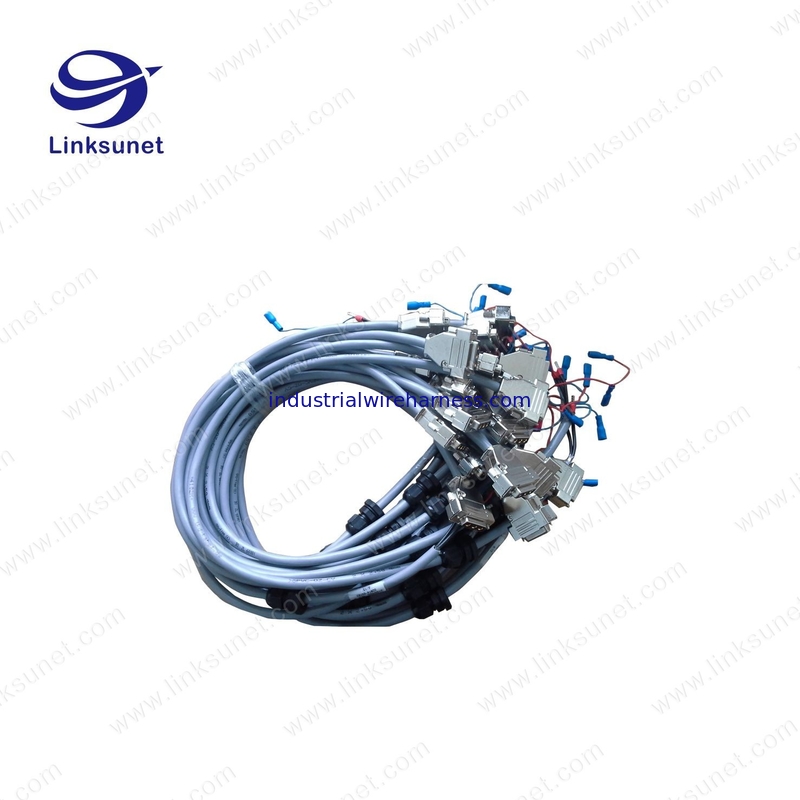

Large Current LCC17-A3W3SM-2N0 SLD CUP add Hood Soldering Wiring Harness Custom Processing / Black / PA
Documents & Media
| Datasheets |
LCC17 Brochure |
|---|---|
| Featured Product |
LCC17 Series Connectors View More
|
| Online Catalog | CoolPower ® , LCC17 Series |
| Product Attributes | Select All |
| Categories | Connectors , Interconnects |
|---|---|
| D - Sub Connectors | |
| Manufacturer | Amphenol Commercial Products |
| Series | CoolPower ® , LCC17 |
| Packaging | Bulk |
| Part Status | Active |
| Connector Style | D - Sub, Combo |
| Connector Type | Receptacle , Female Sockets |
| Number of Positions | 3 ( Power ) |
| Number of Rows | 1 |
| Shell Size , Connector Layout | 2 ( DA , A ) - 3W3 |
| Contact Type | Power |
| Mounting Type | Free Hanging ( In - Line ) |
| Flange Feature | Housing / Shell ( Unthreaded ) |
| Termination | Solder Cup |
| Features | - |
| Shell Material , Finish | Steel , Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30µin ( 0.76µm ) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V - 0 |
| Operating Temperature | - 40 °C ~ 105 °C |
| Voltage Rating | - |
| Current Rating | 55A |
| Color | Black |
| Contact Form | - |
| Housing Material | Thermoplastic , Glass Filled |
| Wire Gauge | - |
| Contact Material | Copper Alloy |
| Backset Spacing | - |
