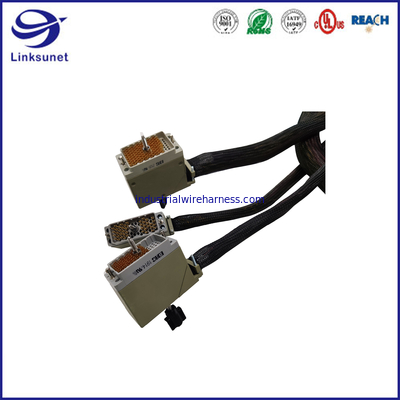

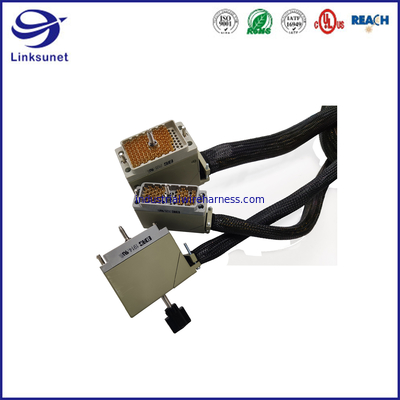

516 Series 3.81mm Pitch Large Current,Good Quality And Customized Rack and Panel Connectors for Wire Harness

516 Series 3.81mm Pitch Large Current,Good Quality And Customized Rack and Panel Connectors for Wire Harness

    • 516 Series 3.81mm Pitch Large Current,Good Quality And Customized Rack and Panel Connectors for Wire Harness
    • 516 Series 3.81mm Pitch Large Current,Good Quality And Customized Rack and Panel Connectors for Wire Harness
    • 516 Series 3.81mm Pitch Large Current,Good Quality And Customized Rack and Panel Connectors for Wire Harness
    • 516 Series 3.81mm Pitch Large Current,Good Quality And Customized Rack and Panel Connectors for Wire Harness
    • 516 Series 3.81mm Pitch Large Current,Good Quality And Customized Rack and Panel Connectors for Wire Harness
  • 516 Series 3.81mm Pitch Large Current,Good Quality And Customized Rack and Panel Connectors for Wire Harness

    Product Details:

    Place of Origin: CHINA
    Brand Name: EDAC
    Certification: ROHS
    Model Number: 516-20/38/56/90/120-000-XXX

    Payment & Shipping Terms:

    Minimum Order Quantity: -
    Price: Negotiable
    Delivery Time: 2-3week
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: Negotiable
    Contact Now
    Detailed Product Description
    Mrc: EDAC Series: 516
    Pin: 20,38,56,90,120 Pitch: 3.81mm
    Rated Current: 8.5A Temperature: -40℃ To +105℃
    Contact Material: Phosphor Bronze Alloy Color: Green Or Grey





    Rack and Panel Connectors EDAC



    Rack and panel connectors are industry-standard connectors with highly dependable contacts EDAC's backplane connectors offer ultra-high continuity and shock and vibration-proof connections. Hermaphroditic contacts mate at 90 degrees to each other, providing four points of contact and a gas-tight seal. Hoods and covers are available to protect connections and keep contaminants out.




    Features



    • Industry-standard connectors with highly dependable contacts
    • Hermaphroditic contact design for no-fail interconnections
    • Gold over nickel plating for wire-hole, PCB, wire-wrap, and crimp contacts
    • Crimp contacts available pre-installed, separately in bulk, or on a reel for automated process
    • In sizes of 20 to 120 positions with actuating screw or locknut, both with polarizing hardware
    • Plastic and metal covers with cable clamps for strain relief
    • Specifications
    • Insulator material: diallyl phthalate, thermoplastic polyester, or polycarbonate UL 94 V-0
    • Color: green or polycarbonate color grey
    • Contact material: copper alloy
    • Contact plating: gold plating over nickel over the entire contact
    • Current rating: 8.5 amperes
    • Contact resistance: 10 milliohms maximum
    • Withstanding voltage: 2000 VAC(rms) at sea level
    • Insulation resistance: 5000 megaohms minimum
    • Operating temp: -40°C to +105°C and -40°C to +125°C (diallyl phthalate only)
    • Insertion and withdrawal force: 2 oz to 16 oz (0.56 N to 4.45 N) per contact position





    Applications



    1. Audioideo patch bays
    2. Automotive test panels
    3. Oil and gas refinery systems
    4. Energy control panels
    5. Industrial automation panels





    Connector Description



    Type Description
    Category Connectors,Interconnects
    Backplane Connectors-Housings
    Mfr EDAC inc
    Series 516
    Package Bulk
    Part Status Active
    Connector Type Housing for Non-Gendered Contacts
    Connector Style Rack and Panel
    Number of Positions 20,38,56,90,120
    Pitch 0.15"(3.81mm)
    Mouting Type Varies by Contact
    Connector Usage Plug
    Features Jackscrew,Guide Pin
    Color Green or Grey
    Note Contacts Not Included

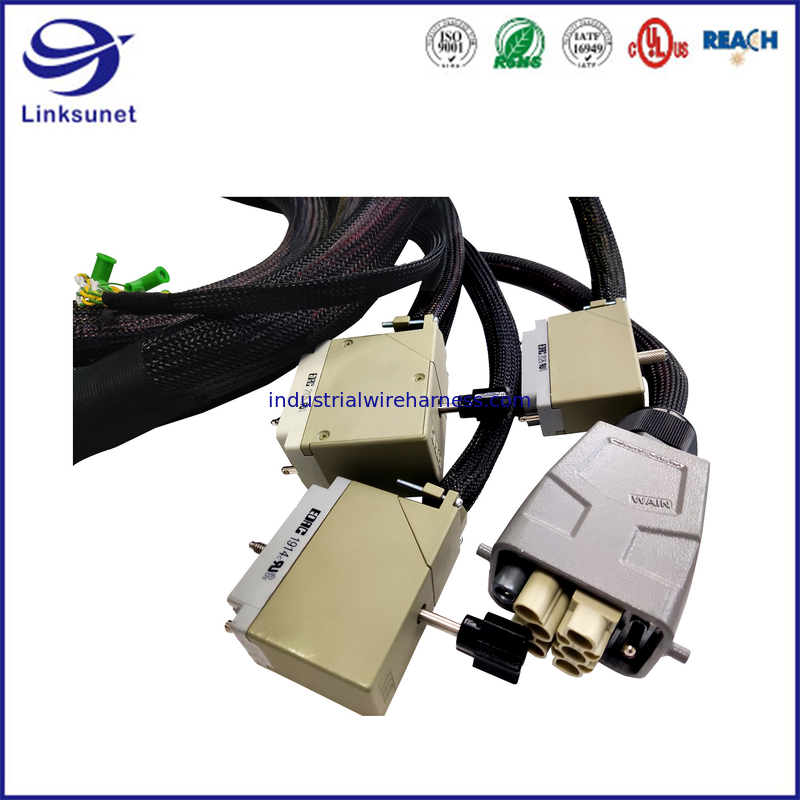

    516 Series 3.81mm Pitch Large Current,Good Quality And Customized Rack and Panel Connectors for Wire Harness



    EDAC 516 Series 3.81mm Rack and Panel Connectors
    1 516-020-000-101 516-020-000-105 516-020-000-301 516-020-000-305 20PIN
    2 516-038-000-101 516-038-000-105 516-038-000-301 516-038-000-305 38PIN
    3 516-056-000-101 516-056-000-105 516-056-000-301 516-056-000-305 56PIN
    4 516-090-000-101 516-090-000-105 516-090-000-301 516-090-000-305 90PIN
    5 516-120-000-101 516-120-000-105 516-120-000-301 516-120-000-305 120PIN






    Wire &cable Information



    German standard
    FLRY-B 0.35/0.5/0.75/1.5/2.5/4.0
    Japanese standard
    TXL 22AWG/20AWG/18AWG/16AWG/14AWG
    GXL 22AWG/20AWG/18AWG/16AWG/14AWG
    UL
    UL1007 UL1061 UL1015
    UL1569 UL3239 UL1430
    UL
    UL2464 UL20276 UL2586
    UL2733
    Jacket material
    PVC PE TPU
    PU TPE XLPE
    PUR PTFE Silicon rubber

    External protective materials
    PA flexible bellows
    PP bellows
    TPE Nylon Braided reticulated tube
    Electrical tape
    High temperature resistant flannel tape
    PVC sleeve
    Heat shrinkable tube

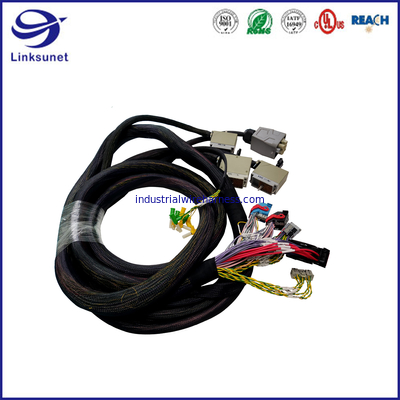

    516 Series 3.81mm Pitch Large Current,Good Quality And Customized Rack and Panel Connectors for Wire Harness

    FAQ
    MOQ 5-100000PCS
    LEAD TIME Production 2-3week
    Transportation FEDEX.UPS.DHL.SF.transportation line
    Payment method T/T,PAYPAL,ALIPAY,ALIBABA
    Production standard IPC/WHMA-A-620
    Product certification ROHS2.0/3.0,UL
    Factory related certification ISO9001/ITFA16949/ISO13485
