QC Profile

Basic standards for wire harness production :



IPC / WHMA - A - 620B



Electrical performance 100% test



Crimping control parameter


A:Crimp height



B:Crimping width



C:Terminal section analysis



IPC / WHMA - A - 620B



Requirements and Acceptance for Cable and Wire Harness Assemblies



Final Draft for Industry Review February 2012



Table 1 - 1 Electrical Clearnace



Voltage Set* Clearance

Up to 64

A

B

C

1.6mm [ 0.062in ]

3.2mm [ 0.125in ]

3.2mm [ 0.125in ]

Over 64 - 600

A

B

C

1.6mm [ 0.062in ]

3.2mm [ 0.125in ]

6.4mm [ 0.25in ]

Over 600 - 1000

A

B

C

3.2mm [ 0.125in ]

6.4mm [ 0.25in ]

12.7mm [ 0.5in ]

Over 1000 - 3000

C

50mm [ 2in ]

Over 3000 - 5000 C 75mm [ 3in ]





Table 3 - 1 Allowable Strand Damage



Number  of Strands Maximum allowable strands scraped , nicked  or severed for Calss 1 , 2

Maximum allowable strands scrapesd  nicked or severed for Class 3 for wires that

will not be tinned before

installation

Maximum allowable atrands

scraped ,  nicked or severed for Class 3 for

wires that will be tinned prior to installation

1

No damage in excess of 10% of conductor diameter < Sep 2011 >
2 - 6 0 0 0
7 - 15 1 0 1
16 - 25

3



0 2
26 - 40 4 3 3
41 - 60 5 4 4
61 - 120 6 5 5
121 or more 6% 5% 5%



Shanghai linksunet E&T Co.Ltd

Shanghai linksunet E&T Co.Ltd

Shanghai linksunet E&T Co.Ltd



Certification
  • Shanghai linksunet E&amp;T Co.Ltd

    Standard:ISO9001-CN

    Number:151439

    Issue Date:2021-08-18

    Expiry Date:2022-08-17

    Scope/Range:工业线束的技术开发及销售服务

    Issued By:DCI

  • Shanghai linksunet E&amp;T Co.Ltd

    Standard:ISO9001-EN

    Number:151439

    Issue Date:2021-08-18

    Expiry Date:2022-08-17

    Scope/Range:工业线束的技术开发及销售服务

    Issued By:DCI

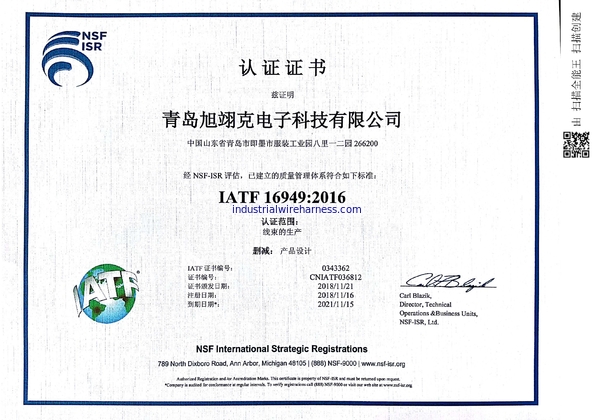

  • Shanghai linksunet E&amp;T Co.Ltd

    Standard:IATF-16949-2016-CN

    Number:0343362

    Issue Date:2018-11-16

    Expiry Date:2021-11-15

    Scope/Range:线束的生产

    Issued By:NSF

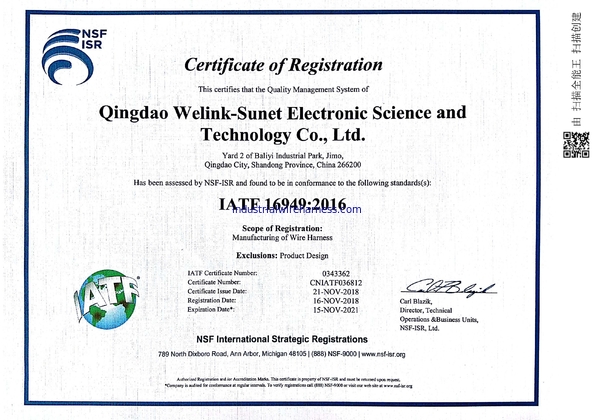

  • Shanghai linksunet E&amp;T Co.Ltd

    Standard:IATF-16949-2016-EN

    Number:0343362

    Issue Date:2018-11-16

    Expiry Date:2021-11-15

    Scope/Range:线束的生产

    Issued By:NSF

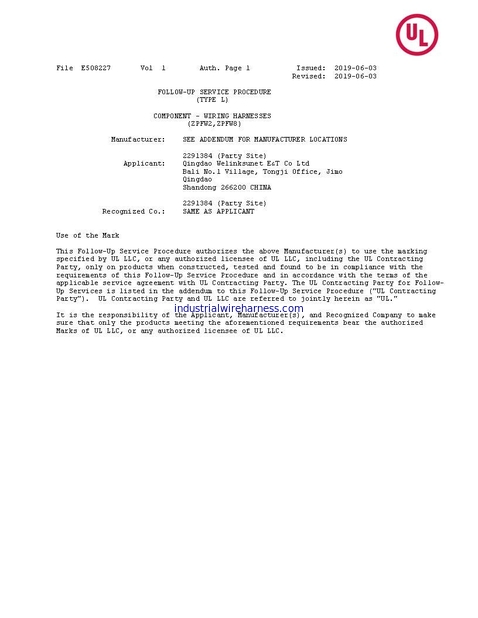

  • Shanghai linksunet E&amp;T Co.Ltd

    Standard:UL

    Number:E508227

    Issue Date:2019-06-03

    Scope/Range:WIRE HARNESS

    Issued By:UL
