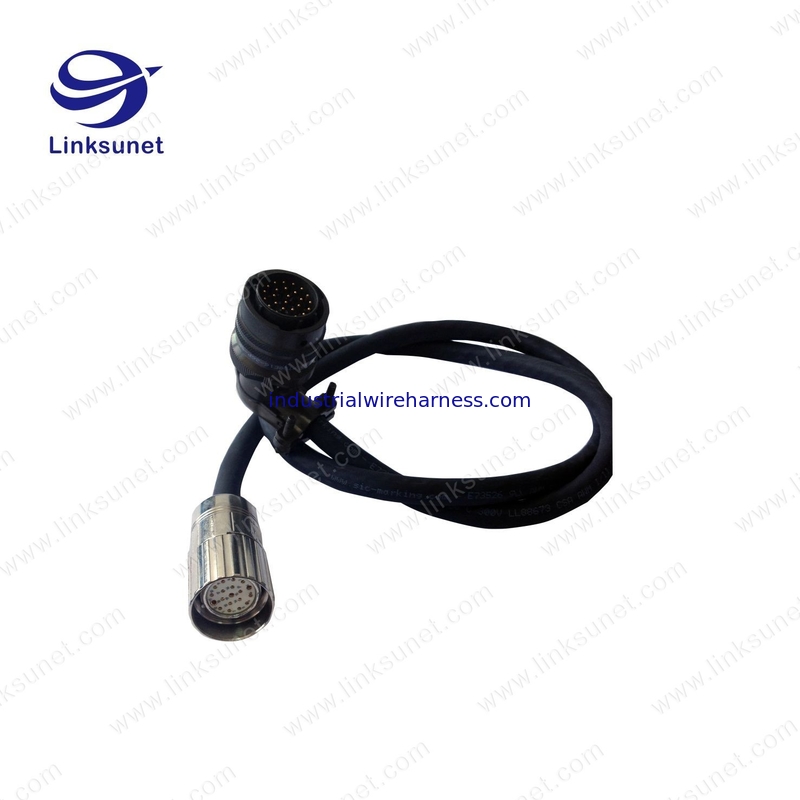

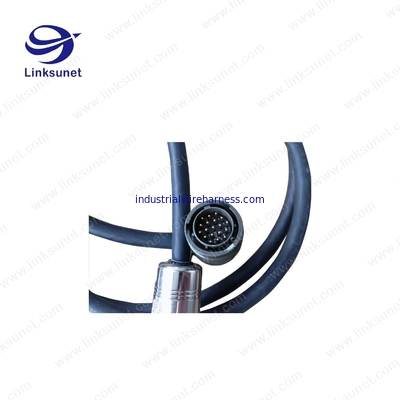

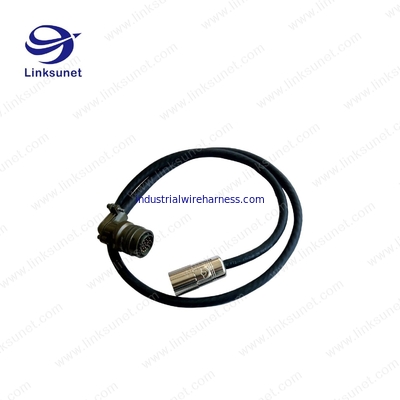

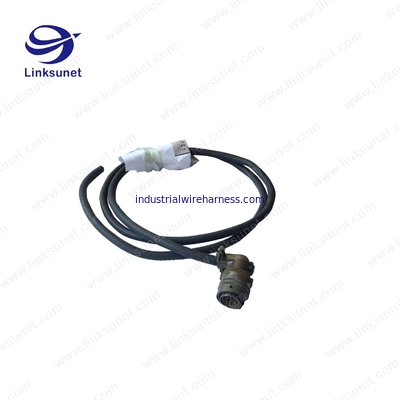

M23 19PIN Circular Connector Cable Assembly PT06A-16-26P High flexibility Industrial robot power wiring harness
Documents & Media
| Datasheets |
PT06A Drawing |
|---|---|
| Online Catalog | MIL - DTL - 26482 Series I , PT |
| Product Attributes | Select All |
| Categories | Connectors , Interconnects |
|---|---|
| Circular Connectors | |
| Manufacturer | Amphenol Industrial Operations |
| Series | MIL - DTL - 26482 Series I , PT |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | Plug , Male Pins |
| Number of Positions | 26 |
| Shell Size - Insert | 16 - 26 |
| Shell Size , MIL | - |
| Mounting Type | Free Hanging ( In - Line ) |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | N ( Normal ) |
| Ingress Protection | - |
| Shell Material, Finish | Aluminum , Olive Drab Cadmium Plated |
| Contact Finish | Gold |
| Features | - |
| Voltage - Rated | 600VAC |
| Current Rating | 7.5A |
| Contact Finish Thickness | - |
| Operating Temperature | - 55 °C ~ 125 °C |
Ocuments & Media
MIL-C-26482 Circular PIN 26 POS Solder RA Cable Mount 26 Terminal 1 Port
Manufacturer Part #: PT06A-16-26P
Connector Brand:Amphenol,ITT Cann,Deutsch,Yeonhab,INC
MIL5015 series
24682-I series
24682-II series
38999 series
VG95234 series
VG96929 series
MIL-C-22992 CLASS
This Miniature Cylindrical connectors offer twice the number of contacts in just half the size of a Standard connector. These miniature connectors, are available in several series, each with varying design characteristics and customer options to meet cost considerations and provide maximum design flexibility. There are two styles within the family that are MS approved and qualified to MIL-DTL-26482, Series 1, and in addition there are several proprietary styles. Common features of all styles: ul> All are for general duty applications and environmental sealing is achieved with the grommet and clamp design. Operating temperature is from –55°C to +125°; Operating voltage to 1000 VAC (RMS) at sea level. Pin and socket contacts are machined from low loss copper alloy and gold plated to eliminate contact corrosion and provide an indefinite shelf life. All have resilient inserts which provide high dielectric strength and moisture barrier. A variety of shell finishes (including non-cadmium) and a variety of backend accessories are available within the styles.
Technical Attributes
| Find similar Parts | |
| Body Orientation | Right Angle |
| Gender | PL |
| Contact Gender | PIN |
| Strain Relief | No |
| Contact Plating | Gold |
| Termination Method | Solder |
| Mounting | Cable Mount |
| Operating Temperature | - 55 to 125 °C |
| Contact Material | Copper Alloy |
| Contacts Classification | ( 20 / 6 ) Signal |
| Shell Size / Insert Arrangement | 20 - 26 |
| Product Diameter | 39.67 mm |
| Product Length | 68.45 mm |
