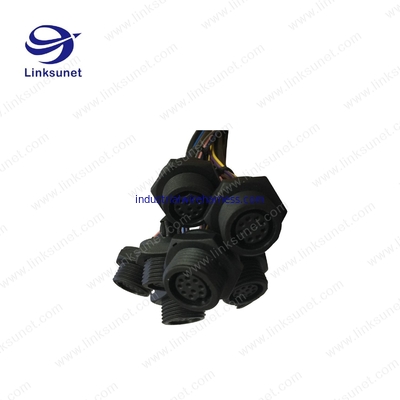

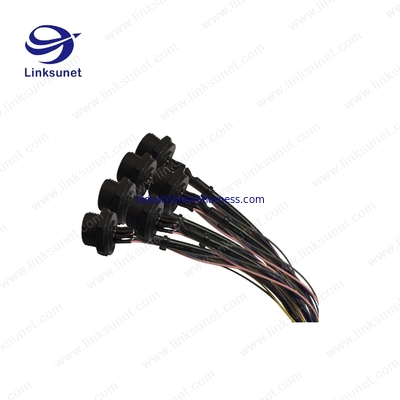

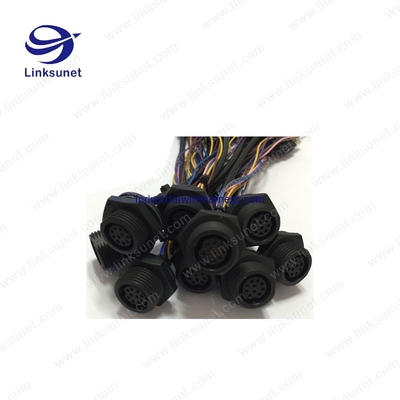

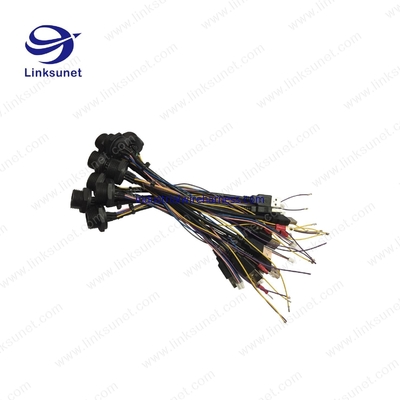

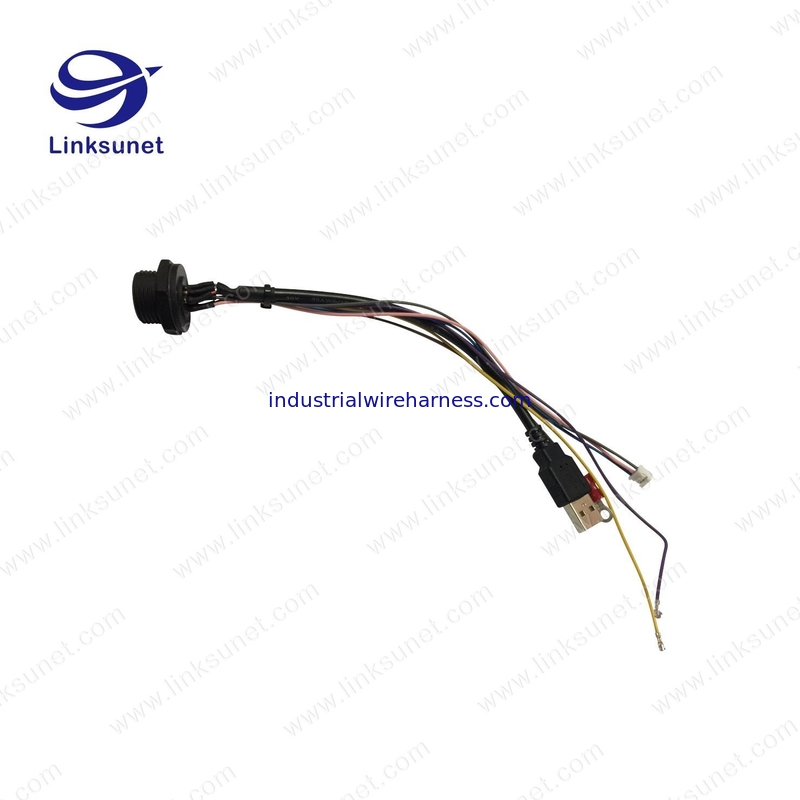

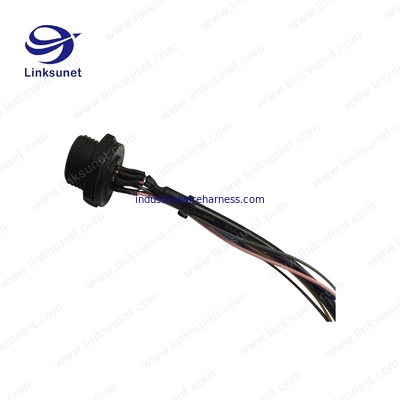

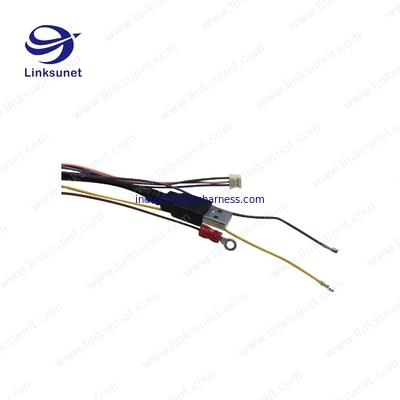

LED Connector Front Panel Mount lock bayonet type , solder add JST VHR-8N Soldering Wiring Harness / PVC / BK
Specifictations
|
Number of Contacts |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
3+5 |
9 |
10 |
|
Wire Gauge |
2.5mm 2 ( 14AWG ) |
1.0mm2 (18AWG ) |
0.75mm2 ( 18AWG ) |
0.34mm2 ( 22AWG ) |
1.0mm2 + 0.25mm2 17AWG + 24AWG |
0.34mm2 ( 22AWG ) |
0.25mm2 |
|||
|
Panel Thickness |
Max . 4.0mm |
Max . 4.0mm |
Max . 2.5mm |
|||||||
|
Environmental Protection |
IP68 |
IP67 |
IP67 |
|||||||
|
Mechanical Life |
500 mating cycles |
|||||||||
|
Operating Temperature |
- 45 ℃ ~ 105 ℃ |
|||||||||
|
Voltage Rating |
300V |
300V |
300V |
125V |
125V |
60V |
60V |
125 + 30V |
60V |
30V |
|
Rated Current ( 40 ℃ ) |
20A |
20A |
15A |
10A |
10A |
5A |
5A |
15A + 2A |
5A |
5A |
JST
Documents & Media
| Product Attributes | Select All |
|
Categories |
Connectors , Interconnects |
|---|---|
| Rectangular Connectors - Housings | |
|
Manufacturer |
JST Sales America Inc. |
|
Series |
VH |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Connector Type |
Receptacle |
|
Contact Type |
Female Socket |
|
Number of Positions |
8 |
|
Pitch |
0.156 " ( 3.96mm ) |
|
Number of Rows |
1 |
|
Row Spacing |
- |
|
Mounting Type |
Free Hanging ( In - Line ) |
|
Contact Termination |
Crimp |
|
Fastening Type |
Latch Lock |
|
Color |
Natural |
|
Features |
- |
|
Note |
Contacts Not Included |
