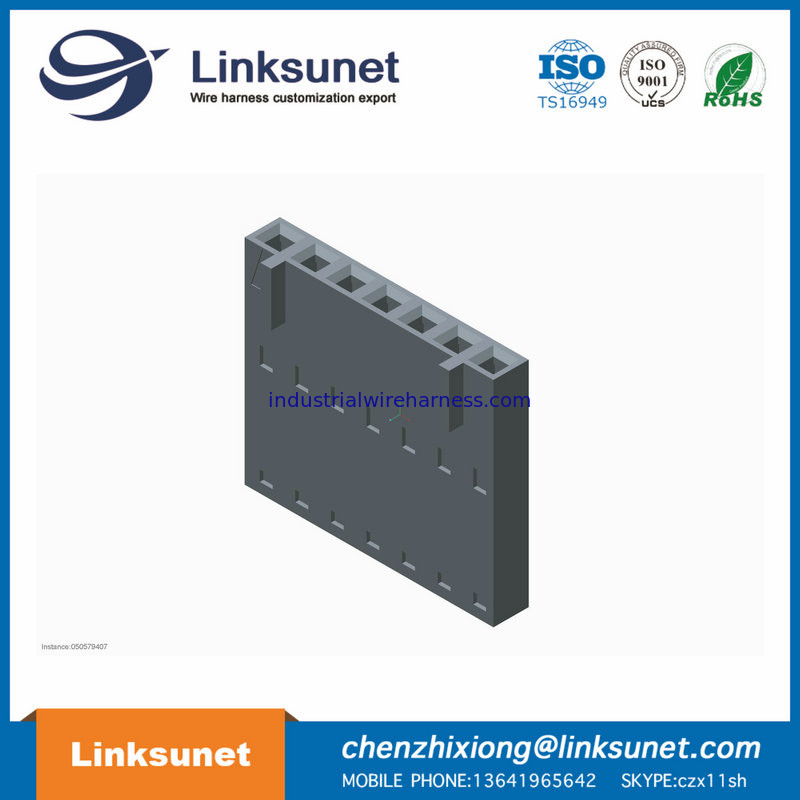

Black Male Female Wire Connectors 50 - 57 - 9407 MOLEX Crimp Connector Housing

Black Male Female Wire Connectors 50 - 57 - 9407 MOLEX Crimp Connector Housing

Black Male Female Wire Connectors 50 - 57 - 9407 MOLEX Crimp Connector Housing

Product Details:

Place of Origin: JAPA
Brand Name: MOLEX
Certification: ROHS
Model Number: 50 - 57 - 9407

Payment & Shipping Terms:

Minimum Order Quantity: 100set
Price: Negotiable
Packaging Details: Carton or Wood Box
Delivery Time: 3-15D
Payment Terms: T/T, MoneyGram, Western Union
Supply Ability: 50000SET/D
Contact Now
Detailed Product Description
Overview: SL Modular Connectors Color: Black
Category: Crimp Housings Series: 70066
Pitch: 2.54mm UL: E29179
High Light:

male female cable connector

,

male and female wire connectors

Part Number : 50 - 57 - 9407



SL™ Crimp Housing, Single Row, Version G, Positive Latch, 7 Circuits



Black Male Female Wire Connectors 50 - 57 - 9407 MOLEX Crimp Connector Housing        Series image - Reference only



Status : Active



Series : 70066



Category : Crimp Housings



Overview : SL™ Modular Connectors



Engineering/Old PN : 70066-0181



Part Detail



General



Status

Active

Category

Crimp Housings

Series

70066

Application

Signal , Wire - to - Board

Comments

Version G
Use with CyClone Panel - to - Panel Connector 73099

Overview

SL™ Modular Connectors

Product Name

CyClone , SL™

UPC

800753724679



Physical



Circuits ( maximum )

7

Color - Resin

Black

Flammability

94V - 0

Gender

Receptacle

Glow - Wire Compliant

No

Keying to Mating Part

Yes

Lock to Mating Part

Yes

Material - Resin

Polyester Alloy

Net Weight

0.680 / g

Number of Rows

1

Packaging Type

Bag

Panel Mount

No

Pitch - Mating Interface

2.54mm

Stackable

No

Temperature Range - Operating

- 40 °C to + 105 °C



Electrical



( Please review the Product Specification for specific details . )

Current - Maximum per Contact

3.0A



Agency Certification



Please find UL Certificates by searching the UL Database using the Molex Series Number . Click here to visit the UL Database

CSA

LR19980

UL

E29179



Solder Process Data



Solderability Shelf Life Statement

Lead - freeProcess Capability

N / A



Material Info



Engineering Number

70066 - 0181



Reference - Drawing Numbers



Packaging Specification

PK - 70066 - 100

Product Specification

PS - 70058-001 , PS - 70400-001, PS - 71851 - 001 ,

TS - 70058 - 001 - 001 , TS - 70541 - 001 - 001

Sales Drawing

SD - 70066 - 0176 - 0199



We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know



Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.

Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
