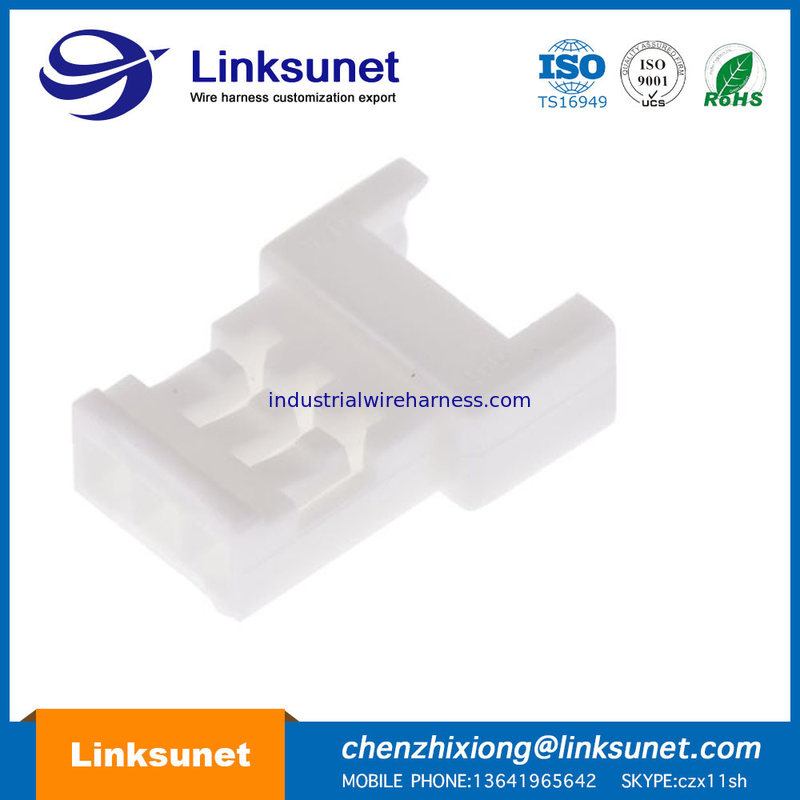

Single Row Auto Electrical Wiring Harness 51047 Series 1.25mm Pich Ul Standard

Single Row Auto Electrical Wiring Harness 51047 Series 1.25mm Pich Ul Standard

Single Row Auto Electrical Wiring Harness 51047 Series 1.25mm Pich Ul Standard

Product Details:

Place of Origin: China
Brand Name: Molex
Certification: UL/CE / ISO / TS16949 / IPC-620D
Model Number: 51047-0300+50125-8000

Payment & Shipping Terms:

Minimum Order Quantity: 100set
Price: Negotiable
Packaging Details: Carton or Wood Box
Delivery Time: 3-15D
Payment Terms: T/T,PAYPAL,ALIPAY
Supply Ability: 5000SET/D
Contact Now
Detailed Product Description
Material: PA6 Color: Bk
Pich4: 1.25mm Cable: UL1061-26-28AWG
PIN: 3 Wire Material: PVC

3P 1 . 25MM PICH Automotive wire harness Single row Connector Add UL standard Single cable / Material PVC





PLUG HSG



JACK HSG

1

51021 - 0200

2P , UL94 - V0

51047 - 0200

2

51021 - 0300

3P , UL94 - V0

51047 - 0300

3

51021 - 0400

4P , UL94 - V0

51047 - 0400

4

51021 - 0500

5P , UL94 - V0

51047 - 0500

5

51021 - 0600

6P , UL94 - V0

51047 - 0600

6

51021 - 0700

7P , UL94 - V0

51047 - 0700

7

51021 - 0800

8P , UL94 - V0

51047 - 0800

8

51021 - 0900

9P , UL94 - V0

51047 - 0900

9

51021 - 1000

10P , UL94 - V0

51047 - 1000

10

51021 - 1100

11P , UL94 - V0

51047 - 1100

11

51021 - 1200

12P , UL94 - V0

51047 - 1200

12

51021 - 1300

13P , UL94 - V0

51047 - 1300

13

51021 - 1400

14P , UL94 - V0

51047 - 1400

14

51021 - 1500

15P , UL94 - V0

51047 - 1500

15

50058 - 8000



50125 - 8000



Status

Active

Category

Crimp Housings

Series

51047

Application

Signal, Wire-to-Wire

Current Derating Order No

987651-3691

Overview

PicBladeTM Connector System

Product Name

PicoBlade™

UPC

800753630420



Physical



Circuits ( maximum )

2 - 15

Color - Resin

Natural

Gender

Plug

Glow-Wire Compliant

No

Lock to Mating Part

Yes

Material - Resin

Polyester

Net Weight

68.000/mg

Number of Rows

1

Packaging Type

Bag

Panel Mount

No

Pitch - Mating Interface

1 . 25mm

Stackable

No

Temperature Range - Operating

- 40 °C to + 85 °C



Agency Certification



Please find UL Certificates by searching the UL Database using the Molex Series Number .  Click here to visit the UL Database

UL

E29179



Reference - Drawing Numbers



Product Specification

PS - 51021 - 009 - 001

Sales Drawing

SD - 51047 -* * 00



We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know


Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
