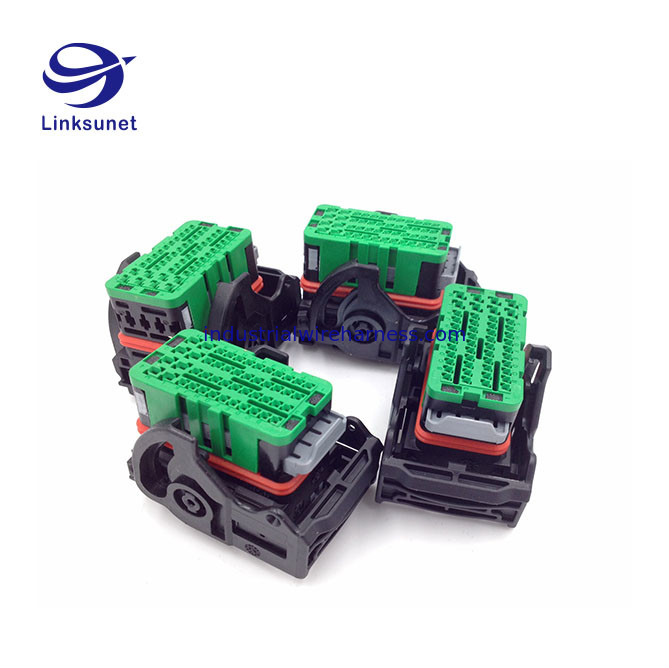

Molex 48pin 64320-1315 Receptacle connector for automotive wiring harness 1 days can shipment in shanghai

Molex 48pin 64320-1315 Receptacle connector for automotive wiring harness 1 days can shipment in shanghai

    • Molex 48pin 64320-1315 Receptacle connector for automotive wiring harness  1 days can shipment in shanghai
    • Molex 48pin 64320-1315 Receptacle connector for automotive wiring harness  1 days can shipment in shanghai
  • Molex 48pin 64320-1315 Receptacle connector for automotive wiring harness  1 days can shipment in shanghai

    Product Details:

    Place of Origin: USA
    Brand Name: Molex
    Model Number: 64320-1315

    Payment & Shipping Terms:

    Minimum Order Quantity: 50PCS
    Price: USD3.2/PCS
    Packaging Details: 15*15*10
    Delivery Time: 1D
    Payment Terms: T/T,PAYPAL,ALIPAY
    Supply Ability: 440PCS/1D
    Contact Now
    Detailed Product Description
    Name: CMC RCPT Pin: 48pin
    Colour: BK/GN Stock: Spot

    Documents & Media
    Datasheets 0643201315

    Environmental Information 0643201315 RoHS Cert of Compliance

    Mfg CAD Models 64320-1315.stp

    PCN Design/Specification 64319, 64320 Marking 23/Apr/2015

    PCN Other 64319,64320,98993 Supplier 21/Mar/2014

    3D Drawings 0643201315.pdf

    Product Attributes
    TYPE DESCRIPTION SELECT ALL
    Categories
    Manufacturer Molex
    Series CMC 64320
    Packaging Bulk
    Part Status Active
    Connector Type Receptacle
    Contact Type Female Socket
    Number of Positions 48
    Pitch -
    Number of Rows 4
    Row Spacing -
    Mounting Type Free Hanging (In-Line)
    Contact Termination Crimp
    Fastening Type Latch Holder
    Color Green
    Features Left Wire Output, Sealed
    Note Contacts Not Included



    General

    Status Active
    Category Crimp Housings
    Series 64320
    Application Automotive, Power, Wire-to-Board
    Comments * Current tested on a 5 terminals loaded connector, current for temperature increase of 40°C
    Current max = 6.0A for 0.635mm Terminal (0.75mm² wire) and 12.0A for 1.50mm Terminal (2.00mm² wire) *, * Current tested on a 5 terminals loaded connector, current for temperature increase of 40°C
    Current max = 6.0A for 0.635mm Terminal (0.75mm² wire) and 12.0A for 1.50mm Terminal (2.00mm² wire) *
    More Detailed Tech Information Sealed, high-density, modular connecting system for Power Train and Body Electronics applications in cars, trucks, busses
    Overview CMC and CMX Sealed, Hybrid, Modular Connectors
    Product Name CMC
    UPC 883906131111
