| Place of Origin: | JAPA |
| Brand Name: | TYCO/TE/AMP |
| Certification: | ROHS |
| Model Number: | 3-520132-2 |
| Minimum Order Quantity: | 100set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Wood Box |
| Delivery Time: | 3-15D |
| Payment Terms: | T/T, MoneyGram, Western Union |
| Supply Ability: | 50000SET/D |
| Material: | TIN | Color: | WT |
|---|---|---|---|
| Pich: | 6.35MM | Cable: | 18AWG |
| PIN: | 1 | Wire Material: | PVC |
| High Light: | male and female connectors,male female cable connector |
||

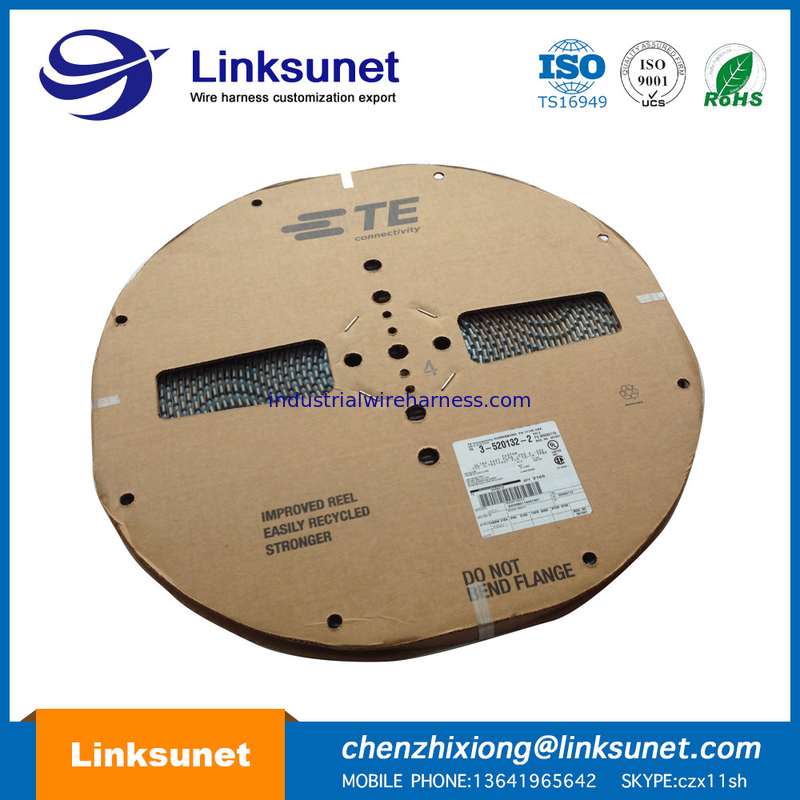

TYCO AMP TE 14 - 16AWG Male Female Wire Connector Female Ultra - Fast Terminals 3 - 520132 - 2 Goods in Stock
Shanghai spot stock:7780PCS
Product Details
Documents & Media
|
Datasheets |
520132 |
|---|---|
|
RoHS Information |
3 - 520132 - 2 Statement of Compliance |
|
Featured Product |
FASTON Terminals , Receptacles , and Tabs |
|
3D Drawings |
3 - 520132 - 2 . pdf |
|
Online Catalog |
Ultra - Fast Series |
|
Product Attributes |
Select All |
|
Categories |
Connectors , Interconnects |
|---|---|
|
Terminals - Quick Connects , Quick Disconnect Connectors |
|
|
Manufacturer |
TE Connectivity AMP Connectors |
|
Series |
Ultra - Fast |
|
Packaging |
Tape & Reel ( TR ) |
|
Part Status |
Active |
|
Terminal Type |
Angled - 90 ° , Flag |
|
Gender |
Female |
|
Tab Width |
0 . 250 " ( 6 . 35mm ) |
|
Tab Thickness |
0 . 032 " ( 0 . 81mm ) |
|
Tab Length |
- |
|
Length - Overall |
- |
|
Termination |
Crimp |
|
Wire Gauge |
14 - 16 AWG |
|
Insulation |
Fully Insulated |
|
Mounting Type |
Free Hanging ( In - Line ) , Right Angle |
|
Features |
- |
|
Color |
Blue |
|
Contact Material |
Brass |
|
Contact Finish |
Tin |
|
Insulation Diameter |
0 . 185 " ( 4 . 70mm ) |
We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know
Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
