43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen

43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen

    • 43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen
    • 43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen
    • 43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen
    • 43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen
    • 43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen
    • 43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen
  • 43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen

    Product Details:

    Place of Origin: JAPA
    Brand Name: MOLEX
    Certification: ROHS
    Model Number: 43645-0300

    Payment & Shipping Terms:

    Minimum Order Quantity: 100set
    Price: Negotiable
    Packaging Details: Carton or Wood Box
    Delivery Time: 3-15D
    Payment Terms: T/T, MoneyGram, Western Union
    Supply Ability: 50000SET/D
    Contact Now
    Detailed Product Description
    Overview: Micro-Fit 3.0 Connector System Product Family Color: Black
    Category: Crimp Housings Series: 43645
    Pitch: 3.00mm UL: E29179

    Series : 43645



    Category : Crimp Housings



    Overview : Micro-Fit 3.0 Connector System Product Family



    Connector housing :



    1 43645 - 0200 Single row 3.0MM , 1 * 2 2PIN connector
    2 43645 - 0300 Single row 3.0MM , 1 * 3 3PIN connector
    3 43645 - 0400 Single row 3.0MM , 1 * 4 4PIN connector
    4 43645 - 0500 Single row 3.0MM , 1 * 5 5PIN connector

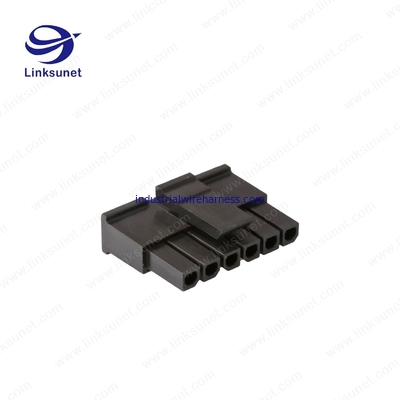

    5 43645 - 0600 Single row 3.0MM , 1 * 6 6PIN connector

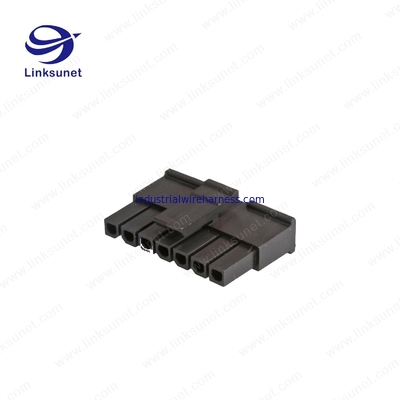

    6 43645 - 0700 Single row 3.0MM , 1 * 7 7PIN connector
    7 43645 - 0800 Single row 3.0MM , 1 * 8 8PIN connector
    8 43645 - 0900 Single row 3.0MM , 1 * 9 9PIN connector

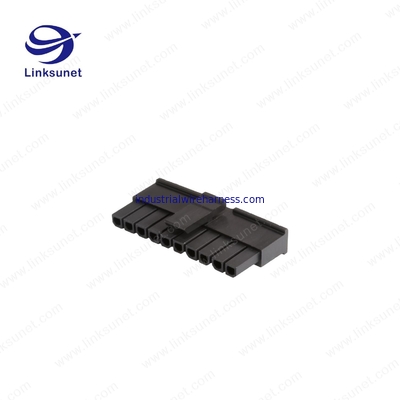

    9 43645 - 1000 Single row 3.0MM , 1 * 10 10PIN connector
    10 43645 - 1100 Single row 3.0MM , 1 * 11 11PIN connector
    11 43645 - 1200 Single row 3.0MM , 1 * 12 12PIN connector



    1 43640 - 0200 Single row 3.0MM , 1 * 2 , with panel mounts 2PIN connector
    2 43640 - 0300 Single row 3.0MM , 1 * 3 , with panel mounts 3PIN connector
    3 43640 - 0400 Single row 3.0MM , 1 * 4 , with panel mounts 4PIN connector
    4 43640 - 0500 Single row 3.0MM , 1 * 5 , with panel mounts 5PIN connector
    5 43640 - 0600 Single row 3.0MM , 1 * 6 , with panel mounts 6PIN connector
    6 43640 - 0700 Single row 3.0MM , 1 * 7 , with panel mounts 7PIN connector
    7 43640 - 0800 Single row 3.0MM , 1 * 8 , with panel mounts 8PIN connector
    8 43640 - 0900 Single row 3.0MM , 1 * 9 , with panel mounts 9PIN connector
    9 43640 - 1000 Single row 3.0MM , 1 * 10 , with panel mounts 10PIN connector
    10 43640 - 1100 Single row 3.0MM , 1 * 11 , with panel mounts 11PIN connector
    11 43640 - 1200 Single row 3.0MM , 1 * 12 , with panel mounts 12PIN connector



    1 43640 - 0201 Single row 3.0MM , 1 * 2 , without panel mounts 2PIN connector
    2 43640 - 0301 Single row 3.0MM , 1 * 3 , without panel mounts 3PIN connector
    3 43640 - 0401 Single row 3.0MM , 1 * 4 , without panel mounts 4PIN connector
    4 43640 - 0501 Single row 3.0MM , 1 * 5 , without panel mounts 5PIN connector
    5 43640 - 0601 Single row 3.0MM , 1 * 6 , without panel mounts 6PIN connector
    6 43640 - 0701 Single row 3.0MM , 1 * 7 , without panel mounts 7PIN connector
    7 43640 - 0801 Single row 3.0MM , 1 * 8 , without panel mounts 8PIN connector
    8 43640 - 0901 Single row 3.0MM , 1 * 9 , without panel mounts 9PIN connector
    9 43640 - 1001 Single row 3.0MM , 1 * 10 , without panel mounts 10PIN connector
    10 43640 - 1101 Single row 3.0MM , 1 * 11 , without panel mounts 11PIN connector
    11 43640 - 1201 Single row 3.0MM , 1 * 12 , without panel mounts 12PIN connector

    Male Termail+Female Termial

    1 43031 - 0001 20 - 24AWG , CHAIN TIN
    2 43031 - 0002 20 - 24AWG , CHAIN GOLD
    3 43031 - 0003 20 - 24AWG , CHAIN GOLD
    4 43031 - 0004 26 - 30AWG , CHAIN TIN
    5 43031 - 0005 26 - 30AWG , CHAIN GOLD
    6 43031 - 0006 26 - 30AWG , CHAIN GOLD
    7 43031 - 0007 20 - 24AWG , LOOSE TIN
    8 43031 - 0008 20 - 24AWG , LOOSE GOLD
    9 43031 - 0009 20 - 24AWG , LOOSE GOLD
    10 43031 - 0010 26 - 30AWG , LOOSE TIN
    11 43031 - 0011 26 - 30AWG , LOOSE GOLD
    12 43031 - 0012 26 - 30AWG , LOOSE GOLD



    1 43030 - 0001 20 - 24AWG , CHAIN TIN
    2 43030 - 0002 20 - 24AWG , CHAIN GOLD
    3 43030 - 0003 20 - 24AWG , CHAIN GOLD
    4 43030 - 0004 26 - 30AWG , CHAIN TIN
    5 43030 - 0005 26 - 30AWG , CHAIN GOLD
    6 43030 - 0006 26 - 30AWG , CHAIN GOLD
    7 43030 - 0007 20 - 24AWG , LOOSE TIN
    8 43030 - 0008 20 - 24AWG , LOOSE GOLD
    9 43030 - 0009 20 - 24AWG , LOOSE GOLD
    10 43030 - 0010 26 - 30AWG , LOOSE TIN
    11 43030 - 0011 26 - 30AWG , LOOSE GOLD
    12 43030 - 0012 26 - 30AWG , LOOSE GOLD
    13 43030 - 0038 UL1061 - 18AWG , CHAIN TIN

    Datasheets 43645 - 0600
    Micro - Fit Single Row Prod Spec
    Product Training Modules Power Connectors
    RoHS Information 0436450600 Cert of Compliance
    Featured Product Power Connectors
    Mfg CAD Models 43645 - 0600 . stp
    0436450600 . pdf
    PCN Design/Specification Micro - Fit Resin 20 / Aug / 2010
    Micro - Fit Test Summary 12 / Aug / 2010
    PCN Other Various Series Supplier Change 23 / Jul / 2014
    Online Catalog Micro - Fit 3.0 ™ Series

    Product Attributes Select All
    Categories Connectors , Interconnects
    Rectangular Connectors - Housings
    Manufacturer Molex , LLC
    Series Micro - Fit 3.0 ™ 43645
    Packaging Bulk
    Part Status Active
    Connector Type Receptacle
    Contact Type Female Socket
    Number of Positions 6
    Pitch 0.118" ( 3.00mm )
    Number of Rows 1
    Row Spacing -
    Mounting Type Free Hanging ( In - Line )
    Contact Termination Crimp
    Fastening Type Latch Lock
    Color Black





    UL standard internal wiring
    UL1007 Hook-up Wire
    UL1015 Hook-up Wire
    UL1061 Hook-up Wire
    UL1185 Single Conductor Shielded Cable
    UL1316 Reinforced Hook-up Wire
    UL1330 FEP Insulated Wire
    UL1430 Crosslinked PVC Insulated Wire
    UL1452 Reinforced Hook-up Wire
    UL1533 Single Conductor Shielded Cable
    UL1569 Hook-up Wire
    UL1571 Hook-up Wire
    UL1672 Reinforced Hook-up Wire
    UL10064 FEP Insulated Wire
    UL10086 High Temperature Resistant Hook-up Wire
    UL10097 Crosslinked PVC Insulated Wire
    UL10272 Hook-up Wire
    UL10308 High Temperature Resistant Hook-up Wire
    UL2464 Multi-Conductor Shielded Cable
    UL2468 Flat Ribbon Wire
    UL2509 Multi-Conductor Cable
    UL2517 Multi-Conductor Shielded Cable
    UL2547 Multi-Conductor Shielded Cable
    UL2552 Multi-Conductor Shielded Cable
    UL2576 Multi-Conductor Cable
    UL2586 Multi-Conductor Cable
    UL2651 Flat Ribbon Wire
    UL2725 Multi-Conductor Shielded Cable
    UL2835 Multi-Conductor Shielded Cable
    UL2854 Multi-Conductor Shielded Cable
    UL2919 Low Voltage Multi-Conductor Shielded Cable
    UL20276 Multi-Conductor Shielded Cable
    UL20379 Multi-Conductor Shielded Cable
    UL21149 Multi-Conductor Shielded Cable
    UL21520 Multi-Conductor Cable
    UL3443 Hook-up Wire

    UL halogen-free wire
    UL11027 Hook-up Wire
    UL10983 Single Conductor Shielded Cable
    UL10982 Hook-up Wire
    UL10981 Hook-up Wire
    UL10984 Reinforced Hook-up Wire
    UL10986 Single Conductor Shielded Cable
    UL10987 Hook-up Wire
    UL11025 Hook-up Wire
    UL11028 Hook-up Wire
    UL11029 Hook-up Wire
    UL11045 Reinforced Hook-up Wire
    UL11047 Reinforced Hook-up Wire
    UL21451 Double Shielded Cable
    UL21452 Double Shielded Cable
    UL21455 Multi-Conductor Shielded Cable
    UL21456 Multi-Conductor Shielded Cable
    UL21457 Multi-Conductor Shielded Cable
    UL21458 Flat Ribbon Wire
    UL21461 Multi-Conductor Shielded Cable
    UL21474 Multi-Conductor Shielded Cable
    UL21476 Multi-Conductor Shielded Cable
    UL21515 Flat Ribbon Wire
    UL21517 Multi-Conductor Shielded Flat Ribbon Wiree

    Industrial electric wire

    Flexible Single Core Cable
    Flexible Multi-core Torsion Cable
    Flexible Multi-core Shielded/Non-Shielded Control Cable

    VDE standard wire

    LifY Single Core,extra fine wires with highest flexibility
    LIYY-Command Cable (Style 2464/300 V, (80°C)
    LIYY-TP-Command Cable-Twisted (Style 2464/300 V, (80°C)
    LIYCY-Shielding Command Cable (Style 2464/300 V, (80°C)
    LIYCY-TP-Shielding Command Cable-Twisted (Style 2464/300 V, (80°C)

    Automotive wire

    FLRY-A Automotive Wire Series
    FLRY-B Automotive Wire Series
    FLRYW Automotive Wire Series

    TWP Automotive Wire Series
    TXL Automotive Wire Series
    GXL Automotive Wire Series
    AVS Automotive Wire Series
    AVSS Automotive Wire Series

    Packaging & Shipping

    Export cartons
    (406mm*306mm*250mm)



    43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen 43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen
    43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen 43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen
    43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen 43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen



    43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen



    43645 Molex Micro Fit 3.0 Connectors Receptacle Single Row 3 Circuits Low Halogen
