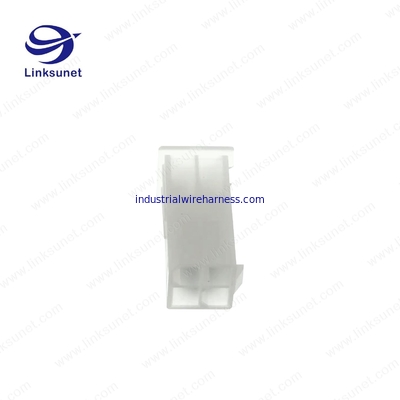

MOLEX Male Female Wire Connectors 5559 Mini Fit Jr Plug Housing Dual Row 2 Circuits

MOLEX Male Female Wire Connectors 5559 Mini Fit Jr Plug Housing Dual Row 2 Circuits

    • MOLEX Male Female Wire Connectors 5559 Mini Fit Jr Plug Housing Dual Row 2 Circuits
    • MOLEX Male Female Wire Connectors 5559 Mini Fit Jr Plug Housing Dual Row 2 Circuits
    • MOLEX Male Female Wire Connectors 5559 Mini Fit Jr Plug Housing Dual Row 2 Circuits
    • MOLEX Male Female Wire Connectors 5559 Mini Fit Jr Plug Housing Dual Row 2 Circuits
    • MOLEX Male Female Wire Connectors 5559 Mini Fit Jr Plug Housing Dual Row 2 Circuits
  • MOLEX Male Female Wire Connectors 5559 Mini Fit Jr Plug Housing Dual Row 2 Circuits

    Product Details:

    Place of Origin: JAPA
    Brand Name: MOLEX
    Certification: ROHS
    Model Number: 39-01-3023

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: Carton or Wood Box
    Delivery Time: 3-15D
    Payment Terms: T/T, MoneyGram, Western Union
    Supply Ability: 10000pcs/D
    Contact Now
    Detailed Product Description
    Overview: Mini-Fit Jr. Power Connectors Color: Natural
    Category: Crimp Housings Application: Power, Wire-to-Board, Wire-to-Wire
    Pitch: 4.20mm UL: E29179

    Part Number : 39-01-3023



    Mini-Fit Jr.™ Plug Housing, Dual Row, 2 Circuits, UL 94V-2, without Panel Mounting Ears , Natural



    Status:Active



    Series:5559



    Category:Crimp Housings



    Overview:Mini-Fit Jr. Power Connectors



    Engineering / Old PN:5559-02P1



    Part Detail



    Category Crimp Housings

    Series

    5559

    Circuits ( maximum )

    2

    Color - Resin

    Natural

    Flammability

    94V - 2

    Gender

    Plug

    Lock to Mating Part

    Yes

    Material - Resin

    Nylon

    Number of Rows

    2

    Pitch - Mating Interface

    4 . 20mm

    Pitch - Termination Interface

    4 . 20mm

    Temperature Range - Operating

    - 40 °C to + 105 °C





      39 - 01 - 2021 5559 - 02P V2 - NATURAL
      39 - 01 - 2041 5559 - 04P V2 - NATURAL
      39 - 01 - 2061 5559 - 06P V2 - NATURAL
      39 - 01 - 2081 5559 - 08P V2 - NATURAL
      39 - 01 - 2101 5559 - 10P V2 - NATURAL
      39 - 01 - 2121 5559 - 12P V2 - NATURAL
      39 - 01 - 2141 5559 - 14P V2 - NATURAL
      39 - 01 - 2161 5559 - 16P V2 - NATURAL
      39 - 01 - 2181 5559 - 18P V2 - NATURAL
      39 - 01 - 2201 5559 - 20P V2 - NATURAL
      39 - 01 - 2221 5559 - 22P V2 - NATURAL
      39 - 01 - 2241 5559 - 24P V2 - NATURAL
      39 - 01 - 2026 5559 - 02P - 210 V0 - NATURAL
      39 - 01 - 2026 5559 - 04P - 210 V0 - NATURAL
      39 - 01 - 2026 5559 - 06P - 210 V0 - NATURAL
      39 - 01 - 2026 5559 - 08P - 210 V0 - NATURAL
      39 - 01 - 2026 5559 - 10P - 210 V0 - NATURAL
      39 - 01 - 2026 5559 - 12P - 210 V0 - NATURAL
      39 - 01 - 2026 5559 - 14P - 210 V0 - NATURAL
      39 - 01 - 2026 5559 - 16P - 210 V0 - NATURAL
      39 - 01 - 2026 5559 - 18P - 210 V0 - NATURAL
      39 - 01 - 2026 5559 - 20P - 210 V0 - NATURAL
      39 - 01 - 2026 5559 - 22P - 210 V0 - NATURAL
      39 - 01 - 2026 5559 - 24P - 210 V0 - NATURAL





    Product Description

    Status Active
    Category Crimp Housings
    Series 5557
    Application Power , Wire - to - Board , Wire - to - Wire
    Product Name Mini - Fit Jr.
    Circuits (maximum) 2
    Color - Resin Natural
    Flammability 94V - 2
    Gender Receptacle
    Net Weight 0.657/g
    Number of Rows 2 - 24
    Pitch - Mating Interface 4.20mm
    Pitch - Termination Interface 4.20mm
    Temperature Range - Operating - 40°C to + 105°C







    MOLEX Male Female Wire Connectors 5559 Mini Fit Jr Plug Housing Dual Row 2 Circuits MOLEX Male Female Wire Connectors 5559 Mini Fit Jr Plug Housing Dual Row 2 Circuits
    MOLEX Male Female Wire Connectors 5559 Mini Fit Jr Plug Housing Dual Row 2 Circuits MOLEX Male Female Wire Connectors 5559 Mini Fit Jr Plug Housing Dual Row 2 Circuits
    MOLEX Male Female Wire Connectors 5559 Mini Fit Jr Plug Housing Dual Row 2 Circuits MOLEX Male Female Wire Connectors 5559 Mini Fit Jr Plug Housing Dual Row 2 Circuits



    MOLEX Male Female Wire Connectors 5559 Mini Fit Jr Plug Housing Dual Row 2 Circuits



    MOLEX Male Female Wire Connectors 5559 Mini Fit Jr Plug Housing Dual Row 2 Circuits
