Super Reliable and Flexible 516 Series 3.81mm Female socket Rack and Panel Connectors for Wire Harness

Product Details:

Place of Origin:	CHINA
Brand Name:	EDAC
Certification:	ROHS
Model Number:	516-56/90/120-000-XXX

Payment & Shipping Terms:

Minimum Order Quantity:	-
Price:	Negotiable
Delivery Time:	2-3week
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	Negotiable

Contact Now

Detailed Product Description

Features:	Jackscrew Socket, Mating Guide	Series:	516
Pin:	56,90,120	Pitch:	3.81mm
Temperature:	-65℃ To +125℃	Contact Material:	Phosphor Bronze Alloy
Rated Current:	8.5A	Color:	Grey

Super Reliable and Flexible EDAC 516 Series 3.81mm Female socket Rack and Panel Connectors for Wire Harness

Rack and Panel Connectors EDAC

rack and panel connectors are industry-standard connectors with highly dependable contacts EDAC's backplane connectors offer ultra-high continuity and shock and vibration-proof connections. Hermaphroditic contacts mate at 90 degrees to each other, providing four points of contact and a gas-tight seal. Hoods and covers are available to protect connections and keep contaminants out.

Features

Industry-standard connectors with highly dependable contacts
Hermaphroditic contact design for no-fail interconnections
Gold over nickel plating for wire-hole, PCB, wire-wrap, and crimp contacts
Crimp contacts available pre-installed, separately in bulk, or on a reel for automated process
In sizes of 20 to 120 positions with actuating screw or locknut, both with polarizing hardware
Plastic and metal covers with cable clamps for strain relief
Specifications
Insulator material: diallyl phthalate, thermoplastic polyester, or polycarbonate UL 94 V-0
Color: green or polycarbonate color grey
Contact material: copper alloy
Contact plating: gold plating over nickel over the entire contact
Current rating: 8.5 amperes
Contact resistance: 10 milliohms maximum
Withstanding voltage: 2000 VAC(rms) at sea level
Insulation resistance: 5000 megaohms minimum
Operating temp: -40°C to +105°C and -40°C to +125°C (diallyl phthalate only)
Insertion and withdrawal force: 2 oz to 16 oz (0.56 N to 4.45 N) per contact position

Applications

Power grid
Automotive test panels
Oil and gas refinery systems
Energy control panels
Industrial automation panels

TYPE	DESCRIPTION
Category	Connectors,Interconnects Backplane Connectors-Housings
Mfr	EDAC inc
Series	516
Package	Bulk
Part Status	Active
Connector Type	Housing for Non-Gendered Contacts
Contact Style	Rack and Panel
Number of Positions	20,38,56,90,120
Pitch	0.15"(3.81mm)
Mouting Type	Varies by Contact
Connector Usage	Socket
Features	Jackscrew,Guide Pin
Color	Green
Note	Contacts Not Included
Base Product Number	516

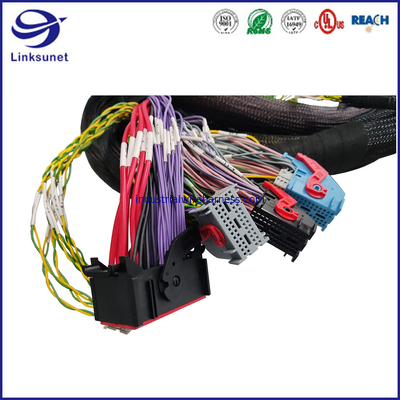

Custom Wiring Harness with 516 Rack and Panel Connectors
1	516-020-000-302	516-020-000-301	516-020-000-202	516-020-000-201	20PIN
2	516-038-000-302	516-038-000-302	516-038-000-202	516-038-000-201	38PIN
3	516-038-000-302	516-056-000-303	516-056-000-202	516-056-000-201	56PIN
4	516-038-000-302	516-090-000-304	516-090-000-202	516-090-000-201	90PIN
5	516-038-000-302	516-120-000-305	516-120-000-202	516-120-000-201	120PIN

Super Reliable and Flexible 516 Series 3.81mm Female socket Rack and Panel Connectors for Wire Harness

Wire&cable Information
German standard
FLRY-B	0.35/0.5/0.75/1.5/2.5/4.0
Japanese standard
TXL	22AWG/20AWG/18AWG/16AWG/14AWG
GXL	22AWG/20AWG/18AWG/16AWG/14AWG
UL
UL1007	UL1061	UL1015
UL1569	UL3239	UL1430
UL
UL2464	UL20276	UL2586
UL2733
Jacket material
PVC	PE	TPU
PU	TPE	XLPE
PUR	PTFE	Silicon rubber

External protective materials
PA flexible bellows
PP bellows
TPE Nylon Braided reticulated tube
Electrical tape
High temperature resistant flannel tape
PVC sleeve
Heat shrinkable tube

FAQ
MOQ	5-100000PCS
LEAD TIME	Production 2-3week
Transportation	FEDEX.UPS.DHL.SF.transportation line
Payment method	T/T,PAYPAL,ALIPAY,ALIBABA
Production standard	IPC/WHMA-A-620
Product certification	ROHS2.0/3.0,UL
Factory related certification	ISO9001/ITFA16949/ISO13485
