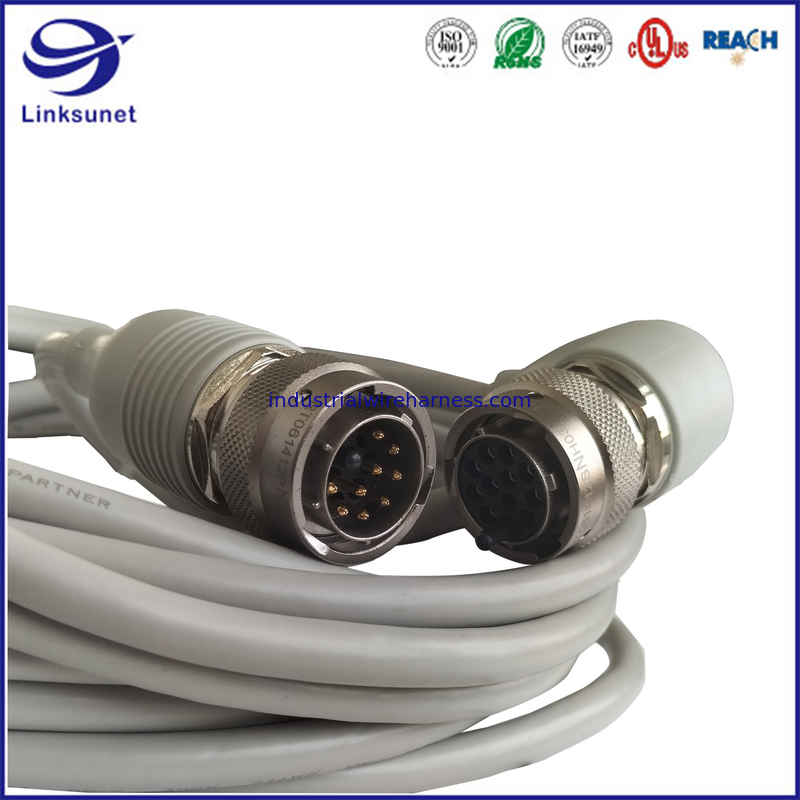

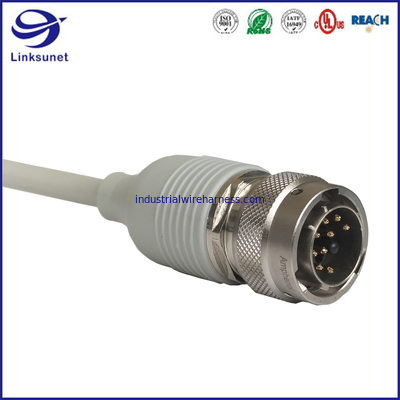

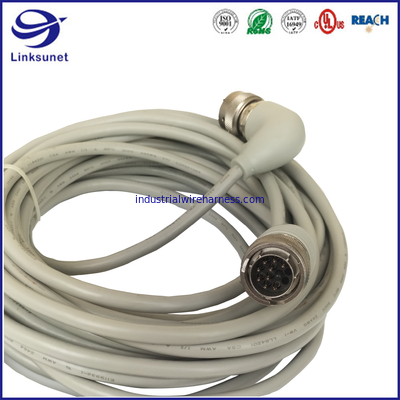

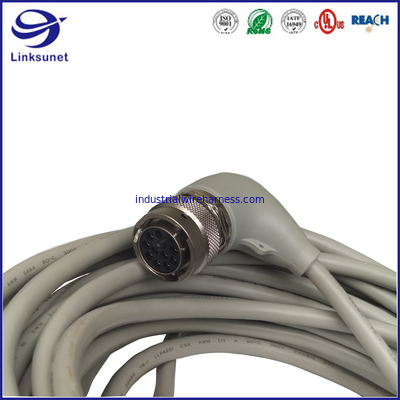

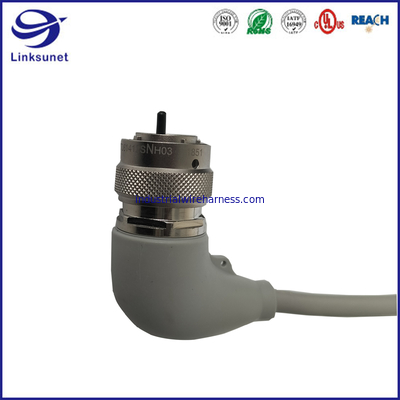

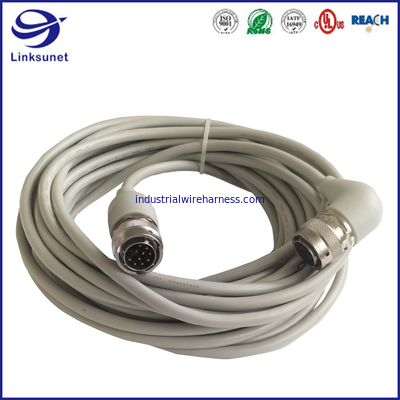

Reliability,16AWG Plug RT Series Circular Connectors for Wire Harness for Robot

Reliability,16AWG Plug RT Series Circular Connectors for Wire Harness for Robot

    • Reliability,16AWG Plug RT Series Circular Connectors for Wire Harness for Robot
    • Reliability,16AWG Plug RT Series Circular Connectors for Wire Harness for Robot
    • Reliability,16AWG Plug RT Series Circular Connectors for Wire Harness for Robot
    • Reliability,16AWG Plug RT Series Circular Connectors for Wire Harness for Robot
    • Reliability,16AWG Plug RT Series Circular Connectors for Wire Harness for Robot
    • Reliability,16AWG Plug RT Series Circular Connectors for Wire Harness for Robot
  • Reliability,16AWG Plug RT Series Circular Connectors for Wire Harness for Robot

    Product Details:

    Place of Origin: CHINA
    Brand Name: Amphenol Sine Systems Corp
    Certification: ROHS
    Model Number: RT061412PNH03

    Payment & Shipping Terms:

    Minimum Order Quantity: -
    Price: Negotiable
    Delivery Time: 2-3week
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: Negotiable
    Contact Now
    Detailed Product Description
    Series: RT ConnectorType: Plug
    Current Rating: 13A Voltage Rating: 300V
    Temperature: -40℃ To +125℃ ApplicableWire: 16-14AWG
    Termination: Crimp IngressProtection: IP67 - Dust Tight, Waterproof





    RT Series Connectors for Wire Harness for Industry



    • RT360™ industrial circular connectors are multiway connector available in 6 shell sizes and 22 insert arrangements with a variety of wire gauge options. RT360 industrial circular connectors were designed to be intermateable with other industrial connector families.




    Features



    • 16AWG and mixed Power and Signal arrangements from 4-28 contacts
    • 6 shell sizes and 11 insert configurations
    • Operating voltage of 300V
    • Current rating: 13A(signal contacts)
    • Alternate keying positions available
    • Plastic inserts with flammability rating of UL94-V0
    • RoHS compliant





    Application



    • Industurial



    Connector Details



    TYPE DESCRIPTION
    Category
    Connectors, Interconnects
    Circular Connectors - Housings
    Mfr Amphenol Sine Systems Corp
    Series RT
    Package Bag
    Part Status Active
    Connector Type Plug-Housing
    Type For Male Pins
    Number of Positions 12
    Shell Size-Insert 14-12
    Shell Size,MIL -
    Contact Type Crimp
    Contact Size 16
    Mounting Type Free Hanging (In-Line)
    Mounting Feature -
    Fastening Type Bayonet Lock
    Orientation N (Normal)
    Shell Material Zinc Alloy
    Shell Finish Nickel
    Housing Color Silver
    Ingress Protection IP67 - Dust Tight, Waterproof
    Material Flammability Rating UL94 V-0
    Features Coupling Nut
    Shielding Shielded
    Note Contacts Not Included
    Includes 3 pcs - 1 Connector, 1 Gasket, 1 O-Ring
    Insert Material Thermoplastic
    Contact Shape Circular
    Operating Temperature -40°C ~ 125°C





    Reliability,16AWG Plug RT Series Circular Connectors for Wire Harness for Robot





    Wire &Cable Information



    German standard
    FLRY-B 0.35/0.5/0.75/1.5/2.5/4.0
    Japanese standard
    TXL 22AWG/20AWG/18AWG/16AWG/14AWG
    GXL 22AWG/20AWG/18AWG/16AWG/14AWG
    UL
    UL1007 UL1061 UL1015
    UL1569 UL3239 UL1430
    UL
    UL2464 UL20276 UL2586
    UL2733
    Jacket material
    PVC PE TPU
    PU TPE XLPE
    PUR PTFE Silicon rubber

    External protective materials
    PA flexible bellows
    PP bellows
    TPE Nylon Braided reticulated tube
    Electrical tape
    High temperature resistant flannel tape
    PVC sleeve
    Heat shrinkable tube





    Reliability,16AWG Plug RT Series Circular Connectors for Wire Harness for Robot

    FAQ
    MOQ 5-100000PCS
    LEAD TIME Production 2-3week
    Transportation FEDEX.UPS.DHL.SF.transportation line
    Payment method T/T,PAYPAL,ALIPAY,ALIBABA
    Production standard IPC/WHMA-A-620
    Product certification ROHS2.0/3.0,UL
    Factory related certification ISO9001/ITFA16949/ISO13485
