Stability,High Current M23 Series Circular Connectors for Wire Harness for Industrial Automation

Stability,High Current M23 Series Circular Connectors for Wire Harness for Industrial Automation

    • Stability,High Current M23 Series Circular Connectors for Wire Harness for Industrial Automation
    • Stability,High Current M23 Series Circular Connectors for Wire Harness for Industrial Automation
    • Stability,High Current M23 Series Circular Connectors for Wire Harness for Industrial Automation
    • Stability,High Current M23 Series Circular Connectors for Wire Harness for Industrial Automation
    • Stability,High Current M23 Series Circular Connectors for Wire Harness for Industrial Automation
    • Stability,High Current M23 Series Circular Connectors for Wire Harness for Industrial Automation
  • Stability,High Current M23 Series Circular Connectors for Wire Harness for Industrial Automation

    Product Details:

    Place of Origin: CHINA
    Brand Name: Amphenol Sine Systems Corp
    Certification: ROHS
    Model Number: MA7CAP1700-SX

    Payment & Shipping Terms:

    Minimum Order Quantity: -
    Price: Negotiable
    Delivery Time: 2-3week
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: Negotiable
    Contact Now
    Detailed Product Description
    Series: M23 ConnectorType: Plug
    Current Rating: 10A Voltage Rating: 125V
    Temperature: -20℃ To +130℃ ApplicableWire: 28-18AWG
    Termination: Crimp Ingress Protection: IP67 - Dust Tight, Waterproof

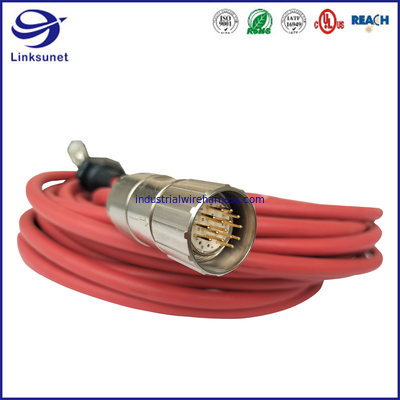

    Stability,High Current M23 Series Circular Connectors for Wire Harness for Industrial Automation



    • M23 Industrial Signal and Power Connectors offer the transmission of signals, data and power safely using just one connector in a compact and robust design. The series is mainly used for connecting electrical drives and industrial automation applications. They are very easy to handle and operate.




    Features





    1. Qualified to perform at depths of 5 meters
    2. Crimp contacts for various cross sections
    3. Various types of cable clamps
    4. 360° EMC shielding connection
    5. Vibration Resistant
    6. Ground connection for power connectors
    7. RoHS compliant
    8. UL/CSA approval





    Application



    • electrical drives and industrial automation



    Connector Details



    TYPE DESCRIPTION
    Category
    Connectors, Interconnects
    Circular Connectors - Housings
    Mfr Amphenol Sine Systems Corp
    Series MotionGrade™ Elite M23 Signal Series, Threaded
    Package Bulk
    Part Status Active
    Connector Type Plug-Housing
    Type For Female Sockets or Male Pins
    Number of Positions 17
    Shell Size-Insert M23-17
    Shell Size,MIL -
    Contact Type Crimp
    Contact Size 1.0mm
    Mounting Type Free Hanging (In-Line)
    Mounting Feature -
    Fastening Type Threaded
    Orientation N (Normal)
    Shell Material Zinc Die Cast
    Shell Finish Nickel
    Housing Color Silver
    Ingress Protection IP67 - Dust Tight, Waterproof
    Material Flammability Rating UL94 V-0
    Features Backshell,Coupling Nut
    Shielding Shielded
    Note Contacts Not Included
    Includes -
    Insert Material Polyamide(PA66),Nylon 6/6
    Contact Shape Circular
    Operating Temperature -20°C ~ 130°C





    Stability,High Current M23 Series Circular Connectors for Wire Harness for Industrial Automation





    Product Specification



    Stability,High Current M23 Series Circular Connectors for Wire Harness for Industrial Automation





    Stability,High Current M23 Series Circular Connectors
    Item Part number Cable OD Range
    1 MA7CAP1700-S1 4.5~7.5mm
    2 MA7CAP1700-S2 7.5~11.0mm
    3 MA7CAP1700-S3 11.0~15.0mm






    Wire &Cable Information



    German standard
    FLRY-B 0.35/0.5/0.75/1.5/2.5/4.0
    Japanese standard
    TXL 22AWG/20AWG/18AWG/16AWG/14AWG
    GXL 22AWG/20AWG/18AWG/16AWG/14AWG
    UL
    UL1007 UL1061 UL1015
    UL1569 UL3239 UL1430
    UL
    UL2464 UL20276 UL2586
    UL2733
    Jacket material
    PVC PE TPU
    PU TPE XLPE
    PUR PTFE Silicon rubber

    External protective materials
    PA flexible bellows
    PP bellows
    TPE Nylon Braided reticulated tube
    Electrical tape
    High temperature resistant flannel tape
    PVC sleeve
    Heat shrinkable tube





    Stability,High Current M23 Series Circular Connectors for Wire Harness for Industrial Automation

    FAQ
    MOQ 5-100000PCS
    LEAD TIME Production 2-3week
    Transportation FEDEX.UPS.DHL.SF.transportation line
    Payment method T/T,PAYPAL,ALIPAY,ALIBABA
    Production standard IPC/WHMA-A-620
    Product certification ROHS2.0/3.0,UL
