| Place of Origin: | CHINA |
| Brand Name: | TE |
| Certification: | ROHS |
| Model Number: | 2329592-1 |
| Minimum Order Quantity: | - |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 2-3week |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | Negotiable |
| Connector & Housing Type: | Housing For Female Terminals | Connector System: | Wire-to-Board |
|---|---|---|---|
| Primary Locking Feature: | Contact Retainer | Number Of Positions: | 20 |
| Number Of Rows: | 2 | Nominal Voltage Architecture: | 12 |
| Mating Tab Width : | .63 mm [ .025 in ] | Operating Temperature: | -40 – 105 °C [ -40 – 221 °F ] |

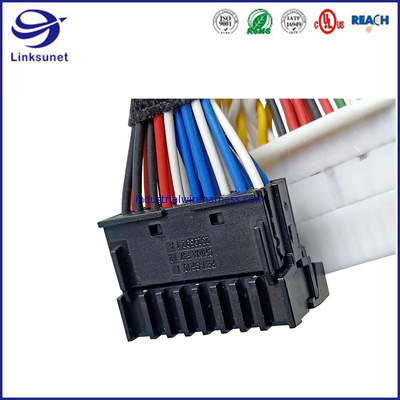

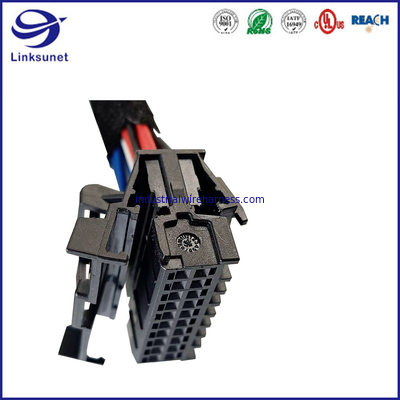

Housing for Female Terminals 20 Position 2.5mm Wire-to-Board Cable Mount Connectors for Wire Harness
Features
Application
Connector Details
| TYPE | DESCRIPTION |
| Connector & Housing Type | Housing for Female Terminals |
| Connector System | Wire-to-Board |
| Sealable | No |
| Hybrid Connector | No |
| Primary Locking Feature | Contact Retainer |
| Connector & Contact Terminates To | Wire & Cable |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Nominal Voltage Architecture (V) | 12 |
| Primary Product Color | Black |
| Connector Code | AD |
| Mating Tab Width | .63mm[.025in] |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Centerline (Pitch) | 2.5mm[.098in] |
| Operating Temperature Range | -40° – 105°C |
| Circuit Application | Signal |
Product Specification
| P/N | Pin Position | Type | Applicable Plug | Terminal P/N |
| *-2311621-* | 8 | 90° | 2322346-* | 928999-* /963715-* /1355717-* |
| *-2320179-* | 8 | 180° | 2322346-* | |
| *-2322610-* | 12 | 90° | 2322637-* | |
| *-2322613-* | 12 | 180° | 2322637-* | |
| *-2311622-* | 16 | 90° | 2301695-* | |
| *-2320178-* | 16 | 180° | 2301695-* | |
| *-2329531-* | 20 | 90° | 2329592-* | |
| *-2330352-* | 20 | 180° | 2329592-* |
Wire &Cable Information
| German standard | ||
| FLRY-B | 0.35/0.5/0.75/1.5/2.5/4.0 | |
| Japanese standard | ||
| TXL | 22AWG/20AWG/18AWG/16AWG/14AWG | |
| GXL | 22AWG/20AWG/18AWG/16AWG/14AWG | |
| UL | ||
| UL1007 | UL1061 | UL1015 |
| UL1569 | UL3239 | UL1430 |
| UL | ||
| UL2464 | UL20276 | UL2586 |
| UL2733 | ||
| Jacket material | ||
| PVC | PE | TPU |
| PU | TPE | XLPE |
| PUR | PTFE | Silicon rubber |
| External protective materials | ||
| PA flexible bellows | ||
| PP bellows | ||
| TPE Nylon Braided reticulated tube | ||
| Electrical tape | ||
| High temperature resistant flannel tape | ||
| PVC sleeve | ||
| Heat shrinkable tube | ||
| FAQ | |
| MOQ | 5-100000PCS |
| LEAD TIME | Production 2-3week |
| Transportation | FEDEX.UPS.DHL.SF.transportation line |
| Payment method | T/T,PAYPAL,ALIPAY,ALIBABA |
| Production standard | IPC/WHMA-A-620 |
| Product certification | ROHS2.0/3.0,UL |
| Factory related certification | ISO9001/ITFA16949/ISO13485 |
Contact Us
| Mail: chenzhixiong @ linksunet.com | Phone : + 86-13641965642 |
| Tel : 021-58320567 / 58322073 | WeChat : 13641965642 |
