| Description: | CONN HOOD SIDE ENTRY SZ3A-M20-25 | Connector Type: | HOOD |
|---|---|---|---|
| Size: | HA-3A | Processing Mode: | Crimping+assembly |
| Material: | AL | Gland Size: | M20/M25 |
| High Light: | harting industrial connectors,tyco amp cable |
||

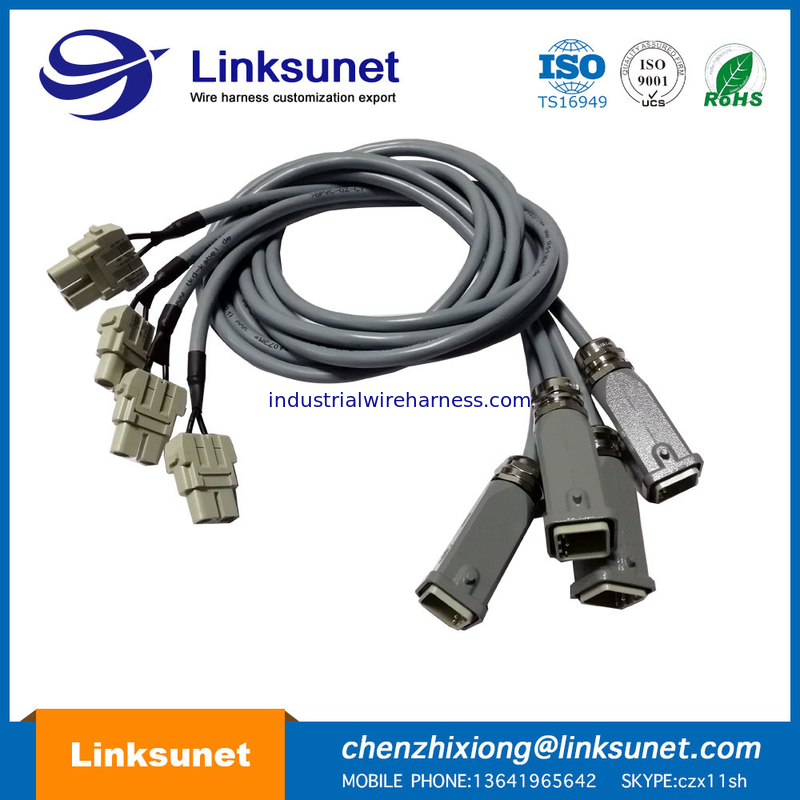

40A Four Point Crimping Industrial Wire harness Harting Modula 2PConnector 09140022701 Add 09120123001
Connector : 09140022701
Connector hood :19200031443
Connector:09120123001
Termial : 09150006106
Gland : LAPP M20
Cable : TKDKABLE 2G2.5
Application situation:Robots, Control machines, Locomotives
