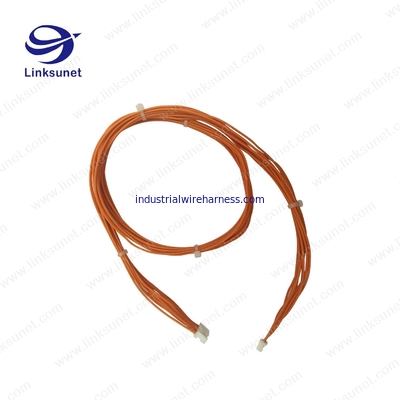

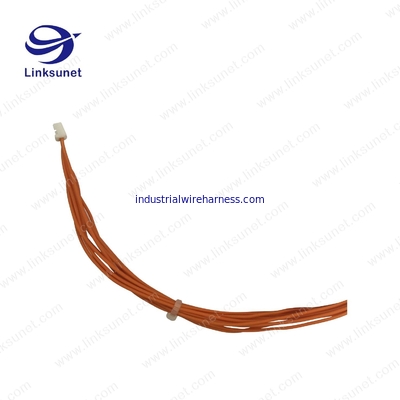

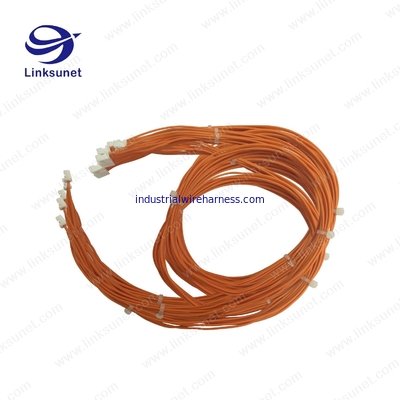

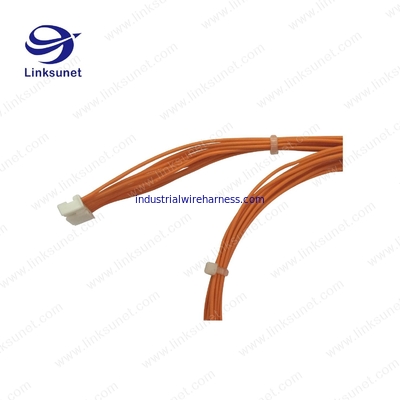

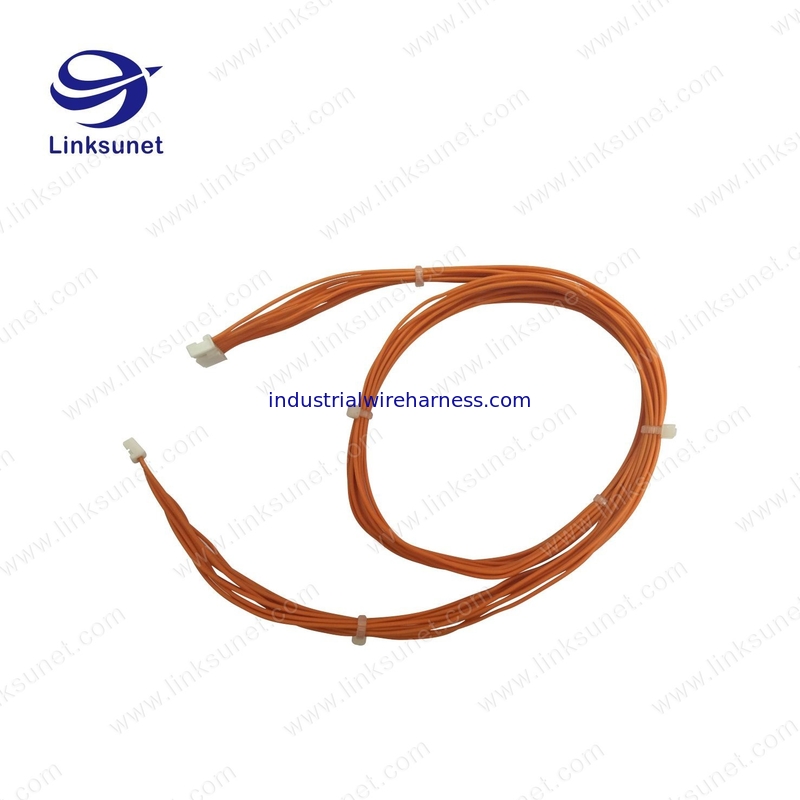

JST PAP - 12V - S PA Wire Harness Assembly PICH 2.0MM RD Color 22AWG

Product Details:

Place of Origin:	JAPA
Brand Name:	JST
Certification:	ROHS
Model Number:	PAP - 12V - S

Payment & Shipping Terms:

Minimum Order Quantity:	100set
Price:	Negotiable
Packaging Details:	Carton or Wood Box
Delivery Time:	3-15D
Payment Terms:	T/T, MoneyGram, Western Union
Supply Ability:	50000SET/D

Contact Now

Detailed Product Description

Material:	PA	Color:	WT
Pich:	2.0	Cable:	22AWG
PIN:	12	Wire Material:	PVC
High Light:	cable and harness assembly , wire harness and cable assembly

JST PAP - 12V - S PICH 2.0MM Harness Cable Assemblies / Material PA

Specification

Pitch	2.0 mm
Current rating	3A ( AWG # 22 )
Voltage rating	Standard type / 250V Retainer mountable type / 100V
PC board mounting direction	Top entry , Side entry

Datasheets	PA Series Datasheet
Product Training Modules	PA Wire - to - Board Connectors
Online Catalog	PA Series

Product Attributes	Select All
Categories	Connectors , Interconnects
Categories	Rectangular Connectors - Housings
Manufacturer	JST Sales America Inc .
Series	PA
Packaging	Bulk
Part Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	12
Pitch	0.079 " ( 2.00mm )
Number of Rows	1
Row Spacing	-
Mounting Type	Free Hanging ( In - Line )
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
