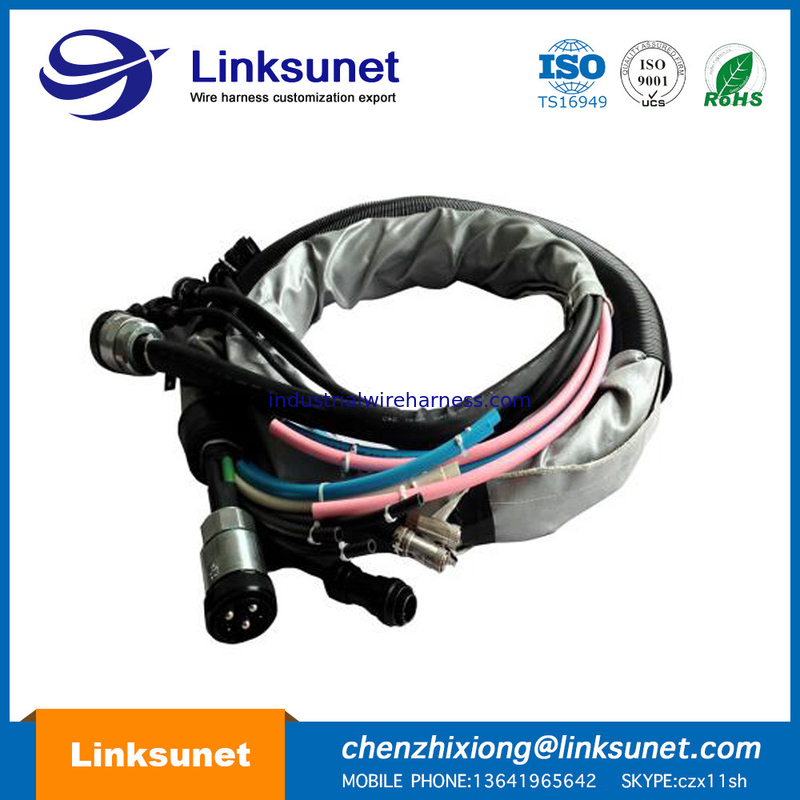

Welding Robot Arm Dress Package Cable And Harness Assembly DDK 36 - 3A 4.5M

Welding Robot Arm Dress Package Cable And Harness Assembly DDK 36 - 3A 4.5M

Welding Robot Arm Dress Package Cable And Harness Assembly DDK 36 - 3A 4.5M

Product Details:

Place of Origin: CHINA
Brand Name: DDK
Certification: UL/CSA/ROHS/REACH/ISO9001/TS16949
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 10SET
Price: USD1000-5000/SET
Packaging Details: CARTON OR WOOD BOX
Contact Now
Detailed Product Description
Mareial: PVC+PA6 Lenght: 4.5M
Color: Customized Cable: UL/CE/VDE/PSE
Voltage: 30V-300V Connector: DDK
High Light:

cable harness assembly

,

wire harness and cable assembly

Welding Robot Arm Dress Package Harness DDK 36-3A / Wire Harness Assembly Solution Provider Customization


DDK DCA series is a bayonet coupling connector which utilizes MIL-DTL-5015 insert arrangements and is compatible with VG95234.
The inserts are made of the synthetic rubber and can cope with various environments required by the industrial applications.
DCA “F” style and “R” style are designed to prevent dust, oil and water from intruding into the connectors.
The DCA series is suitable for applications such as servo motors, machine tools and factory automation equipment.
(We started making new toolings for DCA connectors as our new products. Please contact the nearest sales offices or distributors on availability.
)


Features


Quick positive bayonet coupling .
・Audible , tactile and visual indication of full coupling .
・IP67 when mated and used with suitable accessories , grommet or a waterproof backshell .
・Contacts available in both crimp and solder terminations ,
・High shock and vibration capabilities .
・Operating temperature range : - 55 ℃  to 125℃ with Neoprene insert .
・Intermateable with existing VG95234 connectors.
・Available in OD chromate finish , RoHS compliant black chromate finish , Nickel plating and Cation Electroplating .


 Specifications


Insulation Resistance

More than 500MΩ at DC500V ( at 25 ℃ )

Temperature Range

- 55 ℃ ~ + 125 ℃

Durability

500 cycle mating / unmating operating

Thermal Shock

MIL - STD - 202 method 107

Temperature range of - 55 ℃ ~ + 125 ℃

Humidity

Relative humidity : 95 % ± 3 %

Temperature : 71 ℃ ± 2 ℃

Duration : 14 days ( 336hrs . )

Vibration

MIL - STD - 1344 method 2005

10 - 500Hz or 10G units

Shock, Electrical

1 - 2 sine wave transient shock impulse of 50G units

Duration : 10 micro sec ( There must not be current interception . )


Current Rating 1A / Contact Voltage Rating 24V DC Dielectric Withstanding Voltage 1500V AC(r.m.s.) / 1 minute Insulation Resistance 1,000M Ω Min. at 500V DC Waterproof IP67 when mated Operating Temperature Range -25° C to +70° C No.of Contacts 25
(#20-2 Pin , #22-23 Pin)
32(#20-2 Pin , #22-30 Pin)
Applicable Wire Size #20 : 20AWG to 22AWG
#22 : 24AWG to 28AWG
Strong construction, using metal shells.
One-touch mating and sure locking by “Push-On & Turn-Off”mechanism.
Sequence Structure With Protective Circuitry. #20 size power contacs, making first connections.
High Reliability by crimping termination.

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 3-15 working days. The specific delivery time depends on the items and the quantity of your order.

Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 10 pcs.


Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard:
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )

We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know
