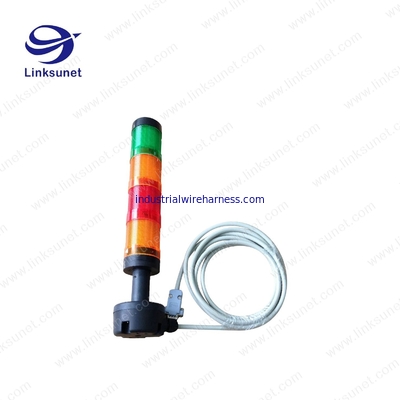

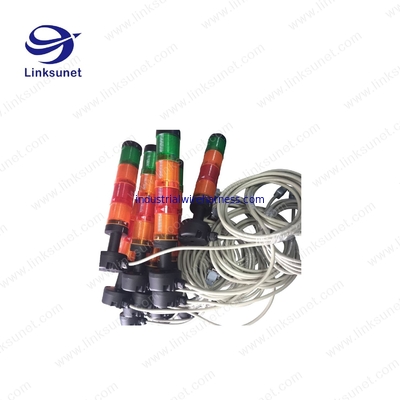

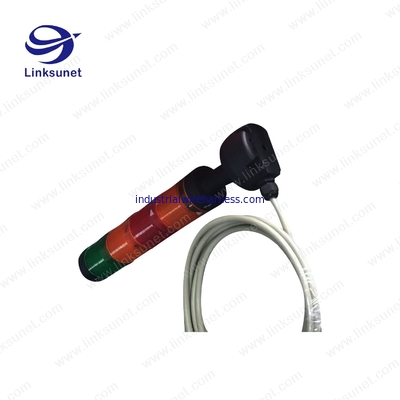

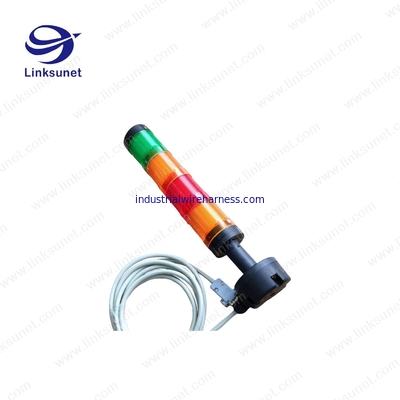

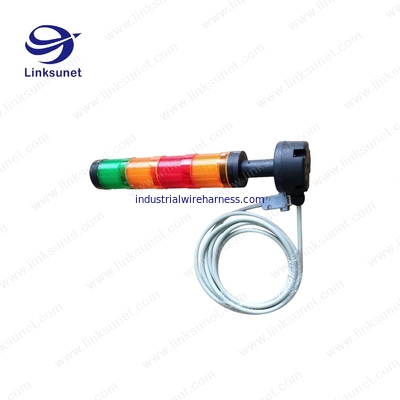

70mm Waterproof Led Signal Tower Light 4 Layer Liyy With Pvc Wire Material

70mm Waterproof Led Signal Tower Light 4 Layer Liyy With Pvc Wire Material

    • 70mm Waterproof Led Signal Tower Light 4 Layer Liyy With Pvc Wire Material
    • 70mm Waterproof Led Signal Tower Light 4 Layer Liyy With Pvc Wire Material
    • 70mm Waterproof Led Signal Tower Light 4 Layer Liyy With Pvc Wire Material
    • 70mm Waterproof Led Signal Tower Light 4 Layer Liyy With Pvc Wire Material
    • 70mm Waterproof Led Signal Tower Light 4 Layer Liyy With Pvc Wire Material
    • 70mm Waterproof Led Signal Tower Light 4 Layer Liyy With Pvc Wire Material
  • 70mm Waterproof Led Signal Tower Light 4 Layer Liyy With Pvc Wire Material

    Product Details:

    Place of Origin: China
    Brand Name: Linksunet
    Certification: ROHS
    Model Number: 4 Layer

    Payment & Shipping Terms:

    Minimum Order Quantity: 100set
    Price: Negotiable
    Packaging Details: Carton or Wood Box
    Delivery Time: 3-15D
    Payment Terms: T/T, MoneyGram, Western Union
    Supply Ability: 500SET/D
    Contact Now
    Detailed Product Description
    Material: PA6 Color: Green Add RD
    Pich: 5.0mm Cable: 22-24AWG
    Layer: 4 Wire Material: PVC
    High Light:

    custom made wiring harness

    ,

    custom cable harness

    4 layer warning lamp wiring harness for Medical equipment



    Waterproof Led Tignal Tower Light

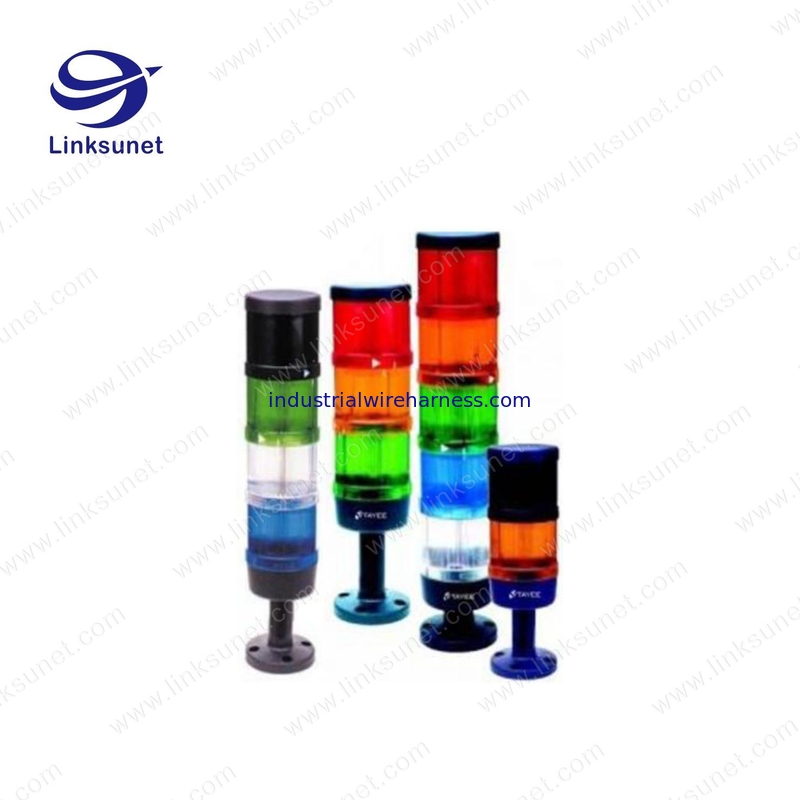

    The JD series alarm lamp of our company is derived from a hi-tech project and a new key product of Shanghai Municipality, including two major categories, the single piece alarm lamp and the combined alarm lamp.
    The appearance of the single piece alarm lamp is prudent and decent with the classic European design. Complete varieties are available. Speaking on the diameter, we have JD50, JD70, JD90 and JD150 and speaking on the functionality, we have light-only and integrated voice-light type. All of our lamp housings adopt high quality materials with bright color and good transmittence. The color won't fade and it's wear resistant after long-term use.
    The combined alarm lamp uses the classic block style combination, you can exchange and combine between segments at your will; It is able to meet the various requirement of the user, provide unmatchable, powerful performance, and give your device innervation and vigor. It is easy to disassemble and combine. Can be use as Machine tower light, Led warning tower light, signal tower light, alarm tower light, stack light , indicator light, industrial tower light.



    Product Description



    4 layer warning lamp wiring harness for Medical equipment
    Place of origin Shanghai , China
    Brand Name TAYEE
    Model Number JD701
    Optical source LED , Super Bright LED , Xenon Lamp , Filament Lamp
    Luminescence modes Permanent , Blink , Rotating flash , Adjustable
    Color Red , Green , Yellow , White , Blue
    Voltage DC24V , AC220V
    Diameter 70mm
    Environmental Temperature -25°C ~ +55°C
    Degree of Pollution Class 3
    Antivibration 10-2000Hz , 1mm , 15g
    Deggree of Protection IP 65
    Installation Type III
    Altitude ≤2000m
    Relative Mositure of Air ≤98%
    Type 24V 220V
    Filament Lamp maximum current 3W 3W
    LED maximum current 0.1A/2.4W 0.05A/0.8W
    Buzzer maximum current 0.015A/0.36W 0.05A/0.45W
    Xenon lamp maximum current 0.2A/4.8W 0.03A/6.6W
    Horn maximum current 0.25A/6W 0.25A/3.2W
    Certificate CE,TUV,CCC,CCS
