| Series: | Industrial Ethernet | Frequency(MHz): | 10 16 62,5 100 155 |
|---|---|---|---|
| Attenuation (db/100m): | 9,5 12,1 24,8 32,0 41,0 | Next (db): | 50,3 47,2 38,4 35,3 30,0 |
| Colour: | Green | Pins: | 8 |
| Rows: | 2 | Length: | Customized |

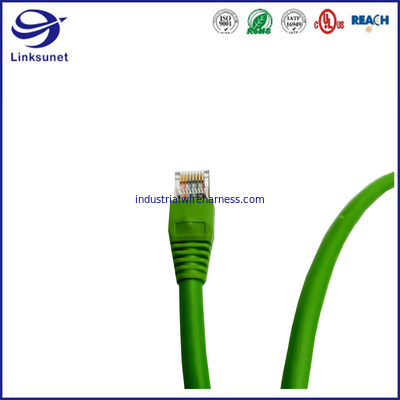

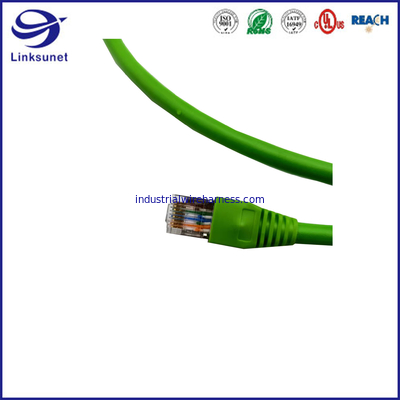

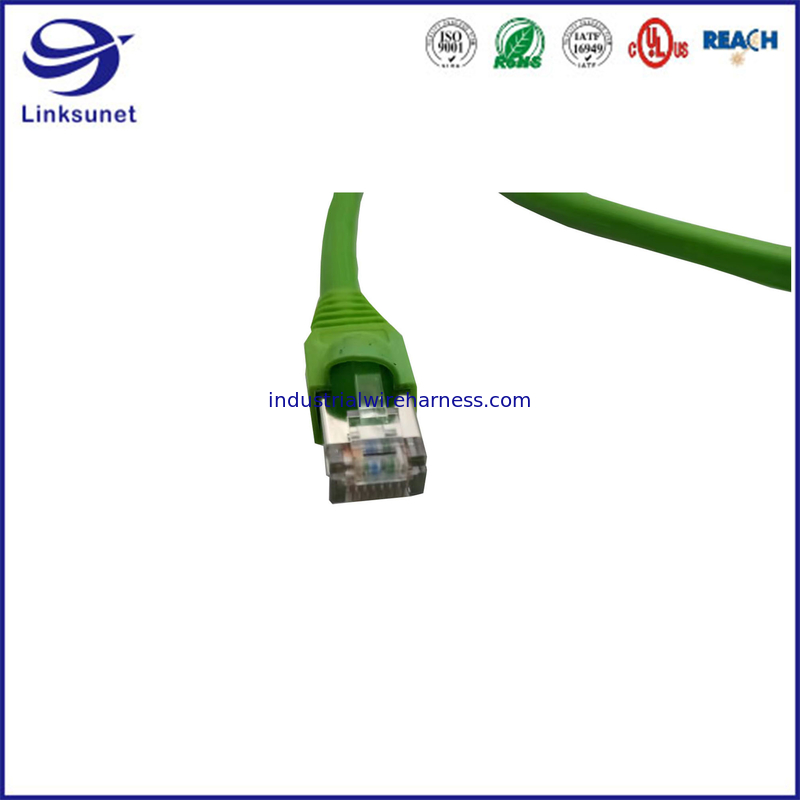

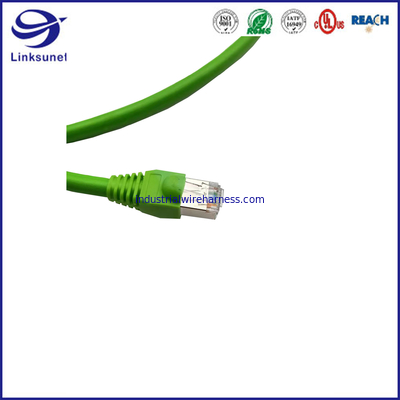

100S Category 5e Drag Chain Eco SF/UTP 4x2x0.15 mm² Bus Cable Designed for heavy-duty industrial applications
Norms
Acc. to ISO/IEC 11801, ACC. to EN 50173, Acc. to EIA/TIA 568-A, Category 5e, Flame-retardant acc. to IEC 60332-1, Halogen-free acc. to 60754-2, Corrosiveness acc. to EN50267-2-3, UL-style 20963 (80℃/30V)
Application
This copper data cable, designed especially for heavy-duty industrial applications (Industrial Ethernet), is very well suited for manufacturing of RJ45 and 15 or 9-Pin Sub-D plugs. With its PUR sheath, it is also suitable for the application in drag chains.
Cable Details
| Type | Drag chain applications |
| Cable structure | 4*2*0.15m㎡ (stranded) |
| Mfr | HELUKABEL® |
| Core insulation | PP |
| Core colours | whbu/bu, whog/og, whgn/gn,whbn/bn |
| Stranding element | Double core |
| Shielding 1 | Polyester foil over stranded buncle |
| Shielding 2 | Polyester foil, aluminium-lined |
| Total shielding | Cu braid, tinned |
| Outer sheath material | PUR |
| Cable external diameter | approx. 6,8 mm ± 0,3mm |
| Outer sheath colour | Green |
Electrical data
| Characteristic impedance | 100 0hm ± 15 ohm at 1 to 100 MHZ |
| Insulation resistance | 0.15 Gohm * km min. |
| Mutual capacitance | 48.0 nF/km nom. |
| Test voltage | 0.7 KV |
Technical data
| Weight | approx. 56,00 kg/km |
| Min.bending radius fo laying | 102,0 mm |
| Operating temperature range | -40℃ to +80℃ |
| Caloric load, approx. value | 0,64 MJ/m |
| Copper weight | 31,0 kg/km |
Typical values
| Frequency | (MHZ) | 10 | 16 | 62.5 | 100 | 155 |
| Attentuation | (db/100m) | 9.9 | 12.3 | 25.6 | 33 | 41 |
| Next | (db) | 47 | 44 | 35 | 32 | 30 |
Wire &cable Information
| German standard | ||
| FLRY-B | 0.35/0.5/0.75/1.5/2.5/4.0 | |
| Japanese standard | ||
| TXL | 22AWG/20AWG/18AWG/16AWG/14AWG | |
| GXL | 22AWG/20AWG/18AWG/16AWG/14AWG | |
| UL | ||
| UL1007 | UL1061 | UL1015 |
| UL1569 | UL3239 | UL1430 |
| UL | ||
| UL2464 | UL20276 | UL2586 |
| UL2733 | ||
| Jacket material | ||
| PVC | PE | TPU |
| PU | TPE | XLPE |
| PUR | PTFE | Silicon rubber |
| External protective materials | ||
| PA flexible bellows | ||
| PP bellows | ||
| TPE Nylon Braided reticulated tube | ||
| Electrical tape | ||
| High temperature resistant flannel tape | ||
| PVC sleeve | ||
| Heat shrinkable tube | ||
| FAQ | |
| MOQ | 5-100000PCS |
| LEAD TIME | Production 2-3week |
| Transportation | FEDEX.UPS.DHL.SF.transportation line |
| Payment method | T/T,PAYPAL,ALIPAY,ALIBABA |
| Production standard | IPC/WHMA-A-620 |
| Product certification | ROHS2.0/3.0,UL |
| Factory related certification | ISO9001/ITFA16949/ISO13485 |
