15023 High Flex Cable For Drag Chains Helukable JZ - HF 7 G0 , 75 Mm2 GY

15023 High Flex Cable For Drag Chains Helukable JZ - HF 7 G0 , 75 Mm2 GY

15023 High Flex Cable For Drag Chains Helukable JZ - HF 7 G0 , 75 Mm2 GY

Product Details:

Place of Origin: Germany
Brand Name: HELUKABLE
Certification: ROHS
Model Number: 15023

Payment & Shipping Terms:

Minimum Order Quantity: 100set
Price: Negotiable
Packaging Details: Carton or Wood Box
Delivery Time: 3-15D
Payment Terms: T/T, MoneyGram, Western Union
Supply Ability: 50000SET/D
Contact Now
Detailed Product Description
Material: PVC Color: GREY
Cable Structure: Bare Copper, Extra Fine Wire Conductors, Temperature: -10°C To + 80°C
Properties: Oil Resistant REEL: 100M

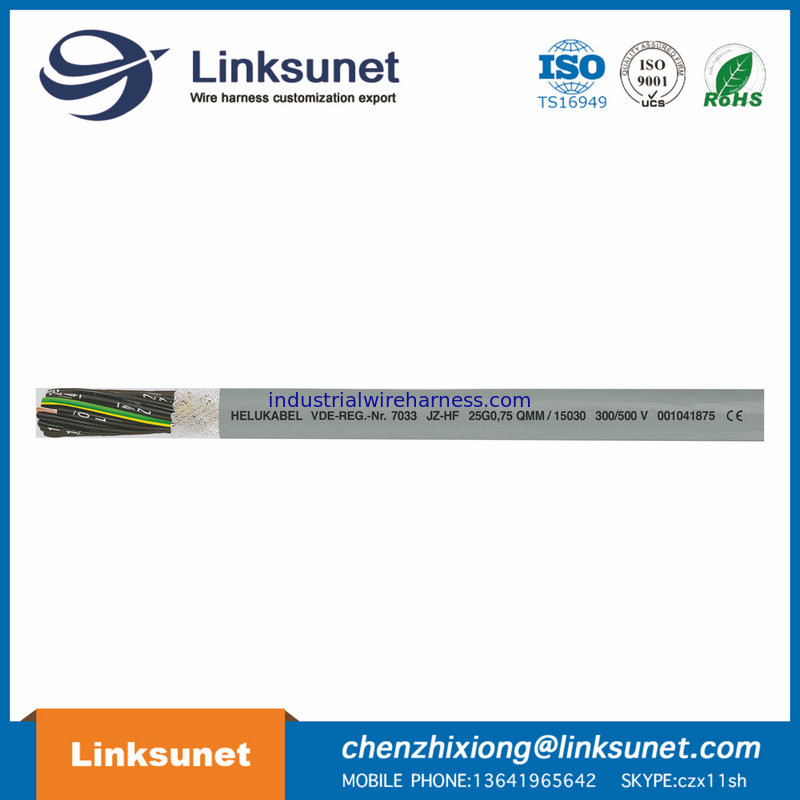

HELUKABLE  JZ-HF  control cable for drag chains,high flexible, number coded, oil resistant, meter marking



JZ-HF 7G0,75 mm² GY Part no. 15023


15023 High Flex Cable For Drag Chains Helukable JZ - HF 7 G0 , 75 Mm2 GY



Technical Data

  • Special PVC control cable , extreme
    flexibility due to special construction

  • Requirements adapted to
    DIN VDE 0285 - 525 - 2-51 /
    DIN EN 50525-2-51

  • Temperature range
    flexing - 10 °C to + 80 °C
    fixed installation - 40 °C to + 80 °C

  • Nominal voltage
    U0 / U 300/500 V

  • Test voltage
    4000 V

  • Breakdown voltage
    min . 8000 V

  • Insulation resistance
    min. 20 MOhm x km

  • Minimum bending radius
    flexing 7, 5 x cable Ø
    fixed installation 4 x cable Ø

  • Radiation resistance
    up to 80 x106 cJ / kg ( up to 80 Mrad )



Cable structure

  • Bare copper , extra fine wire conductors , to
    DIN VDE 0295 cl.6 col. 4, BS 6360 cl.6 and
    IEC 60228 cl.6

  • Core insulation of special PVC
    compound type Z 7225

  • Core identification to DIN VDE 0293
    black cores with continuous white
    numbering

  • GN-YE conductor, 3 cores and above
    in the outer layer

  • Cores stranded in layers with
    optimal lay-lenght

  • Core wrapping with fleece

  • Outer sheath of special PVC
    compound type TM5 to
    DIN VDE 0207-363-4-1/DIN EN 50363-4-1

  • Sheath colour grey (RAL 7001)

  • With meter marking

Properties

  • The materials used during manufacturing
    are cadmium-free, contain no silicone
    and are free from substances harmful
    to the wetting properties of lacquers

Tests

  • PVC self-extinguishing and flame retardant
    acc. to DIN VDE 0482-332-1-2,
    DIN EN 60332-1-2, IEC 60332-1-2
    (equivalent DIN VDE 0472 part 804
    test method B)
  • Oil resistent to DIN VDE 0473-811-404/
    DIN EN 60811-404

Application

JZ-HF cables are ideal for use in the machine tool industry, in robotics and machine production and anywhere where high flexibility is essential. These cables have shown excellent performance in combination with standard cable trays. These cables are suitable for flexible use for medium mechanical stresses with free movements. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see lead text.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.



We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
