1G , 1mm2 RD Wire And Cable Helukable LifY Single Core Part No . 15602

1G , 1mm2 RD Wire And Cable Helukable LifY Single Core Part No . 15602

1G , 1mm2 RD Wire And Cable Helukable LifY Single Core Part No . 15602

Product Details:

Place of Origin: Germany
Brand Name: HELUKABLE
Certification: ROHS
Model Number: 15602

Payment & Shipping Terms:

Minimum Order Quantity: 100set
Price: Negotiable
Packaging Details: Carton or Wood Box
Delivery Time: 3-15D
Payment Terms: T/T, MoneyGram, Western Union
Supply Ability: 50000SET/D
Contact Now
Detailed Product Description
Material: PVC Color: COLOR
Cable Structure: Bare Cu-conductors, Extra Fine Wire Temperature: -15°C To + 80°C
Properties: The Wetting REEL: 100M

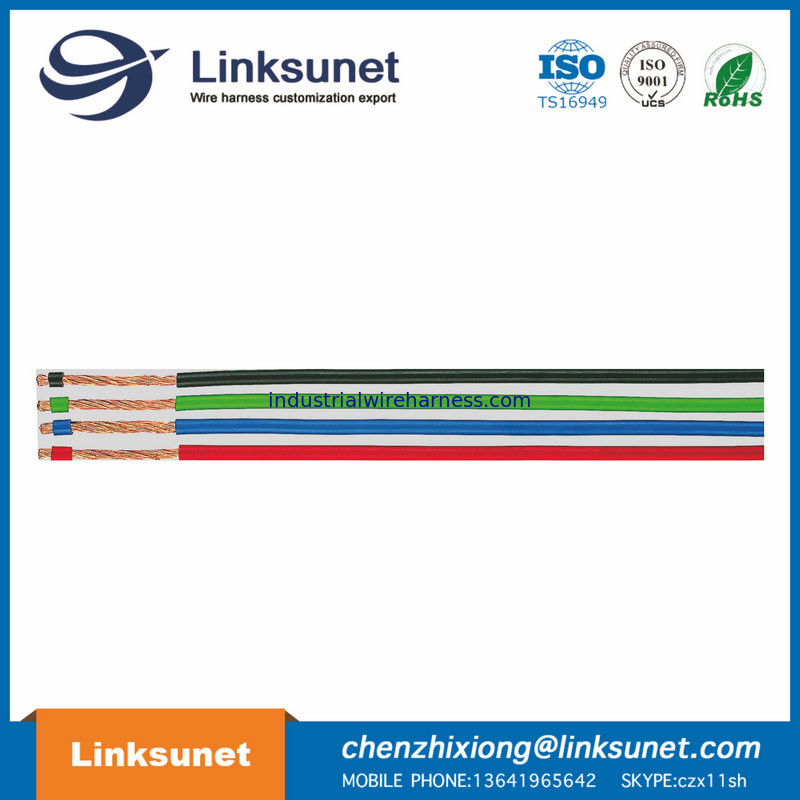

HELUKABLE  LifY Single Core extra fine wires with highest flexibility



LifY Single core 1x1 mm² RD Part no. 15602

1G , 1mm2 RD Wire And Cable Helukable LifY Single Core Part No . 15602



Technical Data

  • Special plastic stranded wire

  • by special design extremely flexible

  • adapted to DIN VDE 0250 ,
    DIN VDE 0285 - 525 - 1 / DIN EN 50525 - 1

  • Temperature range
    flexing - 15 °C to + 80 °C

  • Operating voltage
    up to 0 , 25 mm ² 300 V
    ( not for purposes of high current and power installation )

  • Nominal voltage
    0 , 5 - 1 mm ² U0 / U 300 / 500 V
    from 1 , 5 mm ² U0 / U 450 / 750 V

  • Test voltage
    up to 0 , 25 mm ² = 2 kV
    0 , 5-1 mm ² = 2,5 kV
    from 1 , 5 mm ² = 3 kV

  • Minimum bending radius
    flexing 8 x core Ø



Cable structure

  • Bare Cu-conductors, extra fine wire

  • conductor construction see table below

  • Core insulation of PVC (soft, smooth)

  • stranded specially



Properties

  • The materials used during manufacturing
    are cadmium-free, contain no silicone
    and are free from substances harmful
    to the wetting properties of lacquers

Tests

  • PVC self-extinguishing and flame retardant
    acc. to DIN VDE 0482-332-1-2,
    DIN EN 60332-1-2/IEC 60332-1 (equivalent
    DIN VDE 0472 part 804 test method B)

Application

The LifY single cores are used as super flexible insulated strand wires for switch cabinets, as measuring cable for testing, laboratories, research etc.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.



We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
